Achieve Long Service Life Battery Modules by Measuring Reaction Resistance

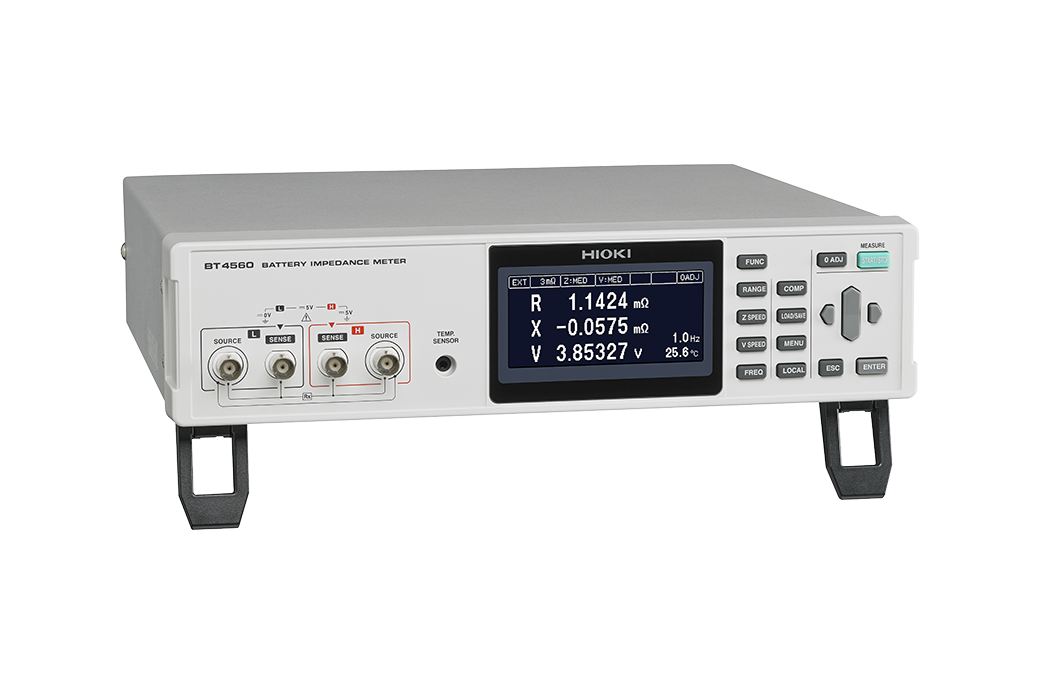

Hioki benchtop battery testers support simultaneous high-speed measurement in the ever-expanding production lines of increasingly larger lithium-ion low resistance batteries. The BT4560 battery impedance tester measures the impedance of lithium-ion batteries using the low-frequency AC-IR measurement method without charging a
battery, substantially reducing the time needed to inspect the internal resistance of battery cells.
- Set your own measurement frequency between 100 mHz and 1.05 kHz
- Use low frequencies to measure electrode reaction resistance
- Use high frequencies to measure electrolyte resistance and welding resistance
- Create Cole-Cole plots (with bundled application program)
- Use equivalent circuit analytic software to analyze internal battery defects
Cole-Cole plots of Lithium-Ion batteries can provide invaluable insights into the battery chemistry and aid in research and development. This type of analysis has often been complicated, time-consuming, and expensive. Using Hioki's BT4560 Battery Impedance Analyzer connected to your PC, you can perform a frequency sweep quickly and easily, with the results plotted in real-time.
Some high-capacity Li-ion batteries have an internal impedance less than 1 mΩ.
The BT4560 is designed to measure very low impedances of 1mΩ or less with high stability and reproducibility.
Probes with a four-terminal pair structure provide very stable measurement that is less affected by environmental noise or cabling.
| Allowable input voltage | Up to 5 V | |||||
|---|---|---|---|---|---|---|
| Measured information | Impedance, voltage, temperature | |||||
| Impedance measurement | Parameters: R, X, Z, θ, Frequency: 0.1 Hz to 1050 Hz, Measurement ranges: 3.0000 mΩ, 10.0000 mΩ, 100.000 mΩ Testing current: 3 mΩ range: 1.5 Arms, 10 mΩ range: 500 mArms, 100 mΩ range: 50 mArms |
|||||
| Voltage measurement | Measurement range: 5.00000 V (single range), Measurement time: 0.1 s (Fast) to 1.0 s (Slow) | |||||
| Temperature measurement | Range: -10.0 °C to 60.0 °C, Measurement time: 2.3 s | |||||
| Basic accuracy | Z: ±0.4% rdg. θ: ±0.1 °, V: ±0.0035% rdg. ±5 dgt. , Temperature: ±0.5 °C (at 10.0 to 40.0 °C) | |||||
| Functions | Comparator, self-calibration, sample delay, average, contact check, measurement current error, and other | |||||
| Interfaces | RS-232C/USB (virtual COM port) * Cannot be used simultaneously EXT. I/O (NPN/PNP can be switched) |
|||||
| Power supply | 100 to 240 V AC, 50/60 Hz, 80 VA max | |||||
| Dimensions and mass | 330 mm (12.99 in) W × 80 mm (3.15 in) H × 293 mm (11.54 in) D, 3.7 kg (130.5 oz) | |||||
| Included accessories | Power cord ×1, Instruction manual ×1, Zero-adjustment board ×1, USB cable (A-B type) ×1, CD-R (communication instruction manual, PC application software, USB driver) ×1 | |||||
