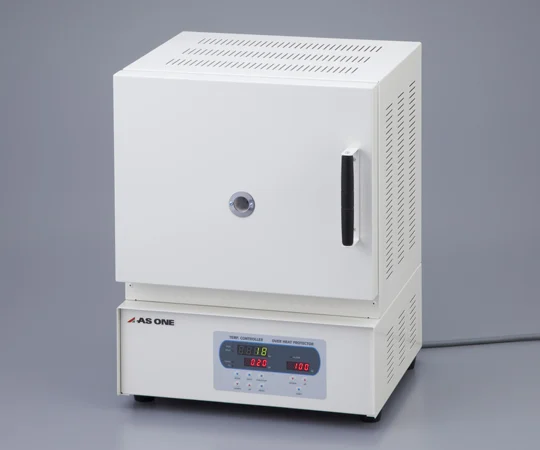

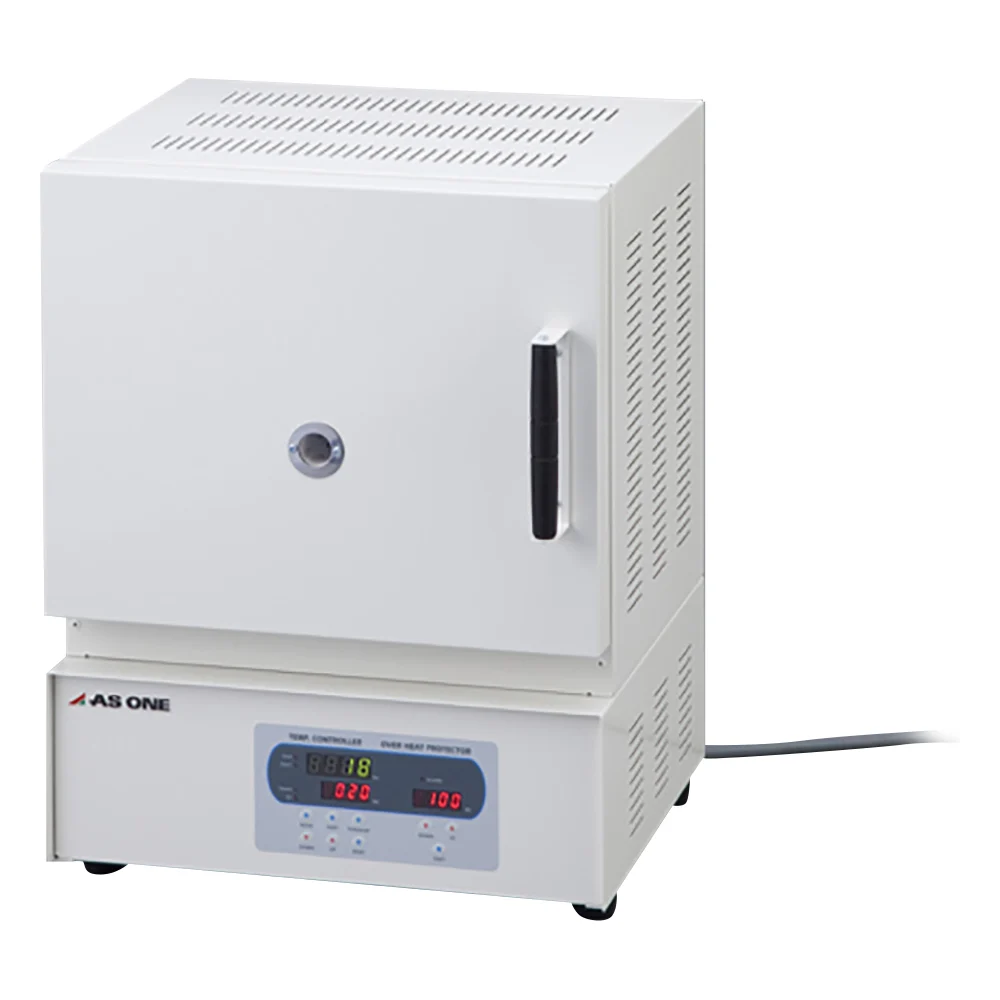

1-1646-02　Program Electric Furnace 165 x 170 x 150　SMF-2

Update Terakhir
Negara Asal
Jepang
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

Order No. 1-1646-02
Model No. SMF-2
JAN Code 4580110239539

Features

  • With a maximum temperature of 1000°C and a high temperature rise speed, it can be widely used for material testing and heat treatment.

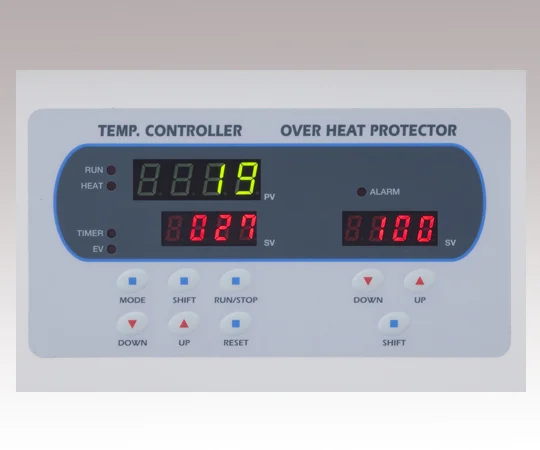

  • Up to 8 patterns of 16 step programs can be set, and the temperature rise rate can also be set.
  • In addition to the automatic over-rise prevention function linked to the set temperature, it comes with a completely independent over-rise prevention function that allows you to set any temperature.

Spec

  • Model number: SMF-2
  • External dimensions: 340 x 305 x 450mm
  • Inner dimension (mm): 170 x 170 x 150 *Including sensor protrusions
  • Temperature settings range: 100 - 1000℃ (regular use: 900℃)
  • PID control
  • Sensor: K thermocouple x 2
  • Program function: 16 steps, 8 patterns
  • Timer function: Auto-start, auto-stop, SV start, ON/OFF timer
  • Settings units: Temperature/1℃, Time/1 minute
  • Time-of-arrival of highest temperature: Approximately 45 minutes
  • Exterior: Steel coating
  • Interior: Ceramic fiber
  • Heater (4 side heater up and down, left and right): 1200W
  • Safety device: Independent excessive rise prevention function, overcurrent breaker, burnout mechanism (heater is OFF when sensor is disconnected)
  • Power supply: 100VAC 50/60Hz
  • Power cord length: 2m (3P plug)
  • Weight: Approx 20kg
  • RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]

‘
‘
‘
