| Order No. |
1-3348-01 |
| Model No. |
BM-322 |
| JAN Code |
4560111738804 |
Spec

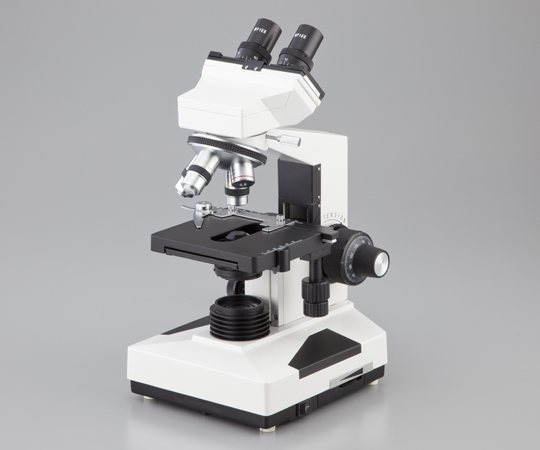

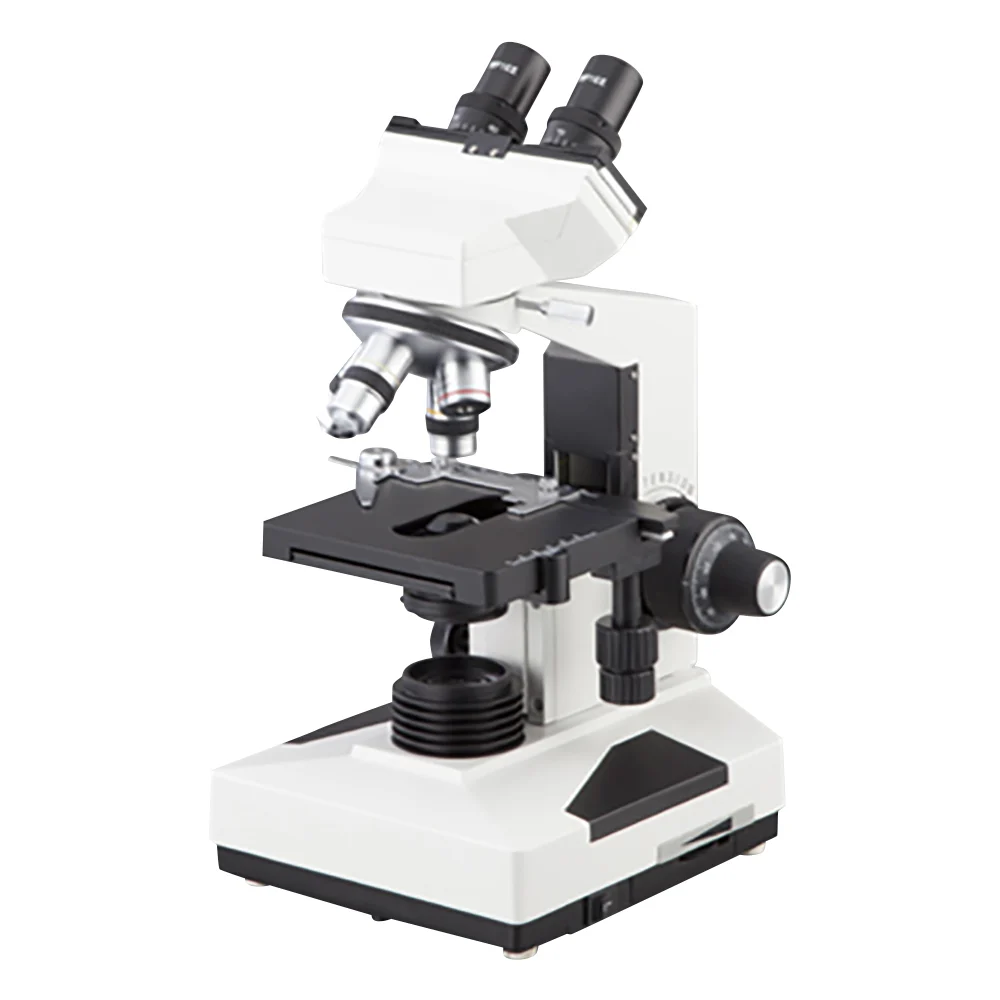

- Model number: BM-322
- Eye lens: WF 10 × (Number of fields 18)
- Objective lens: Acromat 4 × 10 × S 40 × S 100 × (oil)
- The lens barrel type: the binocular head and the tilt angle of 30 °
- Focal adjustment: uniaxial coarse fine motion (With static and tension control), stroke / 2 μm (front and back)
- Stage: 124 x 140 mm (Front and rear movement 50 mm x left and right movement 75 mm)
- Eye width range: 55 to 75 mm
- Lighting: 20 W halogen light (Adjustable light quantity)
- Capacitor: Abbey N.A. 1.25 iris aperture and filter holder
- power supply: AC100V
- Size: approx. 187 x 231 x 385 mm
- Weight: About 5.3 kg
- overall magnification: 40 x to 1000 x

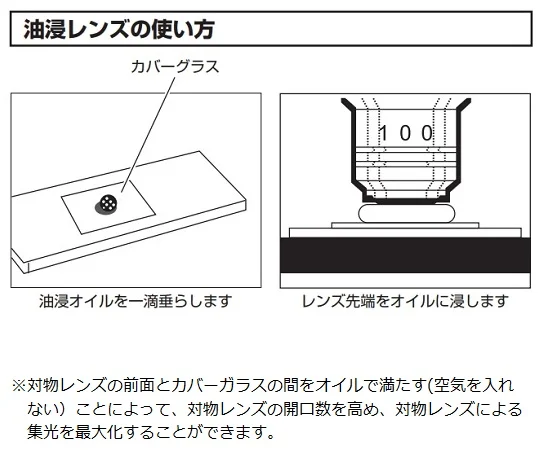

- * The oil immersion oil is required when using S 100.
‘
‘
‘
