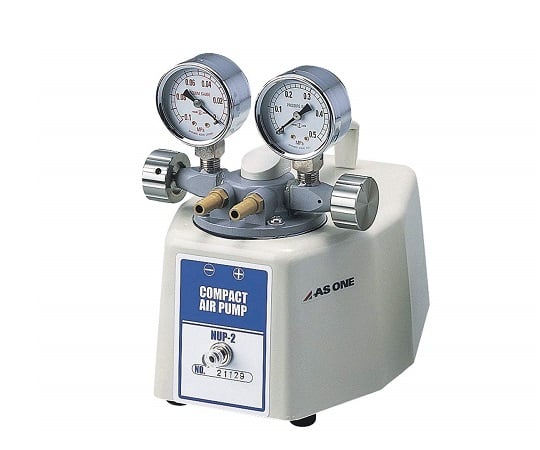

1-361-02　Compact Air Pump Suction-Discharge Convertible Type　NUP-2

Update Terakhir
Negara Asal
Jepang
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

Order No. 1-361-02
Model No. NUP-2
JAN Code 4580110235210

Features

  • There is no oil component, oil odor or contamination.
  • No need to use oil or carbon.
  • Comes with motor burn protection.
  • There is no backflow.
  • Compact size for space-saving use.

Spec

  • Model number: NUP-2
  • Discharge air volume: 12L/min

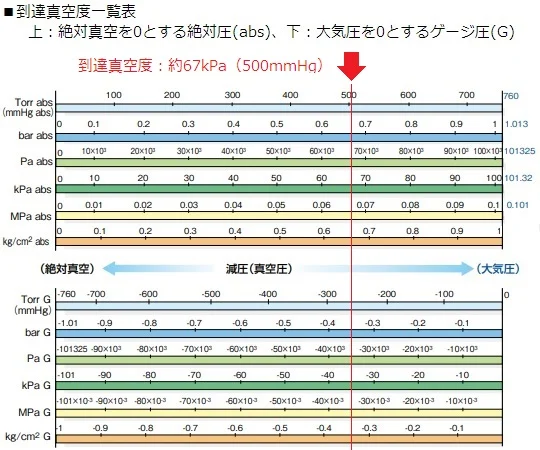

  • Achieving vacuum degree: About 67kPa (500mmHg)
  • Highest pressure: About 0.20Pa (2.0kg/cm2)
  • Motor: Condenser type, 25W
  • Pump type: Diaphragm structure
  • Gas contact unit material: Brass (Teflon coating)
  • Intake, exhaust connection port outer diameter: φ9mm
  • Power supply: 100VAC 50/60Hz
  • For both discharge and suction
  • Size: 250 x 150 x 230mm
  • Weight: 3.7kg
  • Accessories: 7mm tube (2m)
  • *Gauge is included in the package.

‘
‘
‘
