Deskripsi produk

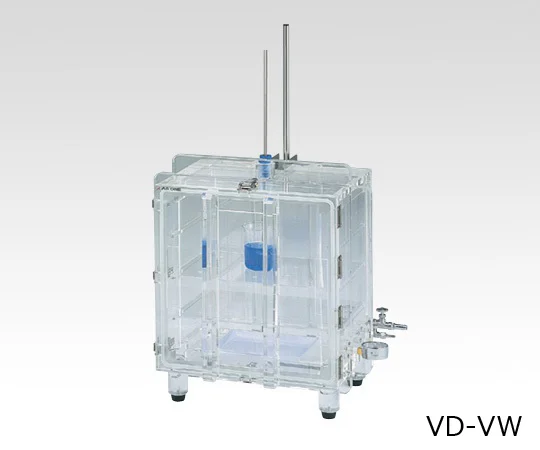

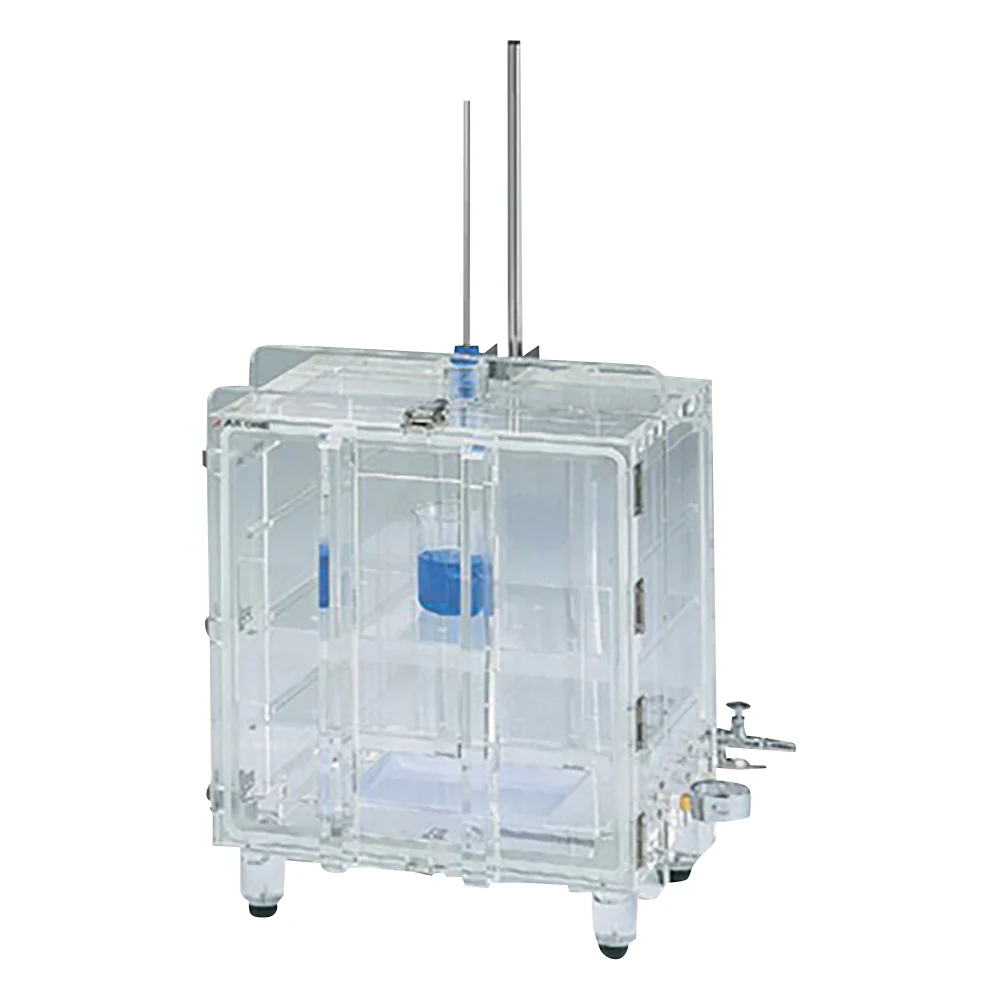

Order No. 1-4211-03
Model No. VD-VW
JAN Code 4560111767408

Features

  • Bubbles contained in the sample can be easily defoamed by stirring in a vacuum environment.
  • The body is made of transparent acrylic, so you can easily observe the inside during the experiment.

Spec

  • Model number: VD-VW
  • External dimension (excluding projections): 550 x 452 x 590mm
  • Internal dimensions: 400 x 300 x 400mm
  • Material: Body/Transparent PMMA (acrylic), Valve, vacuum gauge mounting portion/PC (polycarbonate)
  • Capacity: 48L
  • Plate thickness: 25mm
  • Number of shelf boards: 3 stages
  • Decompression tolerance: 1Torr (approx 133Pa)
  • Vacuum valve: Small/outer diameter φ8mm hose nipple, Large/outer diameter φ14mm hose nipple
  • Weight: 36kg
  • Accessories: φ8mm vacuum seal for stirring rod, strut for mounting agitator (φ16mm)
  • Recommended vacuum pump: 1-672-07 oil-sealed rotary vacuum pump G-50SA
  • *Clamp and agitator are not included in the package. *This is a tornado agitator device.

‘
‘
‘
