Deskripsi produk

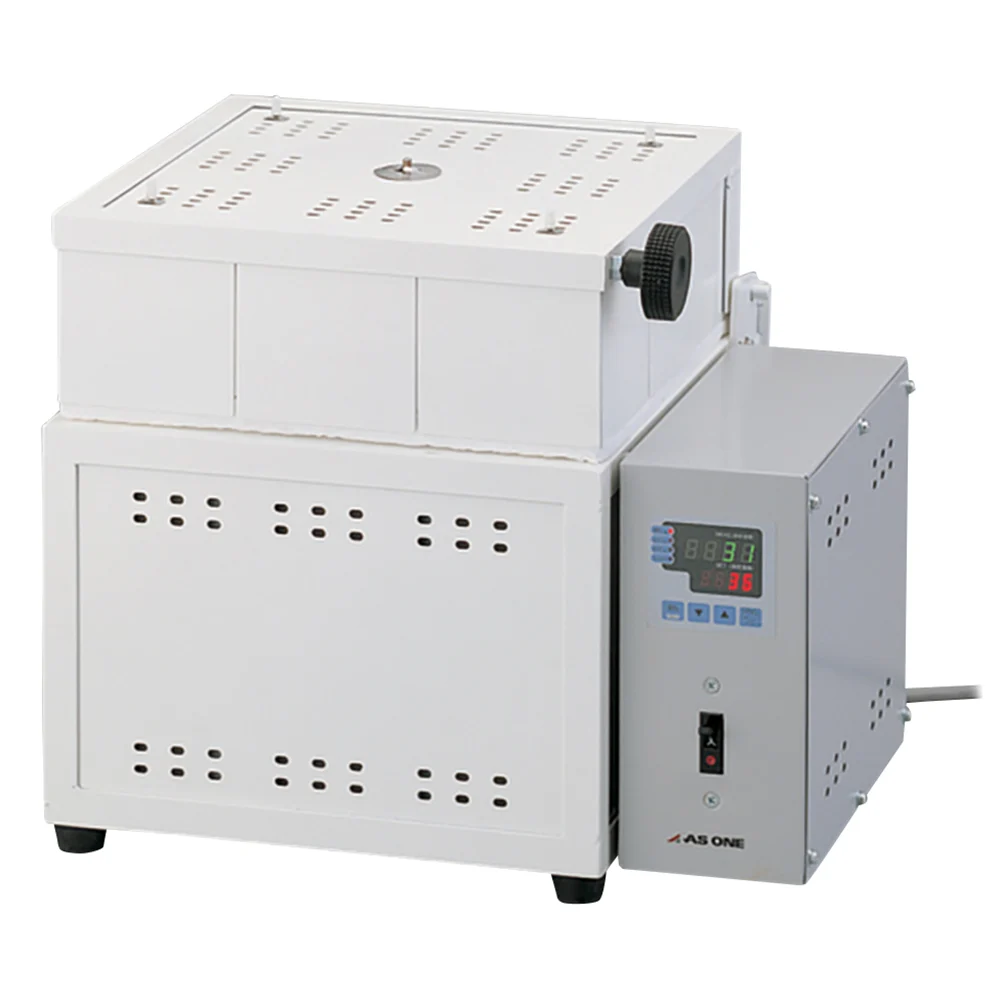

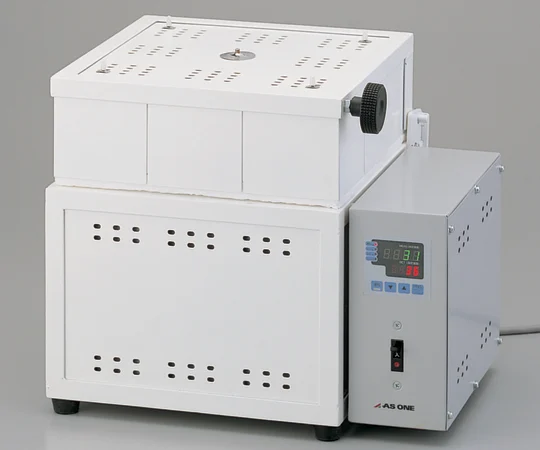

Order No. 1-5929-01
Model No. RMF-100
JAN Code 4580110239683

Features

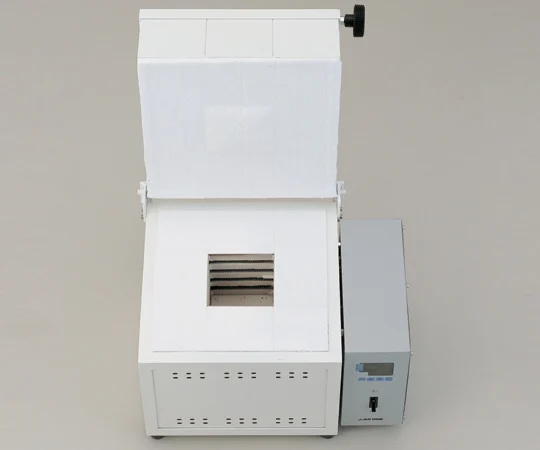

  • The top opening/closing type makes it easy to take the crucible in and out.
  • Since a wide range of temperature settings is possible, it can be used for testing materials (metals and inorganic compounds) and heat treatment.
  • The temperature rise speed is fast and the maximum temperature (1200°C) can be reached in 20 minutes.
  • Up to 4 patterns of 16 step programs can be set, and the temperature rise rate can also be set.

Spec

  • Model number: RMF-100
  • External dimensions: 440 x 345 x 373mm
  • Inner furnace dimension (mm): 100 x 100 x 100 *Including protrusions. Please see the drawings for more details.
  • Temperature settings range: 100 - 1200℃
  • Temperature setting resolution: 1℃
  • Normal maximum temperature: 1200℃
  • Temperature adjustment system: PID control SSR output
  • Sensor: R class thermocouple
  • Heater capacity: KANTHAL heater 4 sides (all sides), total 1400W
  • Program function: 16 steps, 4 patterns
  • Time settings range: 0 minutes - 99 hours 59 minutes (1 minute unit)
  • Safety mechanism: Sensor abnormality detection, set temperature interlocking type excessive rise prevention relay, no fuse breaker
  • Material: Exterior, furnace body/fireproof insulation material
  • Power supply: 100VAC 50/60Hz approx 14A
  • Power cord length: 2m (3P plug)
  • Weight: Approx 20kg
  • Program type

‘
‘
‘
