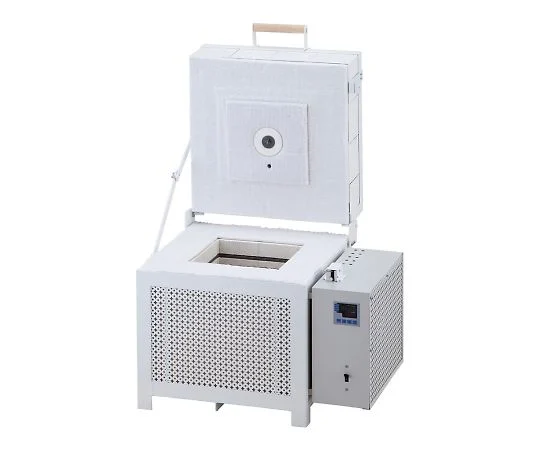

1-5929-02　Programmed Crucible Furnace　RMF-250

Update Terakhir
Negara Asal
Jepang
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

Order No. 1-5929-02
Model No. RMF-250
JAN Code 4589638361012

Features

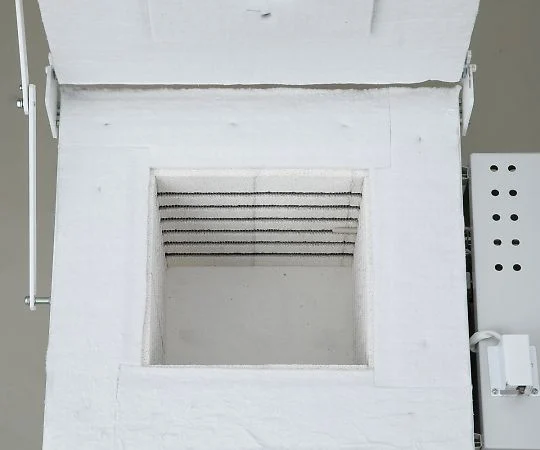

  • It has an upper opening and closing type for easy insertion and removal of the crucible.
  • Since a wide range of temperature settings are possible, it can be used for material (metal and inorganic compounds) testing, heat treatment, etc.
  • The temperature rises quickly, reaching the maximum temperature (1200 degrees Celsius) in about 50 minutes.
  • Up to 4 patterns of 16 step programs can be set, and the temperature rise rate can also be set.
  • Upper door type for easy access

Spec

  • external dimension (mm) : 625 x 560 x 575
  • Furnace inner size (mm): 240 x 240 x 230
  • temperature settings range: 100 to 1200 ° C
  • Temperature Setting resolution: 1 ° C
  • Maximum Service Temperature: 1200 ° C
  • Temperature Control Method: PID Control SSR Output
  • sensors: R class thermocouple
  • Heater capacity: 4 sides of canthal heater (all sides) Total 3000 W
  • Program function: 16 steps, 4 patterns
  • Time setting range: 0 minutes to 99 hours 59 minutes (1 Minute Units)
  • inner capacity: about 13.2 L
  • Safety Mechanism: Sensor Abnormality Detection/Temperature Setting Linked Excess Temperature Rise Prevention Relay/No-Fuse Breaker
  • material: Exterior/Furnace/Fireproof Insulation
  • power supply 200 VAC 50/60 Hz
  • power cord length : 2 m (3P Plug)
  • Plug Shape: RMF -100 /, RMF -250 /
  • Weight: about 46 kg
  • *Furnace inner size includes sensor prongs.
  • *Shipping, delivery, installation and assembly costs are required separately. Please contact us.

‘
‘
‘
