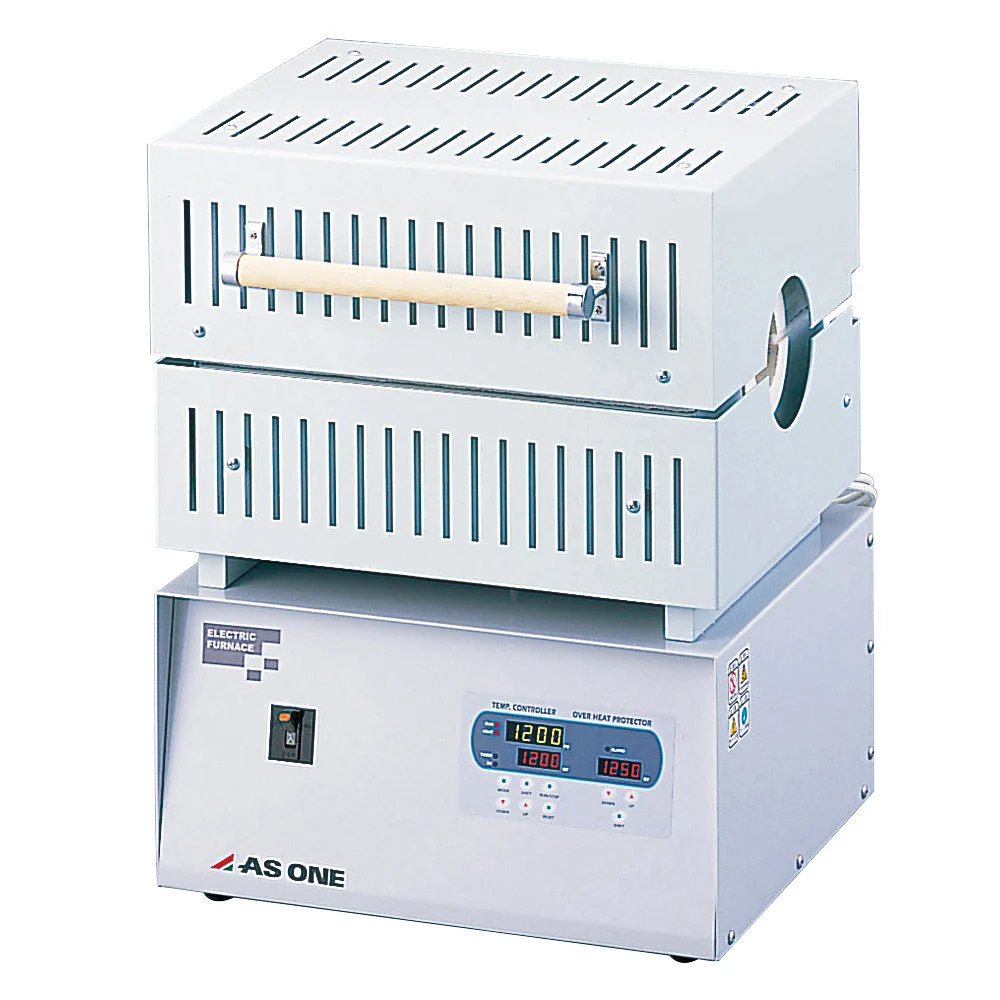

1-7555-21　TMF-300N Program Tubular Electric Furnace　TMF-300N

Update Terakhir
Negara Asal
Jepang
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

Order No. 1-7555-21
Model No. TMF-300N
JAN Code 4580110239805

Features

  • Normal maximum temperature is 1200°C and the temperature is increased rapidly.
  • Using a core tube and gas replacement unit allows heating in an inert environment.
  • You can choose the material of the core tube according to the application.
  • In addition to the automatic overtemperature prevention function linked to the set temperature, it also has a completely independent overtemperature prevention function and a burnout function to detect sensor abnormalities.
  • It has a safety function to cut off the power to the heater when the door is opened.

Spec

  • Model number: TMF-300N
  • Control system: PID control, SSR output
  • Inner furnace dimension (mm): 30 x 300
  • Temperature settings range: 100 - 1200℃
  • Sensor: R thermocouple x 2
  • Function: Program setting (16 steps, 8 patterns), timer
  • Safety device: Independent excessive rise prevention function (set temperature digital input), door switch, electrical leakage breaker, self-diagnosis function (main relay is OFF when sensor is disconnected or heater is disconnected)
  • Exterior/furnace material: Steel heat-resistant coating/refractory brick
  • Heater capacity: 1200W
  • Power supply: 100VAC 50/60Hz 12A
  • Power cord length: 2m (2P plug)
  • Weight: Approx 38kg
  • External dimensions: 395 x 350 x 488mm
  • *Furnace core tube is not included in the package.

‘
‘
‘
