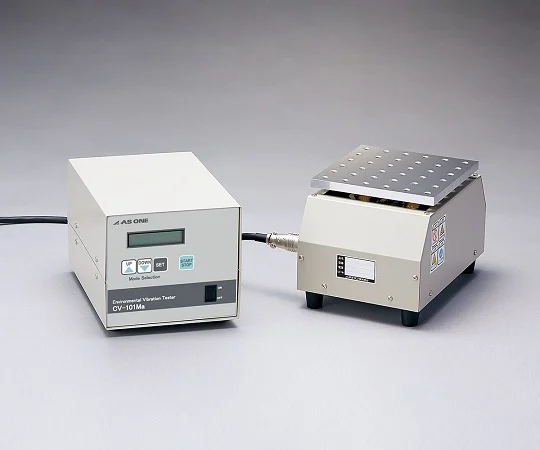

1-7593-21　Tabletop vibration testing machine　CV-101Ma

Update Terakhir
Negara Asal
Jepang
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

Order No. 1-7593-21
Model No. CV-101Ma
JAN Code 4589638436246

Features

  • The vibration table is designed to vibrate at the desired frequency and acceleration for easy vibration testing.
  • Two modes of operation are available: constant frequency mode and sweep mode.
  • In constant frequency mode, vibrations are continuously applied at the set acceleration and frequency for a fixed time, and the machine stops automatically.
  • In the sweep mode, the acceleration is fixed and reciprocating motion (cycle) at the lowest to highest frequency is repeated, and the automatic stop occurs after a certain time.

Spec

  • Maximum load of the object (kg): 1
  • Specifications: Control + Drive
  • Maximum amplitude: 5.0 mm (single peak)
  • Number of pieces: 1
  • Vibration frequency: 10 ~ 300 Hz
  • Operating mode: Constant frequency mode/Swept mode
  • Program running time: 1 to 99 minutes (minute increments: 1 minute)
  • Maximum acceleration: 2G (Limited to amplitude.)
  • Power supply: 100 VAC 50/60 Hz
  • Power consumption: 200 W
  • Sizes: control box/152 x 227 x 143 mm, actuator/220 x 150 x 137 mm
  • Weight: control box/1.6 kg, actuator/12 kg
  • *The maximum amplitude is 10 mm (+/- 5 mm) but is limited by the load on the payload.
  • *A maximum load of 1 kg does not result in a maximum acceleration of 2 G and a maximum amplitude of 5.0 mm.
  • *It is recommended to use the attachment sold separately when conducting the XYZ triaxial vibration test.

‘
‘
‘
