Deskripsi produk

Spec

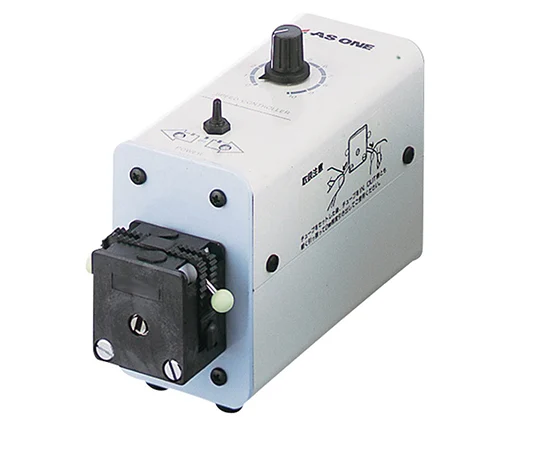

• Model number: SMP-21AS
• Flow rate range: 9 - 160mL/h (inner diameter 1.15 x outer diameter 3.2mm tube), 30 - 507mL/h (inner diameter 2.15 x outer diameter 4.2mm tube), 51 - 900mL/h (inner diameter 3.15 x outer diameter 5.2mm tube)
• Flow rate accuracy: Within ±2% (repeatability within ±1%)
• Discharge pressure: Max.196kPa (2.0kg/cm2)
• Usage solution viscosity, usage solution temperature: Max.2Pa・s (2000cP), -10 - 100℃ (Tygon (R) tube 0 - 70℃) (ice formation unavailable)
• Rotational speed: Continuous variable 2 - 36rpm function/
• Rotation Control: Feedback control
• Rotation setting: Volume setting
• Liquid feed direction: Forward/reverse switching available configuration/
• Motor: Induction motor output 2W
• Tube case: 1 piece (PPS resin) standards/
• Number of tube: 1 volume/1 stage
• Available tube material: Silicone, PharMed (R), Tygon (R), Fluran (R)
• Available tube diameter: Inner diameter 1.15 x Outer diameter 3.2mm, Inner diameter 2.15 x Outer diameter 4.2mm, Inner diameter 3.15 x Outer diameter 5.2mm other/
• Ambient temperature range: -5 - 35℃
• Outer dimension (mm), mass: 73W x 188D x 121 (144) H, 2.5kg
• Power Input, rated power supply: 0.1A, 10VA, AC100V 50/60Hz
• Attached tube: Tygon (R) tube inner diameter 1.15 x outer diameter 3.2mm, Inner diameter 2.15 x Outer diameter 4.2mm, Inner diameter 3.15 x outer diameter 5.2mm 1.5m each *Performance is the value of the room temperature 25℃, rated power voltage, water, liquid temperature 21℃, back pressure 0, Silicone tube. *Performance such as flow rate and discharge pressure may slightly vary depending on the tube to use. *Discharge quantity can be decreased if the usage solution viscosity exceeds 0.1Pa・s (100cP). *Dimensions in () include protrusions.

‘
‘
‘
