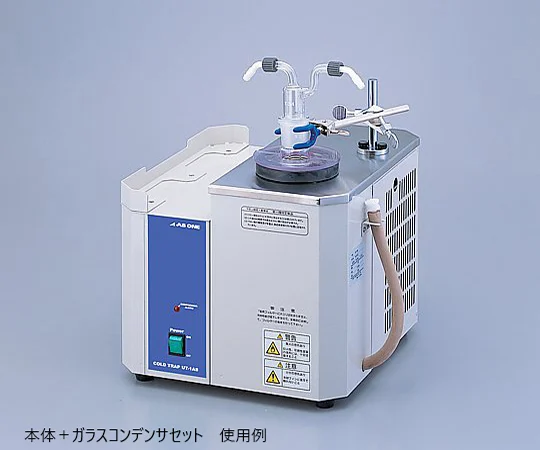

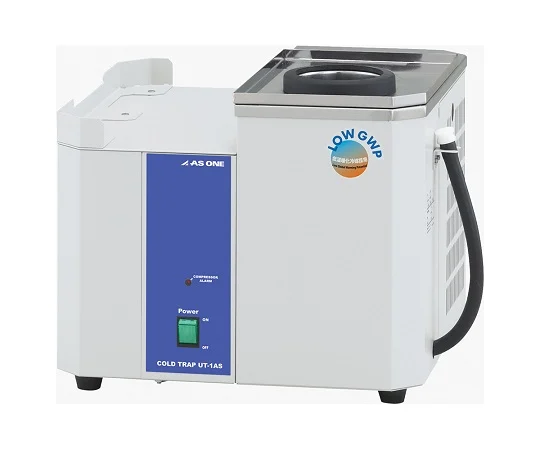

2-8101-01　Desktop Cooling Trap　UT-1AS

Update Terakhir
Negara Asal
Jepang
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

Order No. 2-8101-01
Model No. UT-1AS
JAN Code 4580110238334

Features

  • Uses temperature difference to efficiently collect harmful vapors
  • Easy to use in both English and Japanese.
  • Uses temperature difference to efficiently collect harmful vapor.
  • Increase solvent recovery in concentrators and dryers.
  • The larger the temperature difference between the boiling point under the pressure of the solvent and the collecting part, the more the vapor can be flocculated and collected and the higher the recovery efficiency.
  • Uses R452A, a low-warming refrigerant. (GWP value: 1,945)

Spec

  • Trap method: Direct trap by can body cooling method, glass condenser
  • Performance: Dehumidification capacity/MAX 0.5kg (water), Minimum achieving temperature/-50℃
  • Safety mechanism Leakage/overcurrent breaker, frozen machine overload relay, frozen machine high-pressure switch
  • Configuration: Frozen machine, refrigerant/air cooling type, output R507A 400W, Service outlet/MAX 4A (for diaphragm pump)
  • Chamber dimensions/capacity: Inner diameter 90 x Depth 225mm/approximately 1.4L
  • Ambient temperature range: -5 - 35℃
  • External dimensions: 300 x 370 x 317mm
  • Weight: Approx 32kg
  • Power input: 6A 600VA
  • Rated power supply: 100VAC 50/60Hz (*Performance indicates the value when the room temperature is 20℃, rated power voltage 50Hz, ethanol 1.3L, lid attached. *This product cannot be used as a frozen dryer. )
  • Model number: UT-1AS

‘
‘
‘
