Deskripsi produk

Order No. 2-928-01
Model No. AVRI-30
JAN Code 4571110727881

Features

  • A standard type with full functions and options.
  • A compact two-stage vacuum pump with excellent durability that can be used in a wide range of applications.
  • A gas ballast valve is included to prevent contamination by oil condensable gas and moisture.
  • The backflow prevention solenoid valve prevents backflow of oil when the power is turned off.

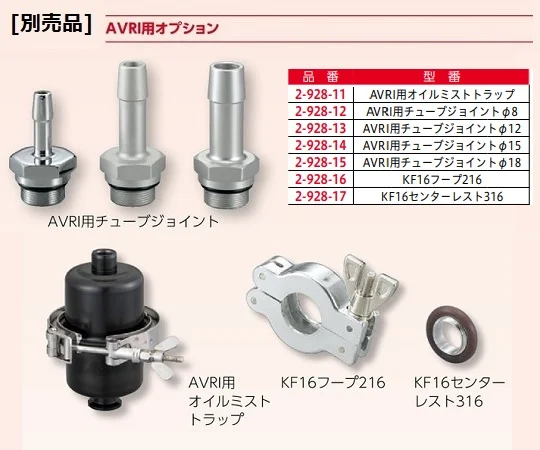

  • Optional oil mist trap connection.
  • You can optionally choose a wide range of tube joints to suit your vacuum line.

Spec

  • Ultimate pressure (with gas ballast valve closed): 3.5Pa (2.6 x 10^-2Torr)
  • Ultimate pressure (with gas ballast valve opened): 10Pa (7.5 x 10^-2Torr)
  • Inlet port: φ15mm
  • Exhaust opening: KF16
  • Oil volume: 0.2L
  • Ambient temperature range: 5 - 40℃
  • Noise: 62dB or less
  • Size: 318 x 124 x 234mm
  • Power supply: 100VAC 50/60Hz
  • Power cord length: 1.5m (3P plug)
  • Weight: 9kg
  • Exhaust speed (L/min): 30/36 (50/60Hz)
  • Type: 2 stage type
  • 2 stage type, standard
  • Model number: AVRI-30

‘
‘
‘
