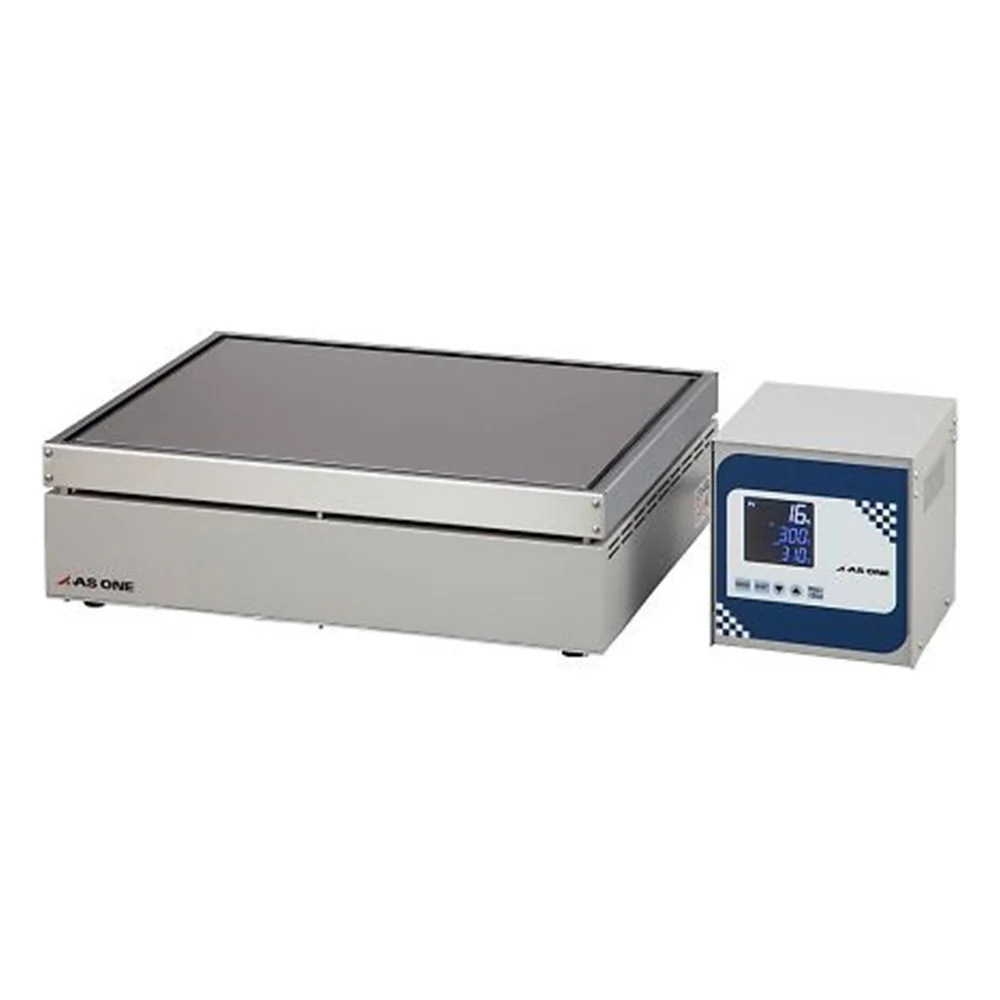

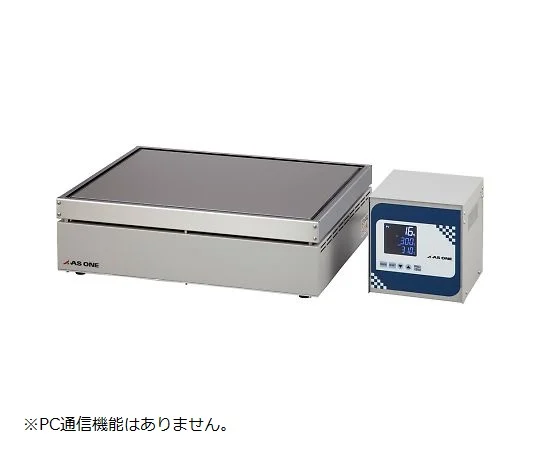

4-2546-01　EC Hot Plate (External sensor support) Main Unit　EC-1200N2

Update Terakhir
Negara Asal
Jepang
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

Order No. 4-2546-01
Model No. EC-1200N2
JAN Code 4589638353369

Features

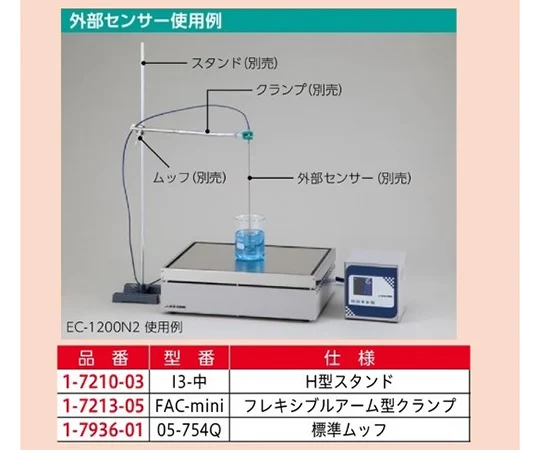

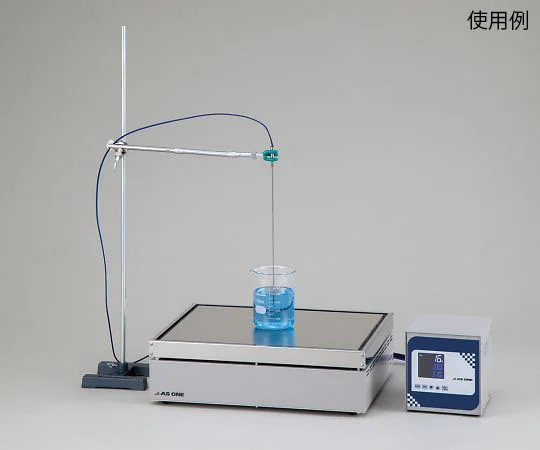

  • By installing a separate sensor, it is possible to control the object on the plate while measuring it.
  • Equipped with digital setting type over temperature rise prevention, the over temperature rise prevention temperature can be optionally set.

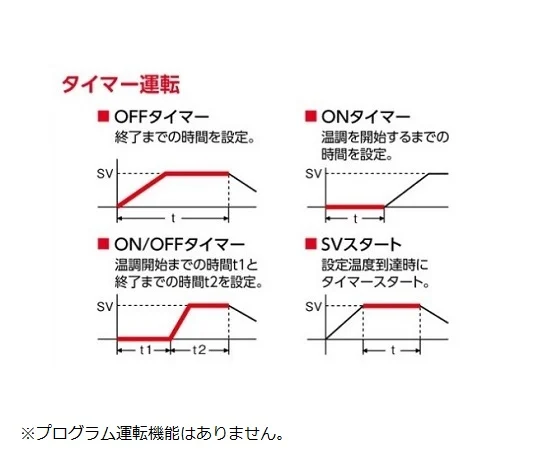

  • There are four types of timers (ON timer, OFF timer, ON/OFF timer, SV start).

Spec

  • Specifications: Body
  • Maximum temperature (degrees C): 300
  • Plate Size (mm): 412 x 312
  • Temperature Control Method: PID Control
  • power supply : AC100V 50/60 Hz max . 1 kW
  • power cord : 1.8 m (3P Plug)
  • Controller Size: 152 x 183 x 168 mm
  • Plate material - Aluminum
  • Weight: about 11 kg
  • Load tolerance : about 15 kg (Distributed Load on 80% Plate Area)
  • Safety Function: Digital Setting Type Excess Temperature Rise Prevention Function, Overcurrent Fuse, Burnout Mechanism

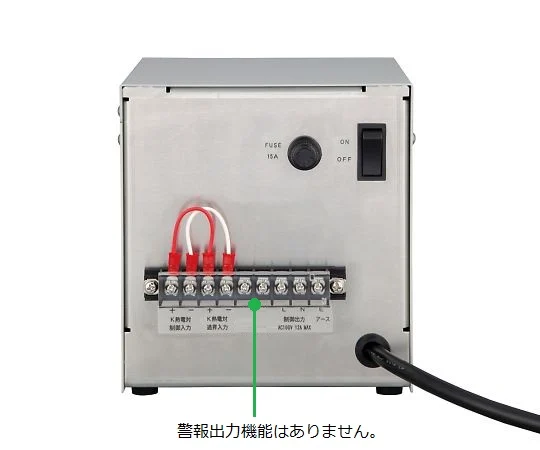

  • connecting terminals: M3.5 terminal strips

‘
‘
‘
