Deskripsi produk

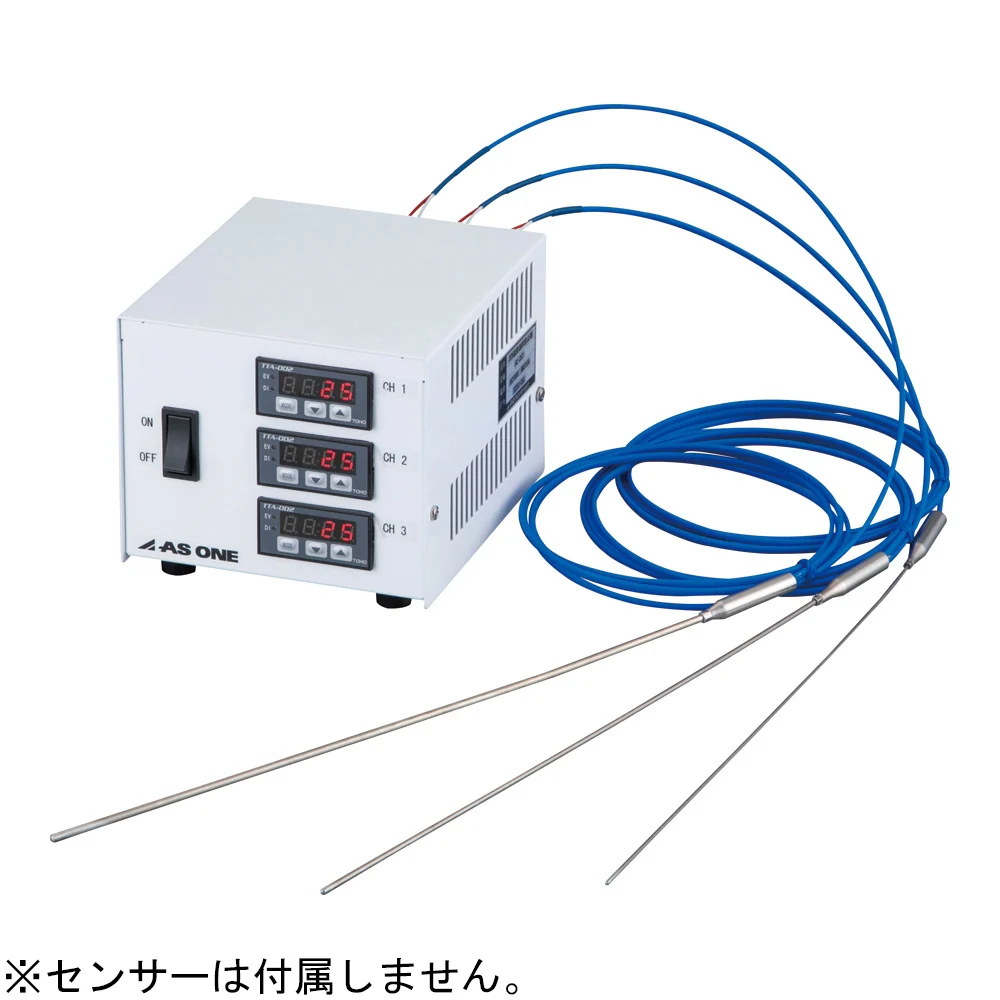

Order No. 4-3758-01
Model No. AL-3ST
JAN Code 4582619637038

Features

  • It is a simple overclimb prevention device.

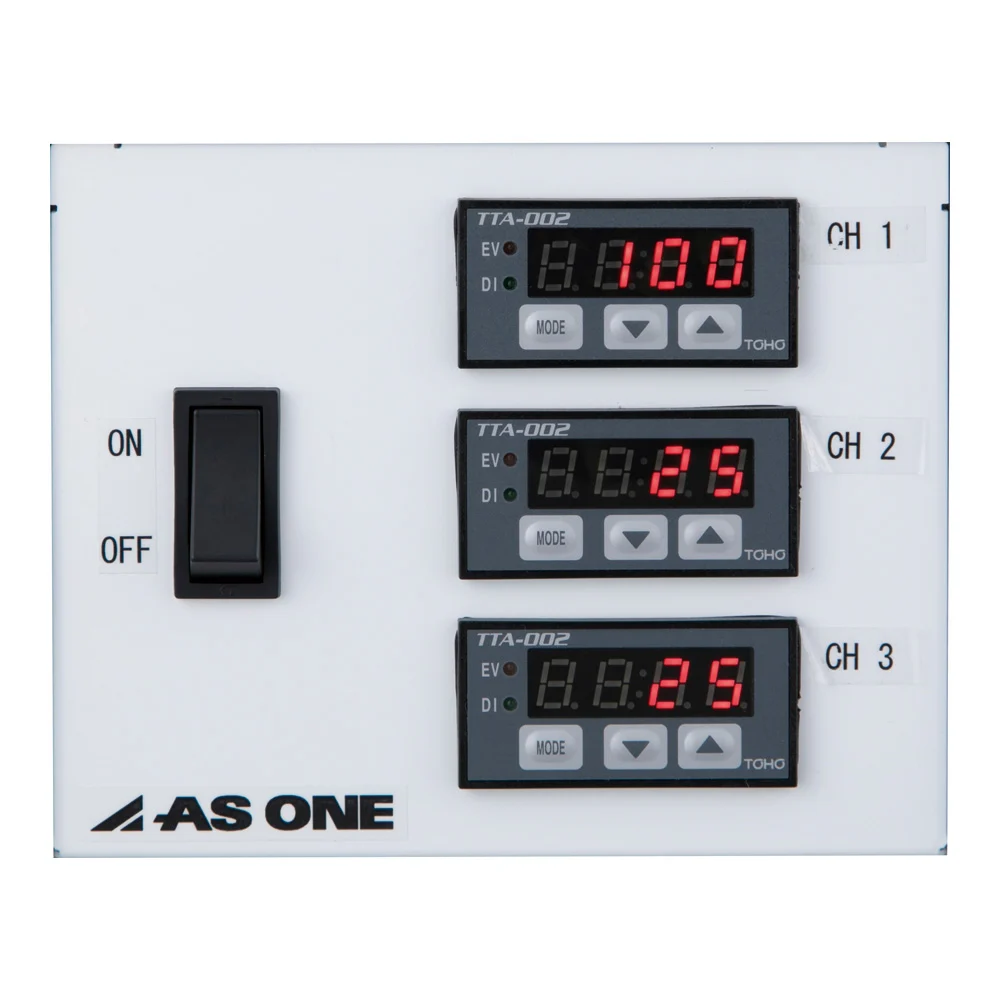

  • The current temperature and the overtemperature setting are alternately displayed.
  • One device can connect three sensors.

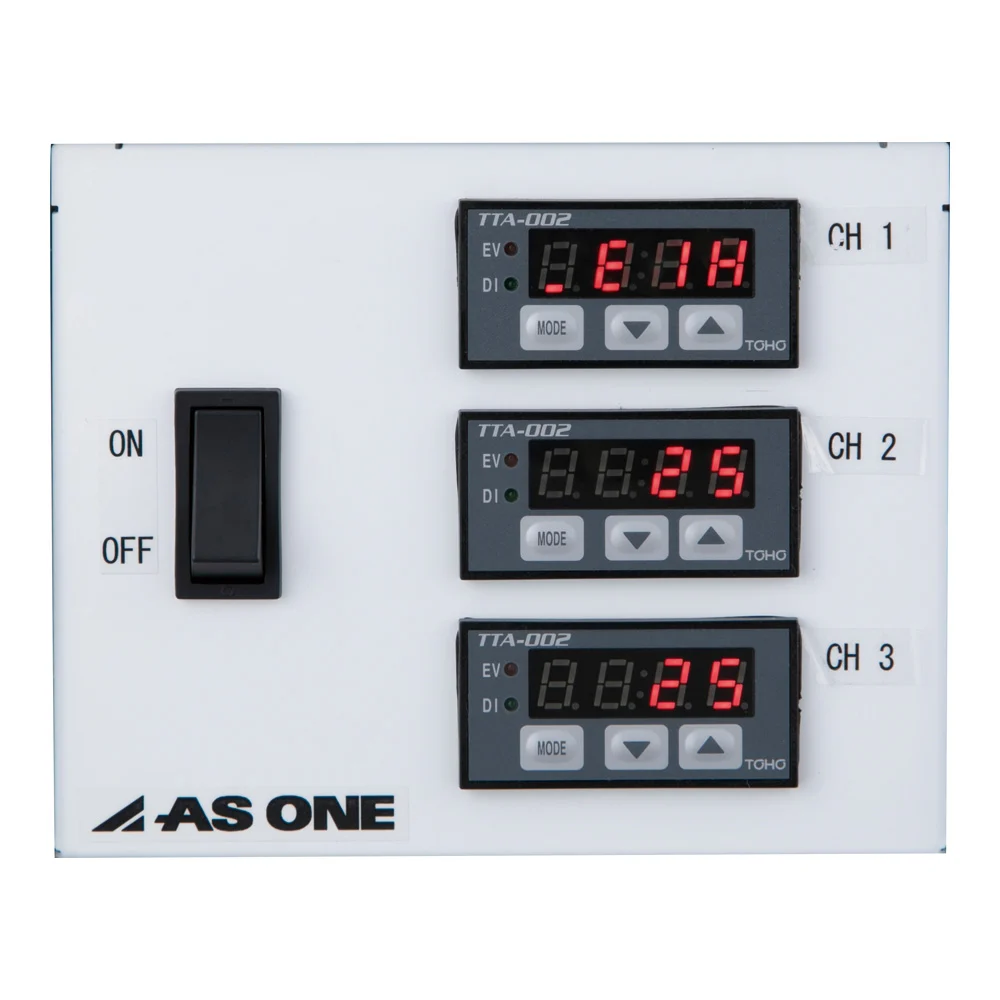

  • If one sensor fails (over the overtemperature setting), the output stops.
  • The three sensors can be set independently.

Spec

  • Size (mm): 130 x 169 x 111
  • Weight (kg): 1.2
  • Number of pieces: 1
  • Temperature setting range: -100 to + 1000 degrees C
  • Sensor: K thermocouple
  • Labeling system: +/- (0.5% + 1 digit) of the indicated value or +/- 3 degrees C, whichever is greater
  • Power supply: 100 VAC 50/60 Hz
  • Capacity: MAX 15 A
  • Safety device: 20 A fuse
  • Power cord: approx. 2 m (3P plug)
  • Output control method: Relay contact output

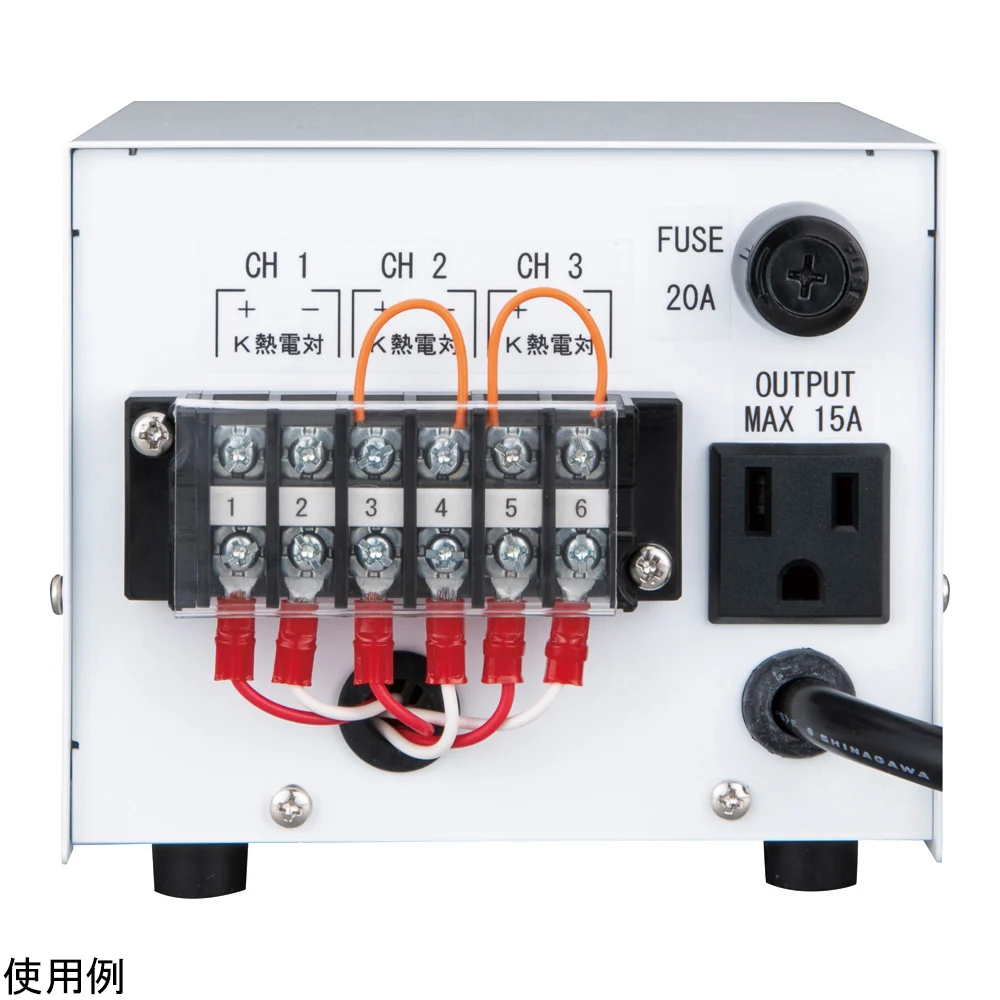

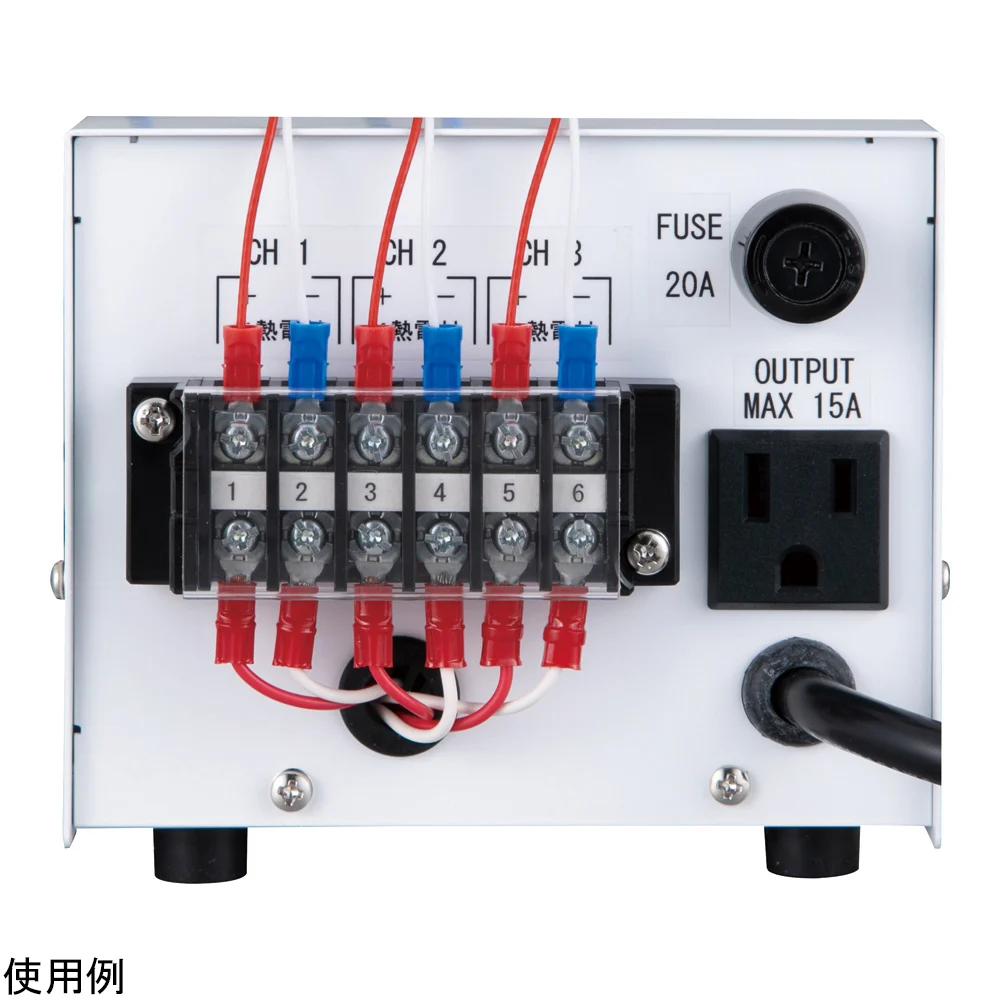

  • Connection terminal: M 3.5 terminal block
  • *It doesn't come with a sensor. Please prepare it separately.

‘
‘
‘
