Deskripsi produk

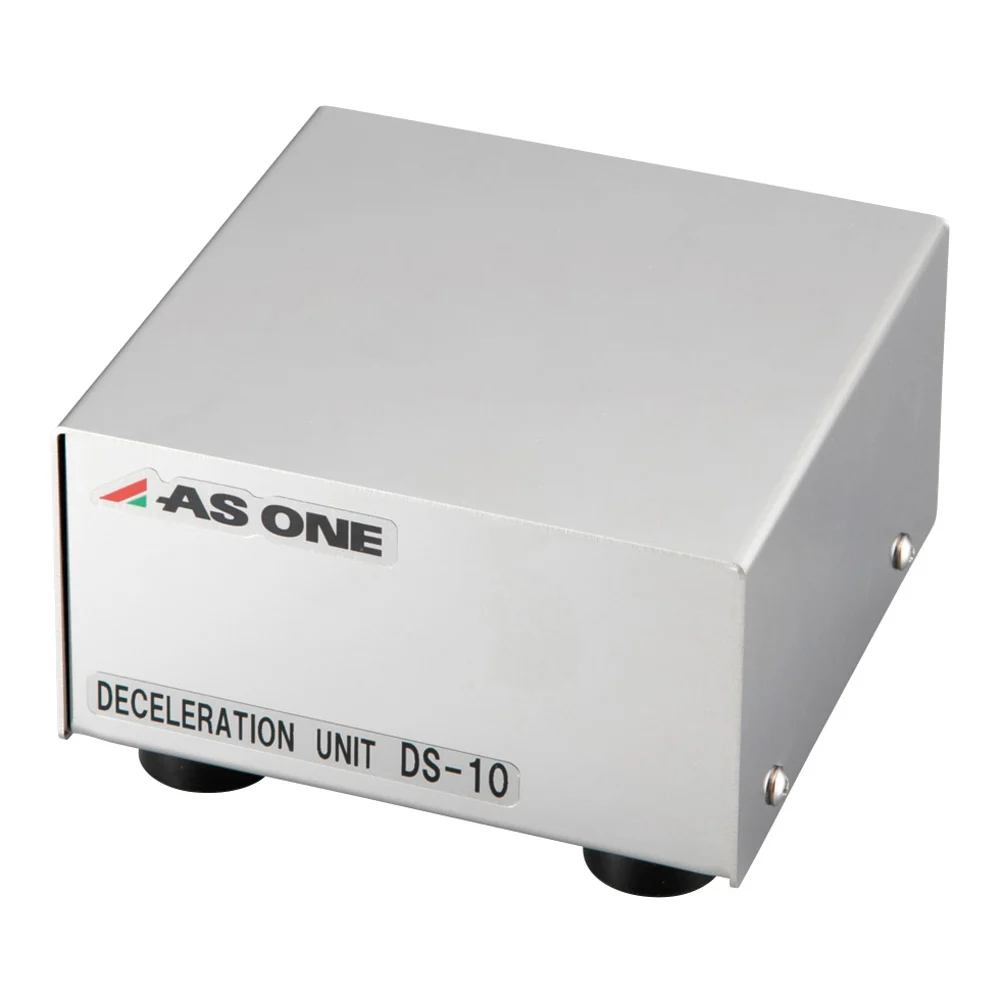

Order No. 4-3991-01
Model No. DS-10
JAN Code 4582619634228

Features

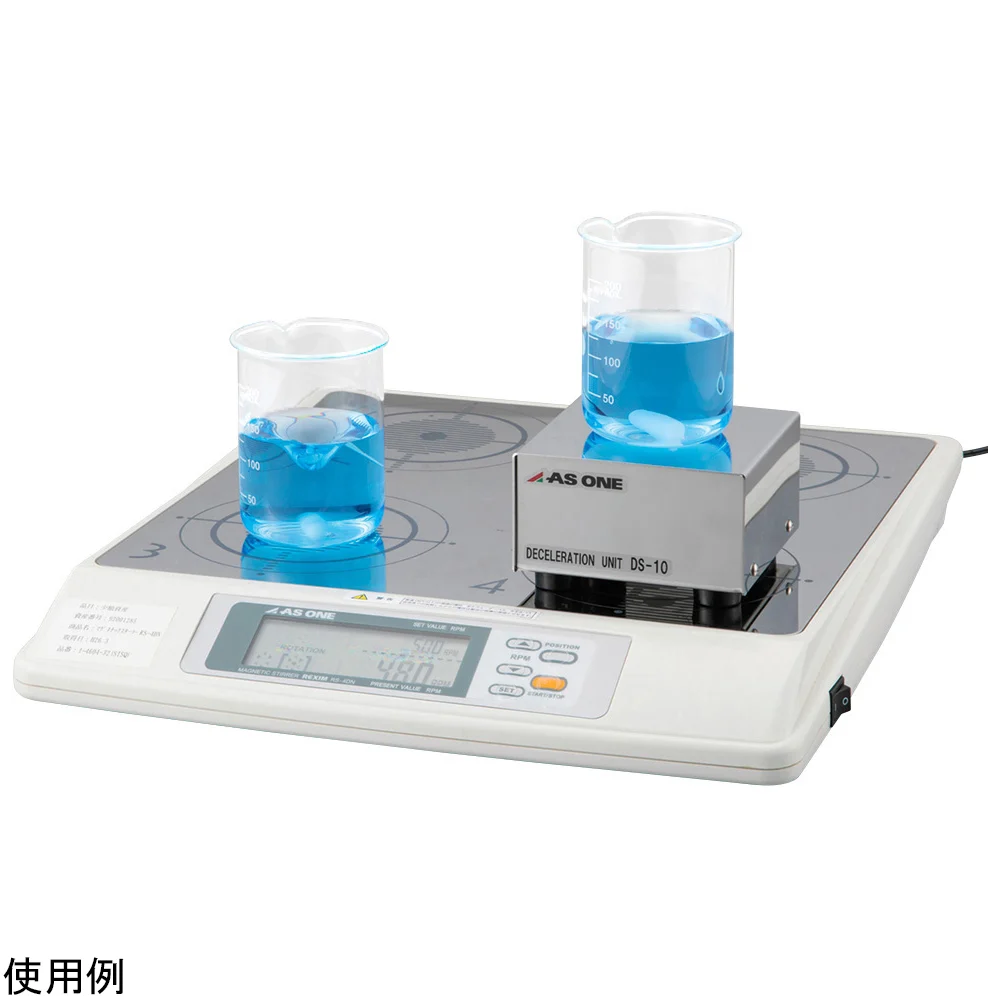

  • Just place it on top of a magnetic stirrer and it can slow down by 1/10 (a ratio of 1/10). *The direction of rotation is reversed.

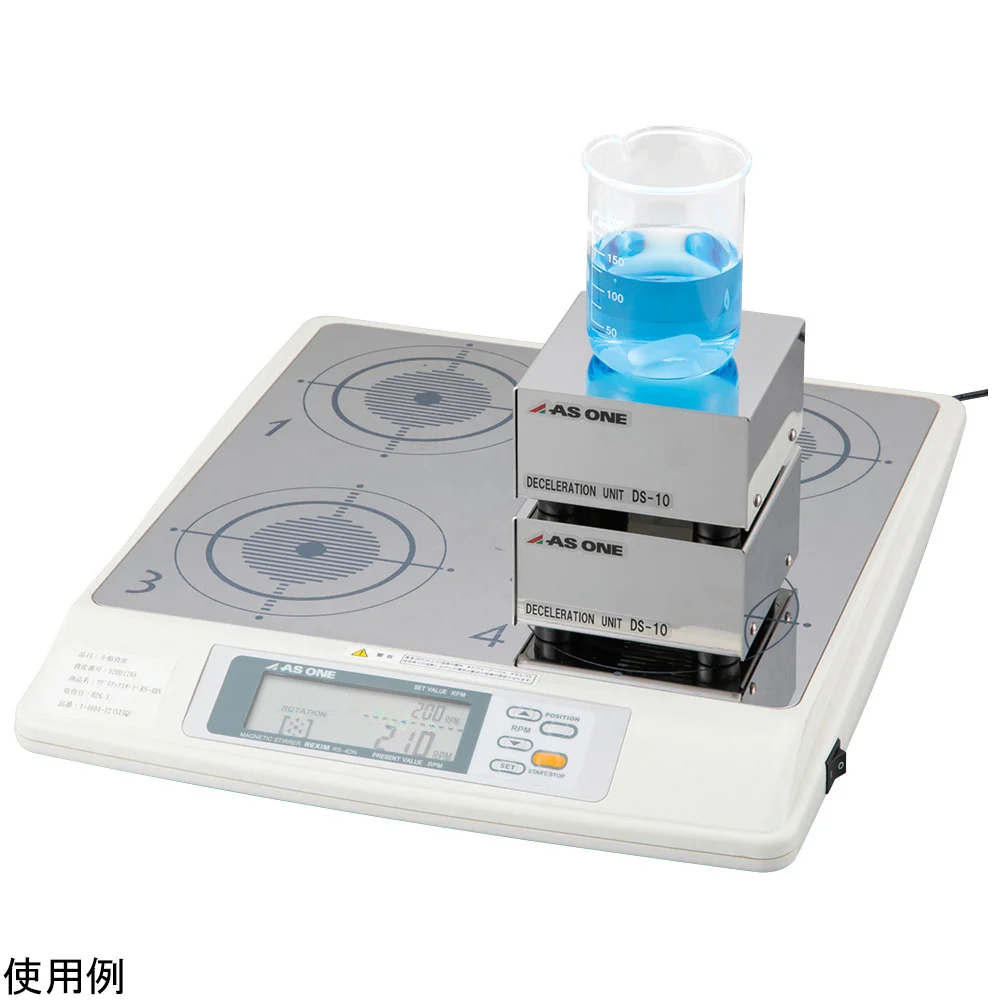

  • You can stack them together and slow them down even more (see image).
  • Turn speed to 1/10!

Spec

  • Size (mm): 100 x 100 x 61
  • Deceleration ratio: about 1/10
  • Number entered: 1

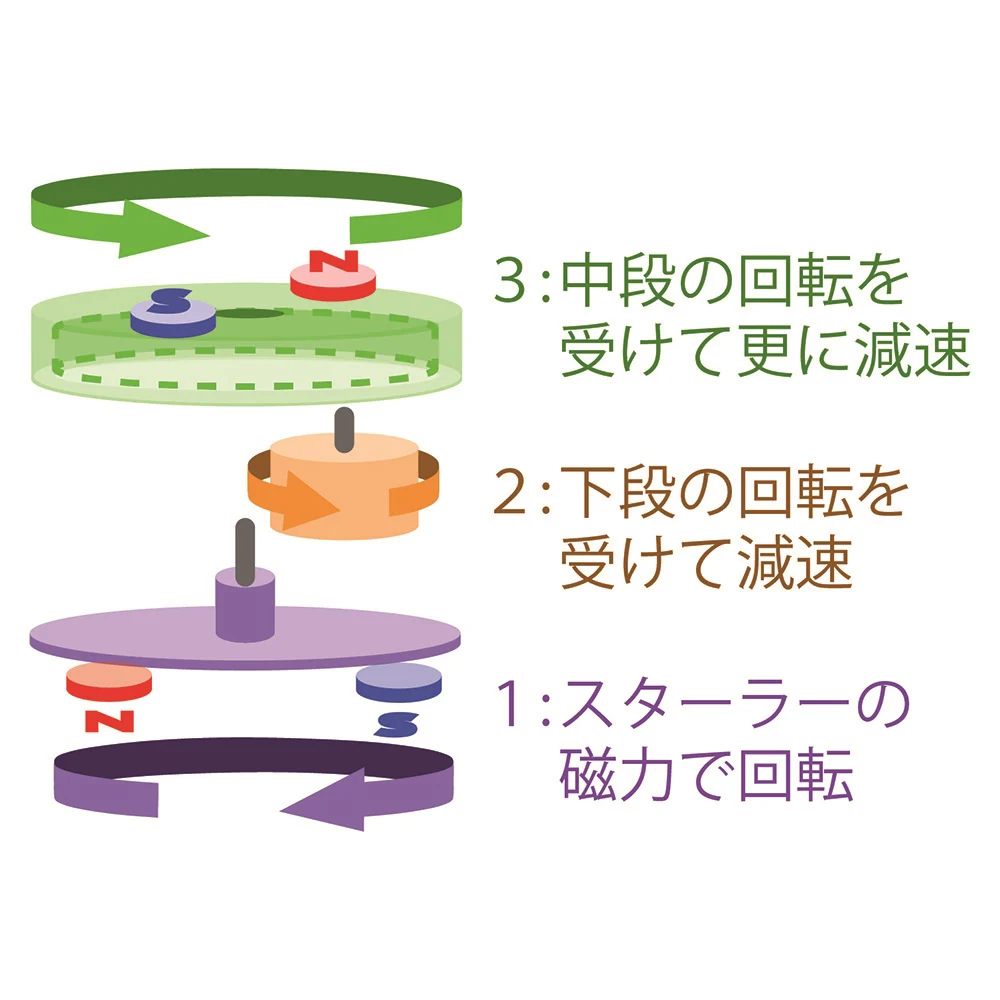

  • Deceleration method: Planetary gear mechanism using rubber pulley
  • Body Material: SUS 304
  • Magnet Material: Lower Side/Ferrite, Upper Side/Neodymium
  • Recommended Stirrer: phi 6 x 15 to phi 8 x 50 mm
  • Recommended stirrer: High torque type for high viscosity, using induction motor, etc.
  • *It can not be used with small thin stirrers or electromagnetic coil types.
  • *It is not possible to agitate highly viscous liquids, operate continuously for a long time, or use at high speed by reversing the top and bottom.

‘
‘
‘
