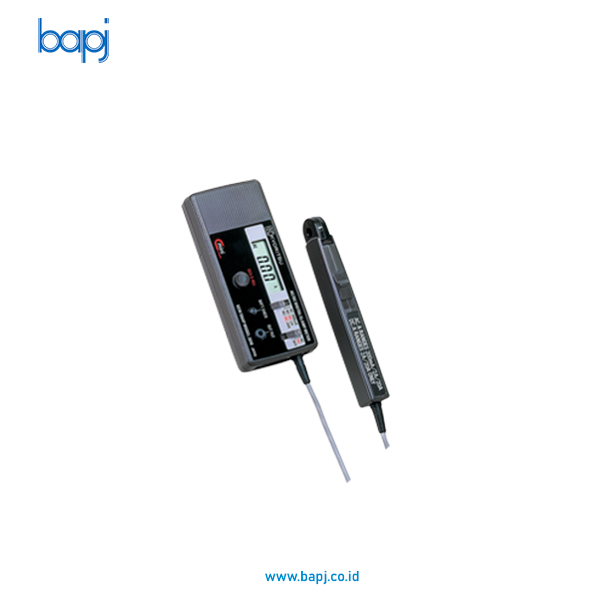

Kyoritsu MODEL 2010AC/DC Digital Clamp Meters

Update Terakhir
17 Jan 2020
Negara Asal
Jepang
Pembelian minimum
Harga
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

AC/DC Digital Clamp Meters

MODEL 2010

• High sensitivity, miniature AC/DC clamp meter.
• 0.1mA minimum resolution for AC current and 1mA minimum resolution for DC current.
• Output terminal for recorder connection.

φ7.5DCACAMAX20AOutPutExternal

Never make current measurement on a circuit above 60V AC/DC
as the instrument is designed for use on low voltage circuits only.

AC A 200mA/2/20A
±1%rdg±2dgt [50/60Hz] (200mA)
±1.5%rdg±8dgt [40Hz - 2kHz] (200mA)
±1%rdg±2dgt [50/60Hz] (2A)
±2.5%rdg±10dgt [40Hz - 2kHz] (2/20A)
DC A 2/20A
±1%rdg±2dgt (2A)
±1.5%rdg±4dgt (20A)
Conductor size Ø7.5mm max.
Frequency response DC, 40Hz - 2kHz
Output Recorder :
DC200mV against AC200mA/2/20A
DC200mV against DC2/20A
Power source
