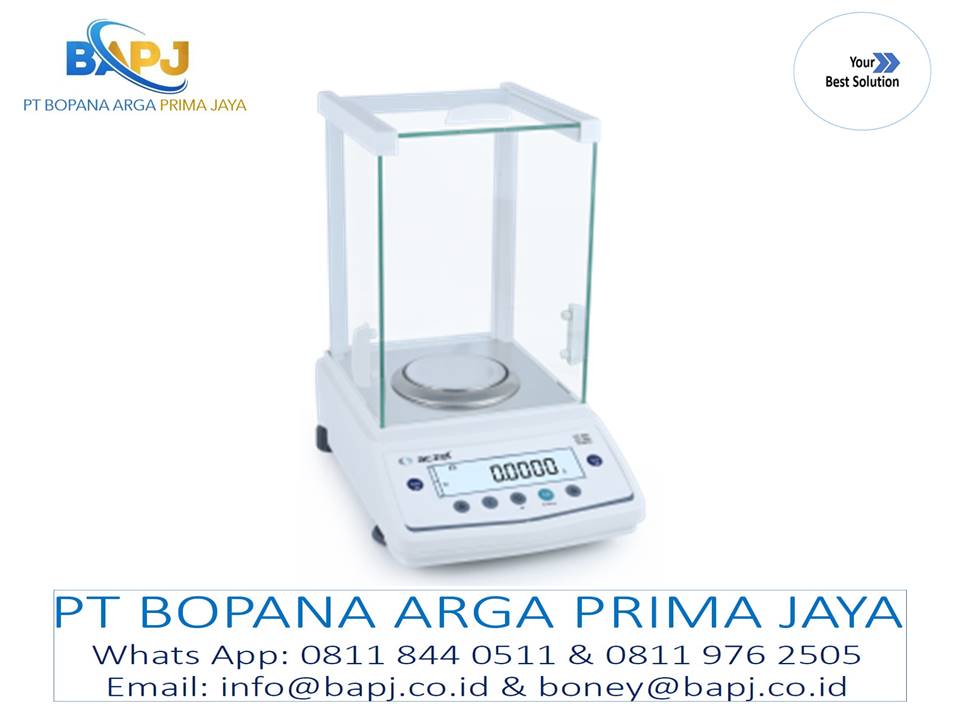

The CY 124 balance is a high-precision weighing instrument suitable for various laboratory and industrial applications. Below are the detailed specifications and features of the model:
CY 124 Specifications:
- Maximum Capacity: 120 g
- Minimum Load: 1 mg
- Readability: 0.1 mg
- Repeatability: ±0.1 mg
- Linearity: ±0.2 mg
- Tare Range: -120 g
- Minimum Sample Weight (U=1% K=2): 16 mg
- Minimum Sample Weight (according to USP): 160 mg
- Pan Size: Ø90 mm
- Response Time: 2 - 3 seconds
- Display: Alpha Numeric Backlit LCD Display
- Calibration: External Calibration
Units of Measurement:
- gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
Operating Conditions:
- Operating Temperature: 18ºC to 30ºC
- Sensitivity Drift: ± 2 ppm (2 x 10⁻⁶ / °C)
- Interface: RS 232C, Optional USB (Windows direct communication)
Application Modes:
- PCS (Piece Counting)
- % Weighing (Percentage Weighing)
- Animal / Dynamic Weighing
- Check Weighing
- Automatic Density Determination
- Formulation
- Automatic Statistic Calculator
Power Supply:
- DC Adapter
- Input: 100 ~ 240 V, 0.8 A
- Output: 13 V / 1.5 A, 50/60 Hz
Compliance:
Physical Dimensions:
- Balance Size (WxDxH): 342.5 x 212 x 341 mm
- Chamber Height: 228.5 mm
- Weight: Approx. 9.3 kg
Key Features:
- External Calibration: The balance supports external calibration, which helps ensure accurate and repeatable results.
- Backlit LCD Display: The clear, backlit display ensures ease of reading in various lighting conditions.
- Multiple Application Modes: The balance can perform various types of measurements, including piece counting, percentage weighing, dynamic weighing, and density determination, making it highly versatile.
- ISO, GLP / GMP, and USP Compliance: The CY 124 meets industry standards, ensuring it is suitable for high-precision applications in regulated environments such as pharmaceuticals, laboratories, and manufacturing.
Summary:
The CY 124 is designed for applications requiring precise and accurate measurements. Its external calibration ensures high reliability, while the versatile modes make it useful across various industries. With compliance to ISO, GLP, and GMP, it is a trusted option for laboratories and production environments that demand accurate results.
'
‘
‘
