Deskripsi produk

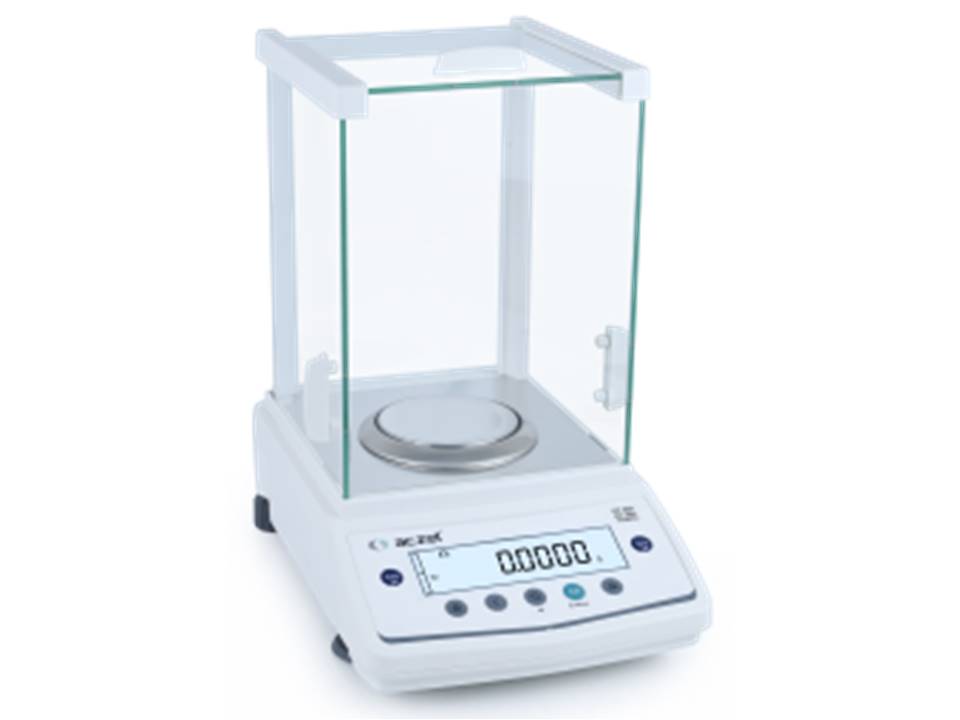

The CY 304 C Balance is designed for high-precision weighing tasks, offering a maximum capacity of 300 g and a readability of 0.1 mg. This balance provides precise measurements with repeatability of ±0.1 mg and linearity of ±0.3 mg, making it ideal for applications where accuracy is critical.

Key Specifications:

• Maximum Capacity: 300 g
• Minimum Load: 1 mg
• Readability: 0.1 mg
• Repeatability: ±0.1 mg
• Linearity: ±0.3 mg
• Tare Range: -300 g
• Minimum Sample Weight (U=1% K=2): 16 mg
• Minimum Sample Weight (according to USP): 160 mg
• Pan Size: Ø90 mm
• Response Time: 2 - 3 seconds
• Display: Alpha Numeric Backlit LCD Display
• Calibration: Motorized Internal Calibration

Units of Measurement:

• gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS

Operating Conditions:

• Operating Temperature: 18ºC to 30ºC
• Sensitivity Drift: ± 2 ppm (2 x 10⁻⁶ / °C)
• Interface: RS 232C, Optional USB (Windows direct communication)

Application Modes:

• PCS (Piece Counting)
• % Weighing (Percentage Weighing)
• Animal / Dynamic Weighing
• Check Weighing
• Automatic Density Determination
• Formulation
• Automatic Statistic Calculator

Power Supply:

• DC Adapter
• Input: 100 ~ 240 V, 0.8 A
• Output: 13 V / 1.5 A, 50/60 Hz

Compliance:

• ISO, GLP / GMP, USP

Physical Dimensions:

• Balance Size (WxDxH): 342.5 x 212 x 341 mm
• Chamber Height: 228.5 mm
• Weight: Approx. 9.3 kg (with packaging)

Features:

• The balance is equipped with motorized internal calibration, ensuring consistent and accurate measurements.
• It includes various application modes like Piece Counting (PCS), percentage weighing, and dynamic weighing for enhanced versatility.
• The backlit LCD display allows for easy viewing in different lighting conditions.
• Designed for ISO, GLP, GMP, and USP compliance, this balance is suitable for laboratory environments where precision is required.

The CY 304 C Balance is a reliable choice for laboratories and industries that require highly accurate and consistent measurements, offering a combination of ease of use and advanced functionality.

'
‘
‘
