Deskripsi produk

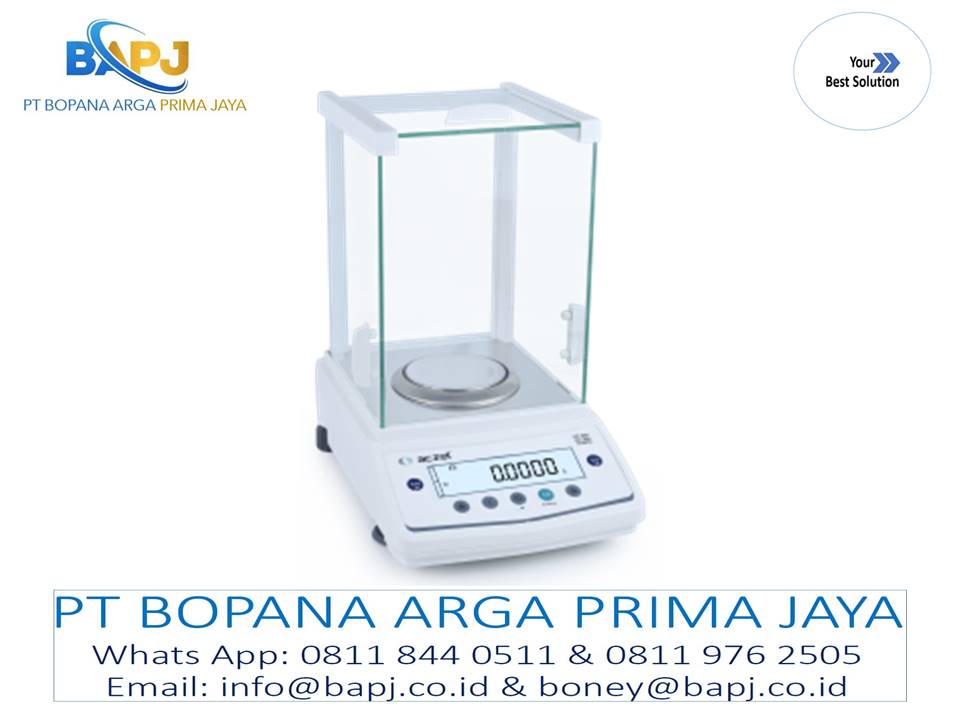

The CY 64 is a precise laboratory balance designed for accurate weighing tasks in various applications. Below are the detailed specifications and features:

CY 64 Specifications:

• Maximum Capacity: 60 g
• Minimum Load: 1 mg
• Readability: 0.1 mg
• Repeatability: ±0.1 mg
• Linearity: ±0.2 mg
• Tare Range: -60 g
• Minimum Sample Weight (U=1% K=2): 16 mg
• Minimum Sample Weight (according to USP): 160 mg
• Pan Size: Ø90 mm
• Response Time: 2 - 3 seconds
• Display: Alpha Numeric Backlit LCD Display
• Calibration: External Calibration

Units of Measurement:

• gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS

Operating Conditions:

• Operating Temperature: 18ºC to 30ºC
• Sensitivity Drift: ± 2 ppm (2 x 10⁻⁶ / °C)
• Interface: RS 232C, Optional USB (Windows direct communication)

Application Modes:

• PCS (Piece Counting)
• % Weighing (Percentage Weighing)
• Animal / Dynamic Weighing
• Check Weighing
• Automatic Density Determination
• Formulation
• Automatic Statistic Calculator

Power Supply:

• DC Adapter
• Input: 100 ~ 240 V, 0.8 A
• Output: 13 V / 1.5 A, 50/60 Hz

Compliance:

• ISO, GLP / GMP, USP

Physical Dimensions:

• Balance Size (WxDxH): 342.5 x 212 x 341 mm
• Chamber Height: 228.5 mm
• Weight: Approx. 9.3 kg

Key Features:

• External Calibration: The balance supports external calibration for precise and reliable measurements.
• Backlit LCD Display: Provides clear readings even in varying lighting conditions, ensuring ease of use.
• Multiple Application Modes: The CY 64 is versatile, offering modes such as piece counting, percentage weighing, dynamic weighing, and density determination.
• ISO, GLP / GMP, and USP Compliance: This model complies with international standards, making it suitable for regulated environments like pharmaceuticals and laboratories.

Summary:

The CY 64 is a highly accurate and reliable laboratory balance. With its external calibration and various weighing modes, it's ideal for a wide range of laboratory applications. Its compliance with ISO, GLP, GMP, and USP ensures it meets the necessary regulatory standards, making it a trusted tool for laboratories that require precision and consistency in measurements.
