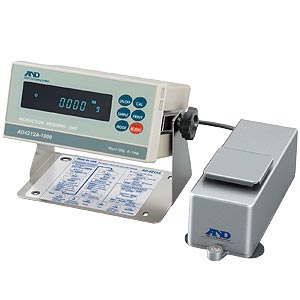

AD-4212A Series Weigh Modules

Update Terakhir
Negara Asal
Jepang
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

Features
 Fast stabilization (0.8 sec. at 1 mg, 1.1 sec. at 0.1 mg)
 Slim separate weighing sensor unit (80 mm width) for compact setups
 Protection mechanism against vertical and transverse overloading due to actuator malfunctions, etc.
 Adjustable response characteristics to help cope with the effect of drafts and vibrations
 Multiple weighing units: g, mg, oz, ozt, ct, mom, dwt, grain, and a user-programmable unit for conversion applications (either tael or tola can be added upon request)
 Automatic zero display after data output
 Wall/panel-mountable display unit
 Possible to create your own weighing pan
 Comparator contact output with buzzer
 GLP/GMP/GCP/ISO compliant output
 Clock and calendar function
 Data memory function
 Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
 Percent mode function
 Animal weighing (hold) function
 Possible to control the RE-ZERO and PRINT keys via an external connection
 Securable to a base using the provided mounting fixtures
 Stainless steel breeze break (AD-4212A-100)
 Comes with a free calibration weight (OIML Class E2 equivalent)
 Windows Communication Tools software (WinCT) on CD-ROM



Specifications
Model AD-4212A-100 AD-4212A-200 AD-4212A-600 AD-4212A-1000
Capacity 110 g 210 g 610 g 1100 g
Readability 0.1 mg 1 mg
Stabilization time (Typical) 0-30 g: Approx. 1.1 sec 0-30 g: Approx. 0.8 sec 0-30 g: Approx. 0.9 sec 0-30 g: Approx. 0.9 sec
30-110 g: Approx. 1.3 sec 30-210 g: Approx. 1.0 sec 30-610 g: Approx. 1.1 sec 30-1100 g: Approx. 1.1 sec
Repeatability (Standard deviation) 0.15 g 1 mg
Linearity ±0.3 mg ±2 mg ±3 mg
Sensitivity drift (10 °C to 30 °C) ±2 ppm/ °C
Weighing pan 50 mm × 50 mm 70 mm × 70 mm
