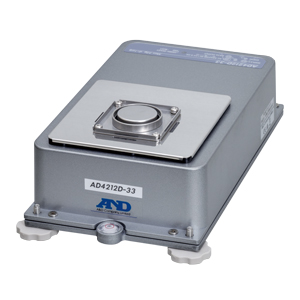

AD-4212D Series Weigh Modules

Update Terakhir

Negara Asal

Jepang

Pembelian minimum

1

Harga

Nego

Kategori

AND

Minta Penawaran

Sharing:

Deskripsi produk

Features

Minimum weighing value from 1 µg

Integrated A-to-D converter for direct connection to a PC or PLC

Internal sensitivity adjustment weight to ensure accuracy with one key press

Protection mechanism against vertical and transverse overloading due to actuator malfunctions, etc.

Adjustable response characteristics to help cope with the effects of drafts and vibrations

Equipped with a small breeze break

Possible to design and attach your preferred weighing pan/receptacle

Underhook for weighing magnetic materials and density measurements

Can be secured directly to a base by removing the leveling feet and using screws

Water-resistant cap for cleaning*

High extensibility with A&D's various peripheral devices

Specifications

Model	AD-4212D-33	AD-4212D-32	AD-4212D-302	AD-4212D-301
Capacity	32 g	5.1 g / 32 g^*1	320 g	320 g
Readability	0.001 mg	0.001 mg / 0.01 mg^*1	0.01 mg	0.1 mg
Stabilization time (typical when set to FAST)	Approx. 7 sec	Approx. 7 sec	Approx. 7 sec	Approx. 3 sec
Repeatability (Standard deviation)	0.002 mg^*2	0.004 mg^*2 / 0.02 mg	0.02 mg^*3	0.07 mg^*3
Linearity	±0.02 mg	±0.03 mg	±0.15 mg	±0.25 mg
Sensitivity drift (10 °C to 30 °C)	±2 ppm/ °C
Weighing pan	Ø34 mm		Ø50 mm

‘
‘
‘
