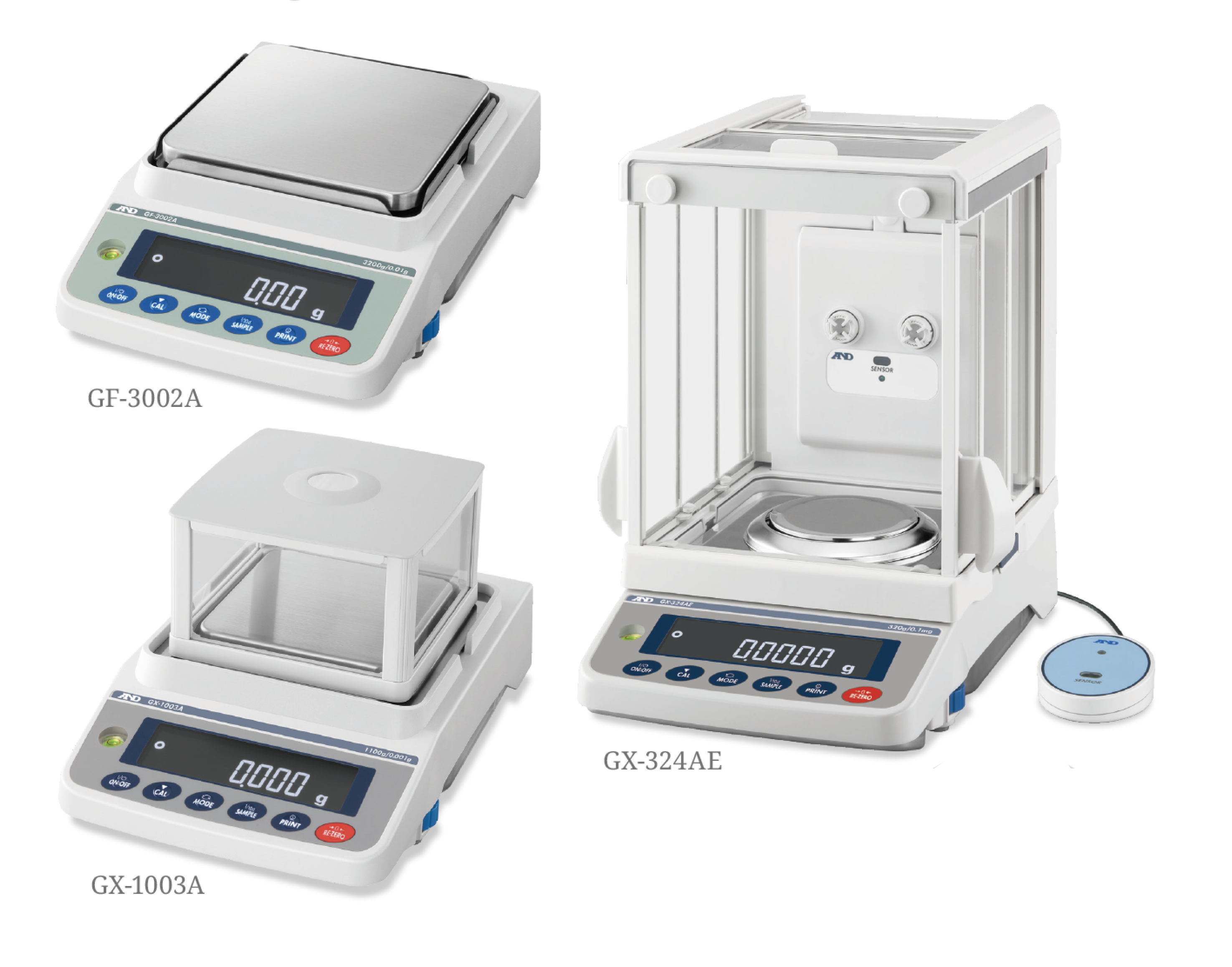

A&D Apollo GX-A(E/WP) & GF-A(WP) Series Advanced-Level Analytical/Precision Balances

Update Terakhir
Negara Asal
Jepang
Pembelian minimum
1
Harga
Nego
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

Taking Weighing Precision and Protection to New Heights

Features
 Impact shock detection (ISD) providing feedback to prevent damage to the weight sensor*1
 Electronically controlled load (ECL) that enables precision management without using an external weight*1
 Flow rate display (FRD) that makes calculating and recording flow rates easier and more accurate*2
 IP65 dust and waterproof (GX-AWP/GF-AWP)
 Smart super hybrid sensor (Smart SHS) that realizes fast stabilization, long-term durability and low cost of ownership
 Shock logging function that records up to 50 adverse impact loads with a timestamp for later inspection
 Cushioning under the weighing pan to mitigate impact shocks significantly
 Protection against vertical and transverse static overloading
 Flow rate comparator that indicates whether the flow rate is within the designated limits
 Tare memory function that saves the tare value in non-volatile memory
 Built-in fanless ionizer with Quick Ion® technology and external IR switch (GX-AE)
 Large and detachable, antistatic glass breeze break (0.0001 g models)
 Retractable doors that fold into the back, requiring no extra space at the rear
 Automatic self calibration in response to temperature changes or according to set schedules (GX-AE/GX-A/GX-AWP)
 Automatic minimum weight calculation with either ECL or an actual, external weight
 Alert function to ensure that the measured quantity is not smaller than the set minimum weight
 Selectable response characteristics for trading faster weighing speed for higher display stability or vice versa
 Large, front-mounted spirit level with LED illumination
 Easy-to-adjust leveling feet with thumbwheels
 User access control (UAC) that password-protects the balance from misuse
 GLP/GMP/GCP/ISO compliant output to meet documentation requirements
 Universal Flexi Coms (UFC) to customize printout content and layout*3
 Gross/Net/Tare output
 Data memory function to save weighing results, calibration results and unit masses to be used in counting mode in the device itself
 Counting mode with the Automatic Counting Accuracy Improvement (ACAI) function
 Percent mode function for target weighing or checking sample variation
 Animal weighing (average & hold) function for weighing moving objects
 Statistical calculation function (SCF) to facilitate the analysis of measurements
 Five-level comparator function with buzzer
 Auto power ON and OFF functions
 Density determination function (optional density determination kits available for the 0.0001/0.001 g models)
 Underhook for weighing a magnetic material as well as measuring density



Specifications
Models GX-124AE
GX-124A
GF-124A
GX-224AE
GX-224A
GF-224A
GX-324AE
GX-324A
GF-324A
Capacity 122 g 220 g 320 g
Readability 0.0001 g
Repeatability (standard deviation) 0.0001 g 0.0002 g (300 g)
0.0001 g (200 g)
Minimum weight* (typical) 120 mg
Linearity ±0.0002 g ±0.0003 g
Stabilization time (when set to FAST under a good environment) Approx. 1.5 sec (100 g) Approx. 2 sec (200 g)
Approx. 1.5 sec (100 g)
Approx. 2 sec (300 g)
Approx. 1.5 sec (100 g)
Weighing pan size Ø90 mm
External dimensions 259 (W) × 358 (D) × 332 (H) mm (including the large glass breeze break)
Net weight Approx. 7 kg
Models GF-123A GX-203A
GX-203AWP
GF-203A
GF-203AWP
GX-303A
GF-303A
GX-403A
GX-403AWP
GF-403A
GF-403AWP
GX-603A
GX-603AWP
GF-603A
GF-603AWP
GX-1003A
GF-1003A
GX-1603A
GF-1603A
Capacity 122 g 220 g 320 g 420 g 620 g 1100 g 1620 g
Readability* 0.001 g
Repeatability (standard deviation) 0.001 g 0.002 g (1600 g)
0.001 g (1000 g)
Minimum weight** (typical) GX-A/GF-A: 1.4 g | GX-AWP/GF-AWP: 1.8 g
Linearity ±0.002 g ±0.003 g
Stabilization time (when set to FAST under a good environment) Approx. 1 sec
Approx. 0.8 sec (5 g)
Approx. 1.5 sec
Approx. 0.8 sec (5 g)
Weighing pan size 128 mm × 128 mm
External dimensions GX-A/GF-A: 212 (W) × 317 (D) × 171 (H) mm (including the small plastic breeze break)
GX-AWP/GF-AWP: 212 (W) × 326 (D) × 171 (H) mm (including the small plastic breeze break)
Net weight Approx. 5 kg
Models GF-1202A GX-2002A
GX-2002AWP
GF-2002A
GF-2002AWP
GX-3002A
GF-3002A
GX-4002A
GX-4002AWP
GF-4002A
GF-4002AWP
GX-6002A
GX-6002AWP GF-6002A
GF-6002AWP
GX-10002A
GF-10002A
GX-6001A
GX-6001AWP GF-6001A
GF-6001AWP
GX-10001A
GF-10001A
Capacity 1220 g 2200 g 3200 g 4200 g 6200 g 10200 g 6200 g 10200 g
Readability* 0.01 g 0.1 g
Repeatability (standard deviation) 0.01 g 0.02 g (10000 g)
0.01 g (5000 g)
0.1 g
Minimum weight** (typical) GX-A/GF-A: 14 g | GX-AWP/GF-AWP: 18 g 100 g
Linearity ±0.02 g ±0.03 g ±0.1 g
Stabilization time (when set to FAST under a good environment) Approx. 1 sec
Approx. 0.8 sec (50 g)
Approx. 1.5 sec
Approx. 0.8 sec (50 g)
Approx. 1 sec
Approx. 0.8 sec (500 g)
Weighing pan size 165 mm × 165 mm
External dimensions GX-A/GF-A: 212 (W) × 317 (D) × 93 (H) mm
GX-AWP/GF-AWP: 212 (W) × 326 (D) × 93 (H) mm
Net weight Approx. 5 kg
