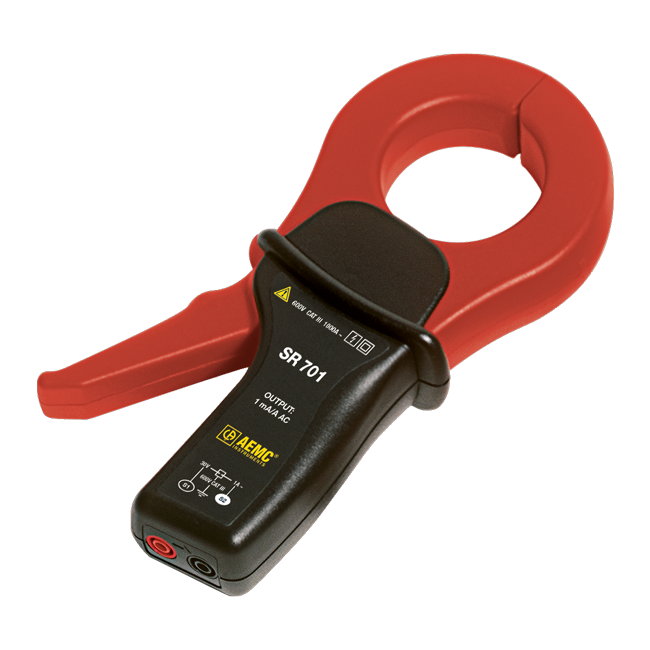

AC Current Probe Model SR701

The SR701 is a general purpose 1000A_AC current probe designed for use with DMMs, loggers and other instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp measured in the jaw. The SR701 has jack output terminations that accept 4mm banana plugs. The rounded jaw design on this probe makes it well-suited for power applications where high accuracy and low phase shift and wide frequency response are important.

Specifications :

Maximum Conductor Size	2.05" (52mm)
Current Range	1000Arms AC
Measurement Range	1 to 1200A
Output	Two standard safety 4mm banana jacks
Transformation Ratio	1000:1
Output Signal	1mA/AAC (1A @ 1000A)
Accuracy 50/60Hz	0.3% @ 1000A
Frequency Range	30Hz to 5kHz
Phase Shift at 50Hz	0.7° @ 1000A
Open Secondary Voltage	Limited to <25V
Load Impedance	5Ω max
Overload	1200A for 40 mn ON then 20 mn OFF
Dimensions (H x W x D)	4.37 x 8.50 x 1.77” (111 x 216 x 45mm)
Weight	1.21 lbs (550g)
Operating Temperature	14° to +122°F (-10° to +50°C)
Storage Temperature	-4° to +158°F (-20° to +70°C)
Operating Humidity	90% RH
Pollution Degree	2
Ingress Protection (Ip)	IP40
EMC	EN 61326-1
Safety Compliance	EN/IEC 61010-1 600V CAT III, EN/IEC 61010-032
