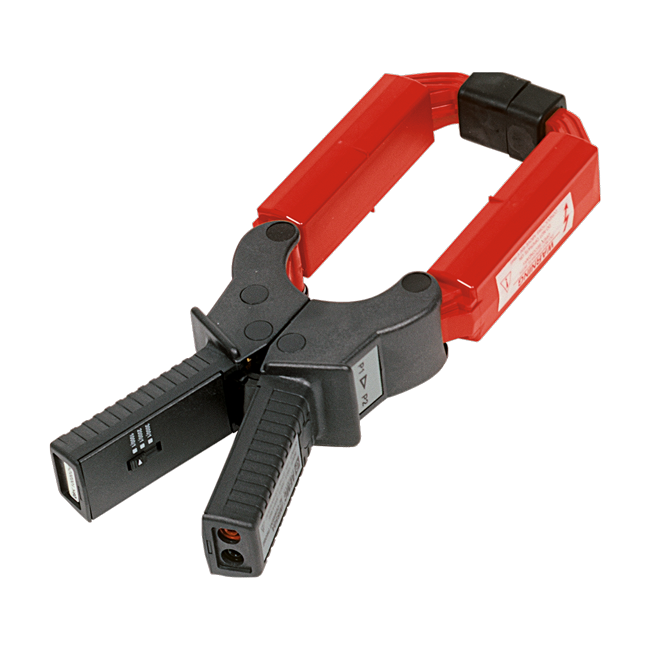

AC Current Probe Model JM865A

The JM865A is a high performance AC Current Probe with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A_AC/2000A_AC/3600A_AC. The "squared" jaw permits multiple conductor or bus bar positionings. Provide excellent TRMS capabilities and reliable signal reproduction.

Specifications:

Maximum Conductor Size	Cable: 2.52" (64mm) Bus bar: 1.97 x 5.31” (50 x 135mm), 2.52 x 3.94” (64 x 100mm)
Current Range	1000AAC; 2000AAC; 2400AAC (3000AAC if ambient temperature <95°F / 35C°)
Measurement Range	1 to 1000AAC; 1 to 2000AAC; 1 to 2400AAC (3000AAC if ambient temperature <95°F / 35C°)
Output Signal	5mAAC / AAC (5A @ 1000A); 2.5mAAC / AAC (5A @ 2000A); 1.666mAAC / AAC (5A @ 3000A)
Transformation Ratio	1000:5; 2000:5; 3000:5
Output	4mm safety banana jack
Accuracy 50/60Hz	1% @ 1000A; 0.5% @ 2000A; 0.5% @ 3000A
Frequency Range	30Hz to 1.5kHz
Phase Shift	1° @ 1000A; 0.5° @ 2000A; 0.5° @ 3000A
Load Impedance	0.1Ω @ 1000A; 0.2Ω @ 2000A; ≤2Ω @ 3000A
Overload	1200A for 10min @ 1000A; 2400A for 10min @2000A; 3600A for 10min @ 3000A
Operating Temperature	+14° to +122°F (-10° to +50°C)
Storage Temperature	-13° to +176°F ( -25° to +80°C)
Dimensions (HxWxD)	4.72 x 12.40 x 1.9” (120 x 315 x 48mm)
Weight	2.65 lbs (1200g)
Pollution Degree	2
Rating	UL 94 V0 (handles), ABS UL 94 V2 (jaws)
Ingress Protection	IP 20
Safety Compliance	IEC 1010-2-32, 600V CAT III
