Deskripsi produk

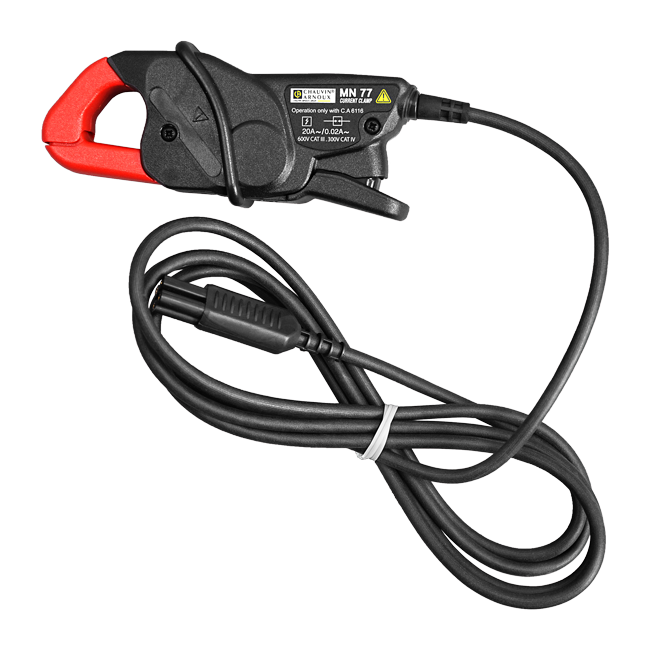

AC Current Probe Model MN77

The AC Current Probe Model MN77 features a measurement range of 5mA to 20A, with a transformation ratio of 1000:1. Its maximum clamping diameter is 0.78" (20mm). The probe includes a 6.5' (2m) lead with proprietary CA connector. The Model MN77 is designed for use with Multi-Function Installation Testers Models C.A 6116/6116N, and C.A 6117.

Specifications :

Meter Compatibility	C.A 6116N, C.A 6117
Maximum Clamping Diameter	0.78" (20mm)
Current Range	20A
Measurement Range	5mA to 20A
Transformation Ratio	1000:1
Output	6.5ft (2m) lead with proprietary CA connector
Operating Temperature	32° to +113°F (0° to +45°C); 90% RH
Storage Temperature	-40° to +158°F (-40° to +70°C)
Dimensions (HxWxD)	5.31 x 2.01 x 1.18” (135 x 51 x 30mm)
Weight	6.35 oz (180g)
Pollution Degree	2
Ingress Protection	IP 40, IP 30 with jaws open
Safety Compliance	IEC 61010-2-032, EN 61010-1, EN61010-031 300V CAT IV, 600V CAT III
