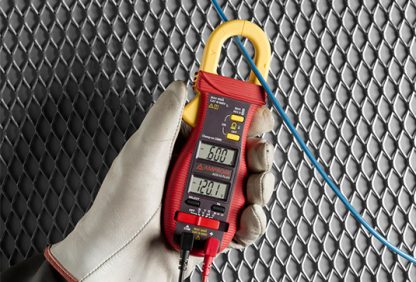

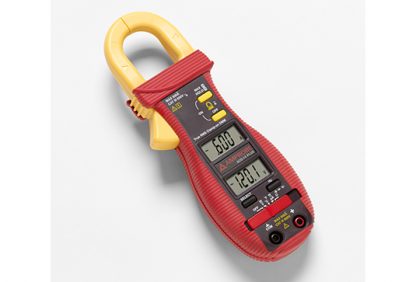

The ACD-14 PLUS clamp meter works as both an HVAC multimeter and electrical multimeter with a versatile set of features, including microamps, capacitance, frequency and temperature with included thermocouple.
The dual displays show amps and volts simultaneously, useful for measuring voltage drop under load. The thinner jaws of this digital clamp multimeter enable access to tight measurement areas and still handles conductors up to 1″ (25 mm).
| Safety Rating | CAT III 600 V |
|---|---|
| AC Voltage (V) | 600 V |
| DC Voltage (V) | 600 V |
| AC Current (A) | 600 A |
| Microamps | • |
| Resistance | • |
| Capacitance | • |
| Frequency (Test Leads) | • |
| Relative Zero | • |
| Temperature | • |
| Diode Test | • |
| Continuity Beeper | • |
| Autoranging | • |
| Data Hold | • |
| Auto Power-Off | • |
| MAX | • |
| FEATURE | ACD-14 PLUS | ACD-14 TRMS-PLUS |
| True-rms | – | • |
| AC Voltage | 4.000 V, 40.00 V, 400.0 V, 600 V | |
| DC Voltage | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 600 V | |
| AC Current | 40.00 A, 400.0 A, 600 A | |
| Resistance | 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO, 4.000 MO, 40.00 MO | |
| Capacitance | 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF, 3000 µF | |
| Frequency | 40 Hz → 400 Hz with Jaw, 10 Hz → 100 kHz with test leads | |
| Temperature | -4 °F → 999 °F (-20 °C → 537 °C) | |
| Dual displays | • | • |
| Micro Amps | • | • |
| Accommodates conductors | up to 1.0″ (25 mm) in diameter | |
| Specifications | |
| Display | 3-3/4 digits 4000 counts, dual LCD displays |
| Update rate | 3 per second nominal |
| Polarity | Automatic |
| Operating temperature | 0°C to 40°C (32°F to 104°F) |
| Power supply | Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032 |
