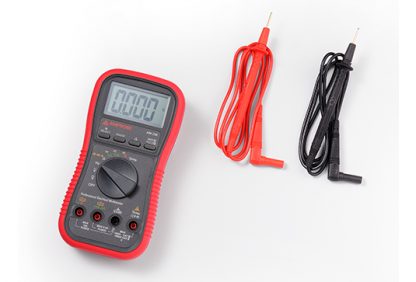

The Amprobe AM-250 is a professional multimeter for Electrical and HVAC applications that is safety rated to CAT III 600 V and CAT II 1000 V for indoor applications requiring direct connection to main panel of the building. It measures a complete range of electrical parameters including voltage, current, resistance and frequency. It also covers HVAC applications with temperature, capacitance and micro amps functions.
| FEATURE | AM-250 | AM-270 |
| AC Voltage | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V | 50.00 mV, 500.0 mV, 5.000 V, 50.00 V, 500.0 V, 1000 V |
| DC Voltage | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V | 50.00 mV, 500.0 mV 5.000 V, 50.00 V, 500.0 V, 1000V |
| Resistance | 400.0 O, 4.000 kO, 40.00 kO, 400.0 kO 4.000 MO, 40.00 MO | 50.00 O, 500.0 O, 5.000 kO, 50.00 kO, 500.0 kO, 5.000 MO, 50.00 MO |
| AC/DC Current | 40.00 µA, 400.0 µA, 400.0 mA, 4000 mA, 4.000 A, 10.00 A | 50.00 µA, 500.0 µA, 500.0 mA, 5000 mA, 5.000 A, 10.00 A |
| Frequency | 5.000 Hz, 50.00 Hz, 500.0 Hz, 5.000 kHz, 50.00 kHz, 500.0 kHz, 1.000 MHz | 5Hz → 125 kHz for all setups except: 5Hz → 1kHz for 500V and 1000V ranges 5 Hz → 20 kHz for 50 V range |
| Capacitance | 500.0 nF, 5.000 µF, 50.00 µF, 500.0 µF , 3000 µF | 50.00 nF, 500.0 nF 5.000 µF, 50.00 µF, 500.0 µF, 9999 µF |
| Temperature | -4 °F → 572 °F (-20 °C → 300 °C) | -58 °F → 1832 °F (-50 °C → 1000 °C) |
| Data recording | – | Records peak, max, min, max-min |
| Relative zero mode | – | • |
| Specifications | |
| General specifications | 3-3/4 digits 4000 counts LCD display |
| Polarity | Automatic |
| Update rate | 3 per second nominal |
| Operating temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Power supply | 1.5 V AAA Size (NEDA 24A or IEC LR03) battery X 2 |
| Power consumption | 3.2 mA |
| Special features | 25 ms Max Hold; Data Hold; Relative zero mode; Beep-jack™ input warning; Back-lighted display |
