Amprobe AT-8020 Advanced Industrial Wire Tracer Kit
- User interface that provides wire direction compass and Receiver alignment capability with conductor through Smart Sensor™ technology
- Safety rated to CAT IV 600 V to work with Energized cables in industrial environments
- Two operating frequencies for Energized and De-Energized circuits: Energized: 6.25 kHz, De-energized: 32.768 kHz
- Non-Contact Voltage Detection
- Ten adjustable Receiver sensitivity levels
- Hi-contrast Receiver LCD
- Supports signal induction with CT-400 Signal Clamp (included with the AT-8030 model)
- Attaches to TIC-410A Hot Stick for extended reach (TIC-410A sold separately)
Description
The AT-8000 is the first CAT IV 600 V Advanced Wire Tracer Series designed to protect electricians from the most dangerous level of transient overvoltage spikes up to 8,000 V known to occur in industrial environments. The Receiver is equipped with patented Smart Sensor™ technology, which finds and displays the location and orientation of Energized wires in walls, floors and ceilings on the large color TFT LCD screen.
The Scan and Locate feature clearly identifies the single correct breaker or fuse, eliminating the confusion from multiple false positive readings common in older technology tracing tools. Embedded help screens make set-up easy and error free for novice users and experts alike.
Featuring three power modes “high”, “low”, and “loop” and two output frequencies (6 kHz and 33 kHz), the AT-8000-T Transmitter incorporates the best technologies available for optimal wire tracing and breaker identification on both energized and de-energized circuits. The AT-8000-T automatically sets the signal based on detected voltage and prompts the user to set the power level based on the application, delivering consistently accurate results.
The optional CT-400 Signal Clamp for inducing signal into wires without access to bare conductors is included in the AT-8030 kit.
Additional information
| Measurement Category |
CAT IV 600 V |
| Traces energized and de-energized wires |
• |
| Locates energized and de-energized breakers and fuses |
• |
| Receiver "Breaker Identification" mode |
• |
| Finds shorts and opens |
• |
| Transmitter "Loop" mode |
• |
| Non-contact voltage detection |
• |
| Two frequency modes |
• |
| Transmitter Operating Voltage |
0 to 600 V AC/DC |
| Rechargable Batteries |
– |
| Signal clamp attachment |
Optional |
Specifications
| Features |
AT-8000-R Receiver |
AT-8000-T Transmitter |
CT-400 Signal Clamp (not included) |
| Display size |
LCD 3.5 in (89 mm) |
LEDs |
N/A |
| Display dimensions (W x H) |
2.76 x 2.07 in (70 x 52 mm) |
N/A |
N/A |
| Display Resolution |
320 x 240 |
N/A |
N/A |
| Display type |
Color TFT LCD |
LEDs |
N/A |
| Display color |
Yes |
Operating mode LEDs: red
Battery status LEDs: green, yellow, red |
N/A |
| Booting time |
30 sec |
< 2 sec |
N/A |
| Backlight |
Yes |
N/A |
N/A |
| Operating temperature |
-4 °F to 122 °F (-17.77 °C to 49 °C) |
-4 °F to 122 °F (-20 °C to 50 °C) |
32 °F to 122 °F (0 °C to 50 °C) |
| Operating humidity |
45%: -4 °F to <50 °F (-20 °C to <10 °C)
95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to 122 °F (40 °C to 50 °C) |
45%: -4 °F to <50 °F (-20 °C to <10 °C)
95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to 122 °F (40 °C to 50 °C) |
95%: 50 °F to <86 °F (10 °C to <30 °C)
75%: 86 °F to <104 °F (30 °C to <40 °C)
45%: 104 °F to <122 °F (40 °C to <50 °C) |
| Storage temperature and humidity |
-4 °F to 158 °F (-20 °C to 70 °C), <95% RH |
-4 °F to 158 °F (-20 °C to 70 °C), <95% RH |
-4 °F to 140 °F (-20 °C to 60 °C), <95% RH |
| Operating altitude |
0 to 6561 ft (2000 m) |
| Transient protection |
N/A |
8.00 kV (1.2/50μS surge) |
N/A |
| Pollution degree |
2 |
| IP rating |
IP 52 |
IP 40 |
| Drop test |
3.28 ft (1 m) |
| Power supply |
4 x AA (alkaline) |
8 x AA (alkaline) |
N/A |
| Power consumption (typical) |
4xAA battery: 2W |
Hi mode: 70 mA
Loop mode with Clamp: 90 mA
Consumption without signal transmission: 10 mA |
N/A |
| Battery life |
Approx. 9 h |
Hi mode: approx. 25 h
Loop mode: approx. 18 h |
N/A |
| Low battery indication |
Yes |
N/A |
| Fuse |
N/A |
1.6 A, 700 V, fast-acting,
Ø 6x32mm |
N/A |
| Maximum conductor size |
N/A |
N/A |
1.26 in (32 mm) |
| Dimensions (L x W x H) |
Approx. 10.92 x 4.43 x 2.55 in
(27.75 x 11.25 x 6.5 cm) |
Approx. 7.2 x 3.66 x 1.97 in
(18.3 x 9.3 x 5 cm) |
Approx. 5.9 x 2.75 x 1.18 in
(15 x 7 x 3 cm) |
| Weight |
Approx. 1.20 lb (0.544 kg) |
Approx. 1.25 lb (0.57 kg) |
Approx. 0.25 lb (0.114 kg) |
Refer to user manual for accessory specifications

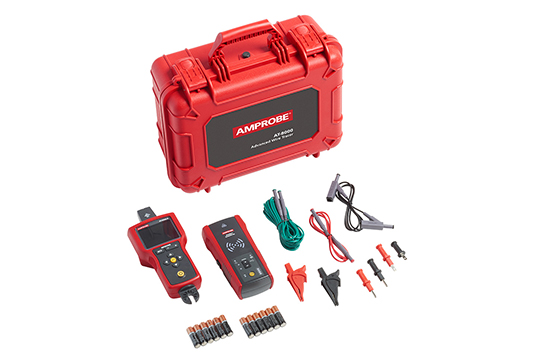

What's Included
- AT-8000-R Receiver
- AT-8000-T Transmitter
- TL-8000-INT Test lead & accessory kit*
- CC-8000 Hard carrying case
- 12 x 1.5 V AA batteries
* TL-8000-INT test lead and accessory kit includes:
- 2 x 1 m Test leads (red, black)
- 1 x 7 m Test lead (green)
- 2 x Alligator clips (red, black)
- 2 x Outlet blade adapter (red, black)
- 2 x Outlet round adapter (red, black)
Optional Accessories:
- ADPTR-SCT Socket adapter
- HS-1 Magnetic hanger
- TL-8000-25M Test lead
- CT-400 Signal clamp
