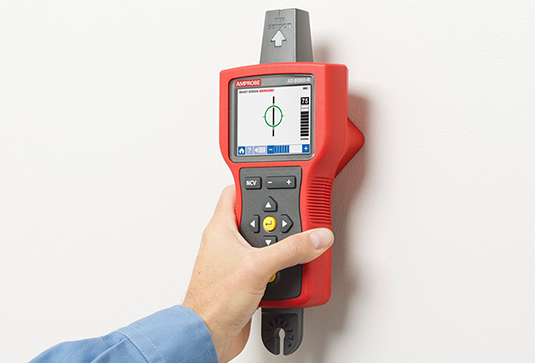

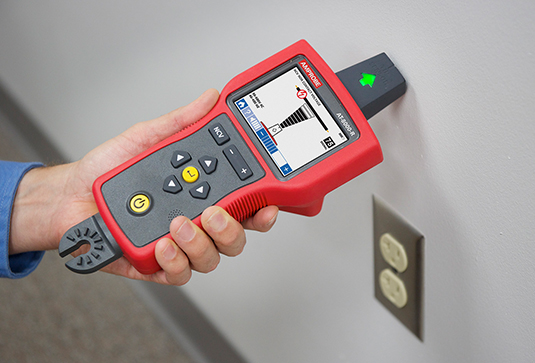

The AT-8000 is the first CAT IV 600 V Advanced Wire Tracer Series designed to protect electricians from the most dangerous level of transient overvoltage spikes up to 8,000 V known to occur in industrial environments. The Receiver is equipped with patented Smart Sensor™ technology, which finds and displays the location and orientation of Energized wires in walls, floors and ceilings on the large color TFT LCD screen.

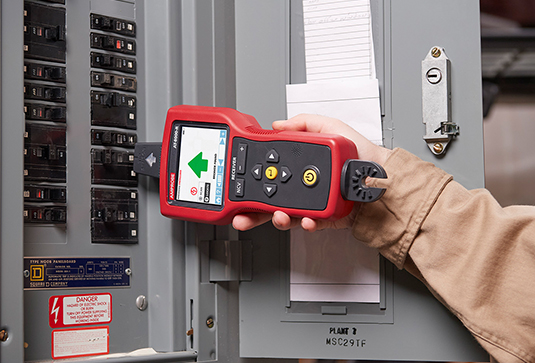

The Scan and Locate feature clearly identifies the single correct breaker or fuse, eliminating the confusion from multiple false positive readings common in older technology tracing tools. Embedded help screens make set-up easy and error free for novice users and experts alike.
Featuring three power modes “high”, “low”, and “loop” and two output frequencies (6 kHz and 33 kHz), the AT-8000-T Transmitter incorporates the best technologies available for optimal wire tracing and breaker identification on both energized and de-energized circuits. The AT-8000-T automatically sets the signal based on detected voltage and prompts the user to set the power level based on the application, delivering consistently accurate results.

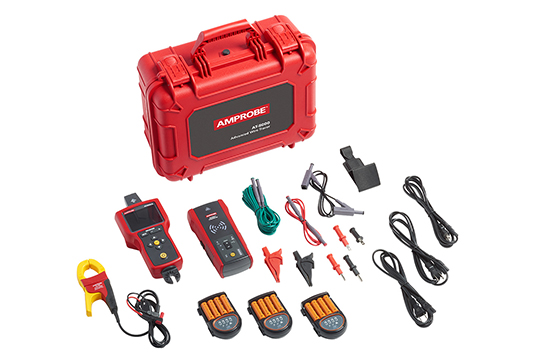

The AT-8030 kit includes the CT-400 Signal Clamp for inducing signal into wires without access to bare conductors.
Winner – Dealer Design Awards – Testing & Monitoring Products
Winner – Cabling Innovators Award – Gold Honoree
Winner – Tool Innovation Awards – Test & Measurement-Circuit/Wire Tracers
| Measurement Category | CAT IV 600 V |
|---|---|
| Traces energized and de-energized wires | • |
| Locates energized and de-energized breakers and fuses | • |
| Receiver "Breaker Identification" mode | • |
| Finds shorts and opens | • |
| Transmitter "Loop" mode | • |
| Non-contact voltage detection | • |
| Two frequency modes | • |
| Transmitter Operating Voltage | 0 to 600 V AC/DC |
| Receiver Display | Color 3.5" LCD |
| Rechargable Batteries | • |
| Signal clamp attachment | • |
| Features | AT-8000-R Receiver | AT-8000-T Transmitter | CT-400 Signal Clamp |
| Display size | LCD 3.5 in (89 mm) | LEDs | N/A |
| Display dimensions (W x H) | 2.76 x 2.07 in (70 x 52 mm) | N/A | N/A |
| Display Resolution | 320 x 240 | N/A | N/A |
| Display type | Color TFT LCD | LEDs | N/A |
| Display color | Yes | Operating mode LEDs: red Battery status LEDs: green, yellow, red |
N/A |
| Booting time | 30 sec | < 2 sec | N/A |
| Backlight | Yes | N/A | N/A |
| Operating temperature | -4 °F to 122 °F (-17.77 °C to 49 °C) | -4 °F to 122 °F (-20 °C to 50 °C) | 32 °F to 122 °F (0 °C to 50 °C) |
| Operating humidity | 45%: -4 °F to <50 °F (-20 °C to <10 °C) 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to 122 °F (40 °C to 50 °C) |
45%: -4 °F to <50 °F (-20 °C to <10 °C) 95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to 122 °F (40 °C to 50 °C) |
95%: 50 °F to <86 °F (10 °C to <30 °C) 75%: 86 °F to <104 °F (30 °C to <40 °C) 45%: 104 °F to <122 °F (40 °C to <50 °C) |
| Storage temperature and humidity | -4 °F to 158 °F (-20 °C to 70 °C), <95% RH | -4 °F to 158 °F (-20 °C to 70 °C), <95% RH | -4 °F to 140 °F (-20 °C to 60 °C), <95% RH |
| Operating altitude | 0 to 6561 ft (2000 m) | ||
| Transient protection | N/A | 8.00 kV (1.2/50μS surge) | N/A |
| Pollution degree | 2 | ||
| IP rating | IP 52 | IP 40 | |
| Drop test | 3.28 ft (1 m) | ||
| Power supply | 4 x AA (alkaline) | 8 x AA (alkaline) | N/A |
| Power consumption (typical) | 4xAA battery: 2W | Hi mode: 70 mA Loop mode with Clamp: 90 mA Consumption without signal transmission: 10 mA |
N/A |
| Battery life | Approx. 9 h | Hi mode: approx. 25 h Loop mode: approx. 18 h |
N/A |
| Low battery indication | Yes | N/A | |
| Fuse | N/A | 1.6 A, 700 V, fast-acting, Ø 6x32mm |
N/A |
| Maximum conductor size | N/A | N/A | 1.26 in (32 mm) |
| Dimensions (L x W x H) | Approx. 10.92 x 4.43 x 2.55 in (27.75 x 11.25 x 6.5 cm) |
Approx. 7.2 x 3.66 x 1.97 in (18.3 x 9.3 x 5 cm) |
Approx. 5.9 x 2.75 x 1.18 in (15 x 7 x 3 cm) |
| Weight | Approx. 1.20 lb (0.544 kg) | Approx. 1.25 lb (0.57 kg) | Approx. 0.25 lb (0.114 kg) |
Refer to user manual for accessory specifications
* TL-8000-INT test lead and accessory kit includes:
Optional Accessories:
