Amprobe HD160C Heavy Duty TRMS Multimeter with Temperature

Update Terakhir
Amprobe HD160C Heavy Duty TRMS Multimeter with Temperature
Negara Asal
AMERIKA
Pembelian minimum
Harga
Kategori
Minta Penawaran
Sharing:

Deskripsi produk

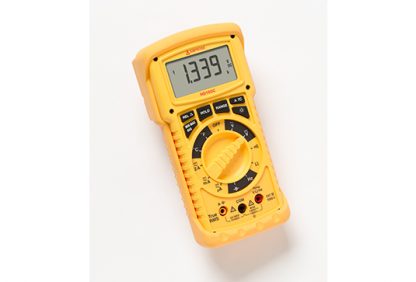

Amprobe HD160C Heavy Duty TRMS Multimeter with Temperature



  • Highest voltage capability, measuring to 1500 V DC and 1000 V AC
  • Suitable for testing Solar installations
  • Special sealing for environment and water resistance: IP67 rated
  • Constructed with drop-resistant housing and PCB mounting
  • Measures capacitance, temperature and frequency
  • Superior 10,000 count resolution with bar graph
  • Magne-Grip™ holster, frees both hands for work
  • Digi-Glo™ bright backlight
  • Display 4 digit LCD, 9999 counts, with annunciators, menu features and 41 segment bargraph
  • Polarity indication automatic
  • Input overload indication OL, -OL
  • Auto power-down

Description

The Amprobe HD160C Heavy Duty Multimeter is designed for professional use in harsh environments. Its made using waterproof construction to prevent dirt, grime and moisture from entering the case and causing inaccurate readings or damaging shorts.

Built with tough, fire-retardant thermoplastic that is resistant to grease and chemical spills and with shock-mounted components that are drop resistant to at least 8 feet, the Amprobe HD160C is unusually rugged and reliable. It has an extended voltage measurement capability of 1500 V DC and 1000 V AC, unmatched by any other line of digital multimeters. The extended voltage ranges can withstand transients up to 12 kV, and it also measures temperature.

Additional information

Safety Rating CAT IV 1000 V
True-rms •
AC Voltage (V) 1000 V
DC Voltage (V) 1500 V
AC Current (A) 2 A
DC Current (A) 2 A
Microamps •
Resistance •
Capacitance •
Frequency •
Relative Zero •
Temperature Inputs 1
Continuity Beeper •
Autoranging •
Backlight •
Bar Graph •
Data Hold •
Auto Power Off •

Specifications

FEATURE HD110C HD160C
DC Voltage 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 1500 V 1000.0 mV, 10.000 V, 100.00 V, 1500.0 V
AC Voltage 200.0 mV, 2.000 V, 20.00 V, 200.0 V, 1000 V 1000.0 mV, 10.000 V, 100.00 V, 1000.0 V
Current AC/DC 200.0 µA, 2.000 mA, 20.00 mA, 200.0 mA, 2 A 100.00 µA, 1000.0 µA, 10.000 mA, 100.00 mA, 400.0 mA, 2.000 A
Resistance 200.0 O, 2.000 kO, 20.00 kO, 200.0 kO, 2.000 MO, 20.00 MO 1000.0 O, 10.00 kO, 100.00 kO, 1000.0 kO, 10.000 MO, 40.00 MO
Diode • –
Continuity •
Frequency – 100.00 Hz, 1000.0 Hz, 10.000 kHz, 100.00 kHz, 1000.0 kHz, 10.000 M Hz
Capacitance – 40.00 nF, 400.0 nF, 4.000 µF, 40.00 µF, 400.0 µF
Temperature – -4 °F → 2372 °F (-20 °C → 1300°C)
True-rms – •
Specifications
DC Volts range: 200 mV, 2 V, 20 V, 200 V, 1500 V
DC Volts resolution: 0.1 mV
DC Volts accuracy: All ranges ±(0.1 % rdg+2 dgts)
DC Volts input impedance: 10 MO
DC Volts OL protection: >1500 V DC/1000 V AC rms
DC Volts transient protection: >12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV
AC Volts (45 Hz to 2 kHz) ranges: 200 mV, 2 V, 20 V, 200 V, 1000 V
AC Volts (45 Hz to 2 kHz) resolution: 0.1 mV
AC Volts (45 Hz to 2 kHz) accuracy: 200 mV to 200 V (45-500 Hz) ±(0.8 % rdg+4 dgts),
AC Volts (45 Hz to 2 kHz) accuracy: 200 mV to 200 V (500 Hz-2 kHz) ±(1.5 % rdg+5 dgts)
AC Volts (45 Hz to 2 kHz) accuracy: 1000 V (50-60 Hz) ±(0.8 % rdg+4 dgts)
AC Volts (45 Hz to 2 kHz) accuracy: 1000 V (60-500 Hz) ±(1.5 % rdg+5 dgts)
AC Volts (45 Hz to 2 kHz) input impedance: 10 MO
AC Volts (45 Hz to 2 kHz) OL protection: 1500 V DC/1000 V AC rms
AC Volts (45 Hz to 2 kHz) transient protection: 12 kV impulse (1.2 µS/50 µS) based on EN 61010-1:2001 impulse requirement for at CAT IV 1000 V product. This product should not be used in installations where transients exceed 12 kV.
DC Current range: 200 µA, 2 mA, 20 mA, 200 mA, 2 A
DC Current resolution: 0.1 µA
DC Current accuracy: 200 µA to 20 mA ±(0.5 % rdg+2 dgts)
DC Current accuracy: 200 mA to 2 A ±(1.0 % rdg+2 dgts)

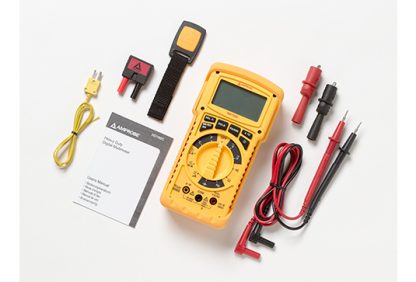

What’s Included

  • HD160C
  • Test leads
  • Batteries (installed)
  • Magne-Grip™ holder with magnetic hanging strap
