Amprobe PK-110 Electrical Test Kit

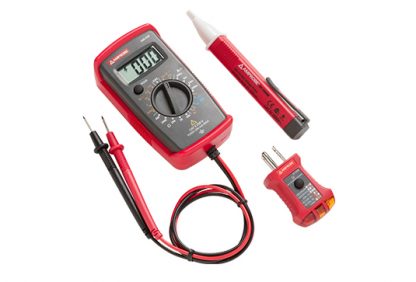

• Residential electrical test kit includes AM-420 Digital Multimeter, VP1000 Non-Contact Voltage Probe, ST-102B Socket Tester with GFCI and all required batteries
• Kit contains tools to measure voltage up to 300 V AC/DC, AC/DC current and resistance, capacitance and perform battery tests
• RV Safety Testing: check RV pedestal outlets (20 A, 30 A, 50 A) for proper wiring and grounding, check for “hot skin conditions and proper wiring of outlets in your RV

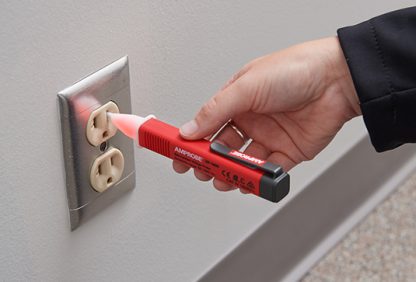

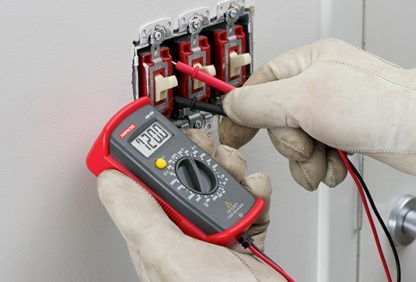

• Check for presence of voltage in receptacles, switches, extension cords and light fixtures

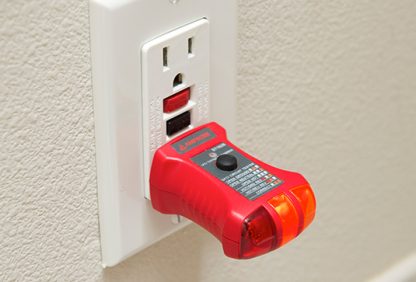

• Verify proper wiring of GFCI (ground fault circuit interrupter) and standard US and Canadian wall outlets with a simple push of a button

Description

Amprobe’s PK-110 Electrical Test Kit offers three electrical testers with testing functions suitable for a variety of residential applications. The kit includes the AM-420 Digital Multimeter, ST-102B Socket Tester with GFCI and VP-1000 Non-Contact Voltage Detector. From identifying voltage presence in outlets and switches to confirming proper wiring of GFCI breakers, the PK-110 kit boasts all the features needed to perform quick and safe voltage tests.

Specifications

FEATURE	AM-420	Best Accuracy
AC voltage	200.0 / 250 V	+/-(1.5% rdg + 4 LSD) @ 45 Hz to 400 Hz
DC voltage	200 mV 2.000 / 20.00 / 200.0 / 250 V	+/-(1.2% rdg + 2 LSD) @ 200 mV to 200 V
DC current	200.0 μA 2.000 / 20.00 / 200.0 mA	+/-(1.2% rdg + 5 LSD) @ 200 μA to 20 mA
Resistance	200.0 Ω 2.000 / 20.00 / 200.0 kΩ 2.000 MΩ	+/-(1.5% rdg + 5 LSD) @ 200 Ω to 200 kΩ
Continuity	Beeps at ≤10 Ω, off at >70 Ω
Diode test	Open-circuit voltage is around 1.5 V. Normal voltage is around 0.5 V to 0.8 V for silicon PN junction.
Battery test	1.5 V, 9 V	+/-(8.0% rdg + 1 LSD)
Data hold	•
Certification

FEATURE	VP-1000
Operating voltage range	90 V AC → 1000 V AC, 50/60 Hz
Sensitivity	Lights at approx. 10 mm (0.39 in) distance from a wire carrying 120 Vac
Operating temperature	0°C to +40°C (32°F to 104°F), ≤ 80% RH
Storage condition	-10°C to +50°C (14°F to 122°F), ≤ 95% RH
Operating altitude	2000 meters
Power supply	Two 1.5 V AAA batteries
Dimensions (LxWxH)	155 x 24.5 x 21.5 mm (6.10 x 0.96 x 0.85 in)
Weight	Approx. 50 g (0.11 lb) with batteries installed
Safety compliance	IEC 61010-1, UL 61010-1 2nd Ed. and CAN/CSA C22.2 No. 61010-1-04
EMC compliance	IEC 61326-1
Certification

FEATURE	ST-102B
Operating Voltage	110 – 125 V AC, 50 – 60 Hz
Wattage	0.3 W
Actuator	Black button
Indicator	Red LED, three lights, neon
Lamp lens Colors	One red, two amber
Six Conditions Indicated	Open ground, open neutral, open hot, hot/ground reverse, hot/neutral reverse, correct
Safety Compliance	C22.2 No. 160-M1985 / UL 1436 – 4th Edition
Certification

What’s Included

• AM-420
• ST-102B
• VP-1000
• Batteries
