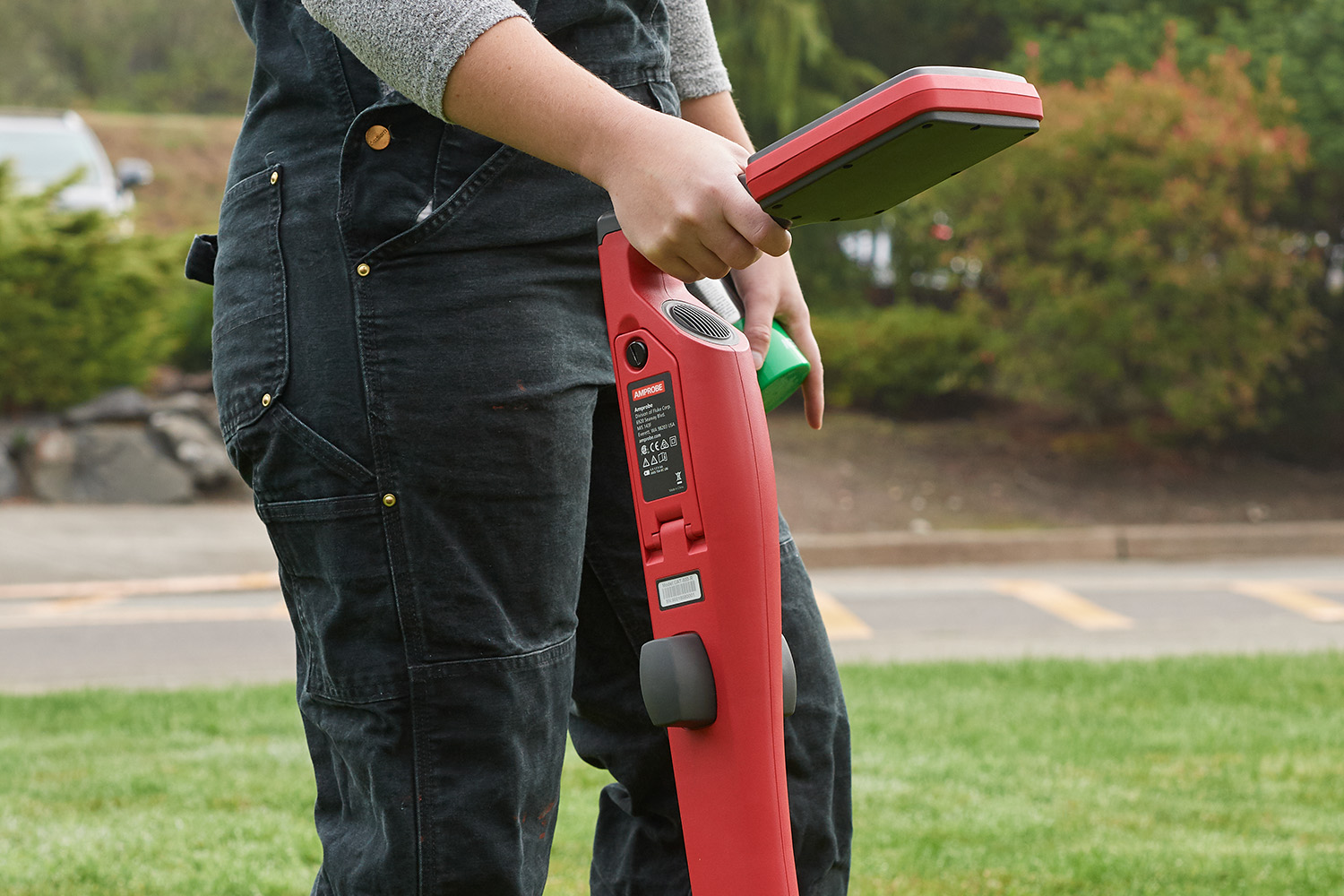

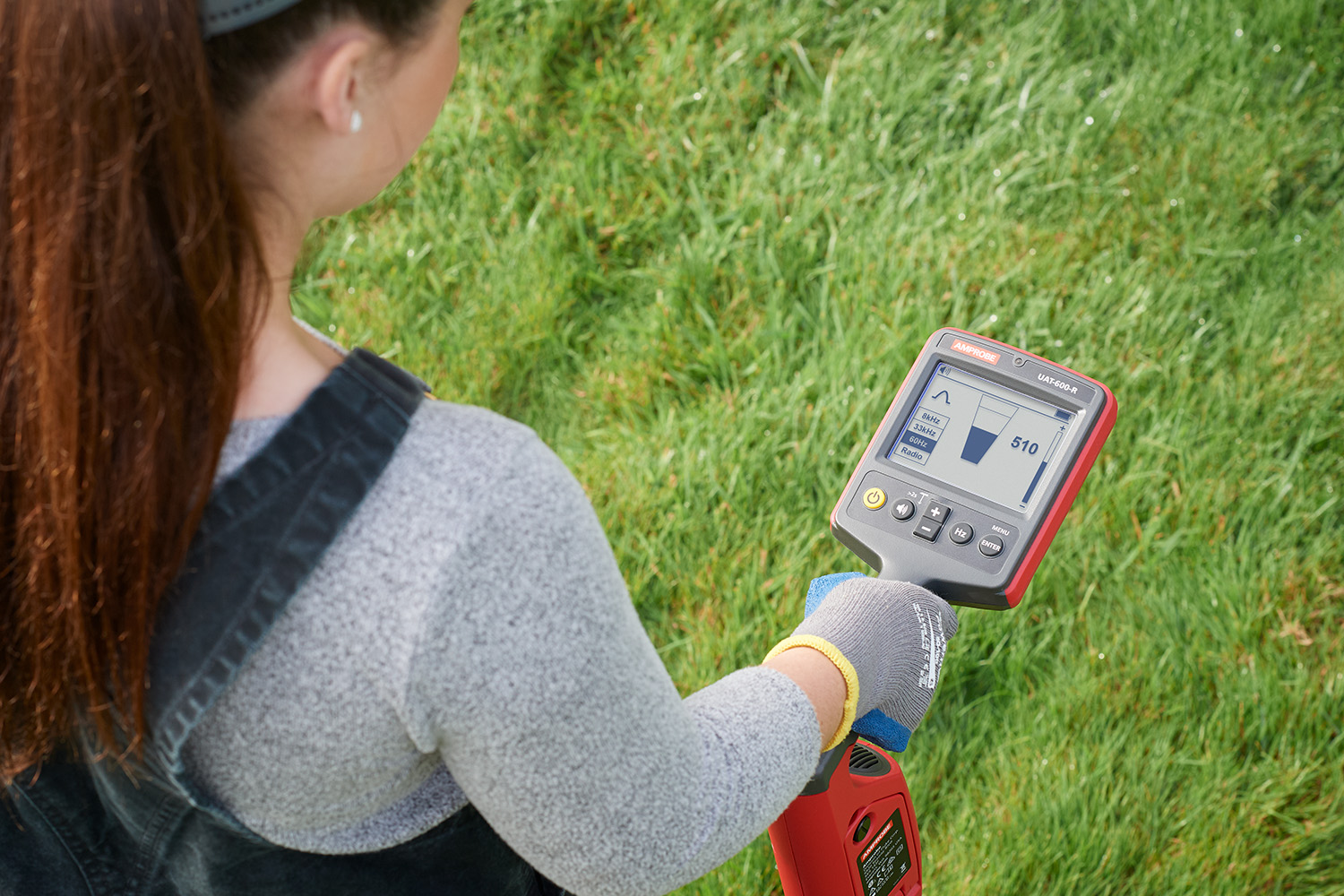

The Amprobe UAT-505 Underground Utility Locator Kit is the rugged, economical solution for locating underground energized and de-energized wires, cables and pipes. The Transmitter utilizes the proven 33 kHz frequency, which is ideal for most locating applications. With the Receiver, trace the signal in Induction or Direct Test Leads Connection Modes. The Receiver features fast sound and meter response and easy depth measurements to 20 feet at the push of a button, as well as highly sensitive Power and Radio Modes which detect energized wires and radio signals on underground lines.
| Measurement Category | N/A |
|---|---|
| Locates energized/de-energized wires, cables, pipes | • |
| Passive tracing - 50/60 Hz | • |
| Passive tracing - Radio | • |
| Active Tracing | 33 kHz (de-energized) 8kHz (energized system) |
| Active tracing - Induction mode (33kHz) | • |
| Depth measurement | Up to 20 ft (6 m) |
| Signal Clamp accessory | (optional accessory) |
| A-Frame accessory | (optional accessory) |
| Null and peak tracing options | • |
| Display | LCD |
| Sonde capable | • |
| Auto display backlight sensing (Receiver) | • |
| Features | UAT-600-R Receiver | UAT-500-T Transmitter |
| Measurement category | CAT IV 600 V | N/A |
| Operating voltage/current | 0 to 600 V | De-energized circuit only for Direct Connection Mode |
| Operating frequency/tracing modes | Active tracing: 33 kHz and 8 kHz Passive tracing: 50/60 Hz and Radio |
De-energized: – Induction Mode – Direct Connection Mode – Clamp Mode |
| Locating modes | Peak and Null | – |
| Depth measurement and accuracy | Up to 20 ft 4 in to 10 ft: pm; 3 % 10 ft to 20 ft: pm; 5 % |
– |
| Display backlight | Automatic | N/A |
| Audio indication | Increasing closer to the signal | Continuous Signal Mode: Continuous audio tone Pulse Signal Mode: Fast pulsed audio tone |
| Transmitting mode power output | – | Max. 1 watt |
| Output voltage | – | Max. 35 V rms |
| Output current | – | Max. 100 mA rms |
| Sensitivity adjustment (gain control) | Yes | – |
| Sensitivity at 1 m (typical) | Power: 2 mA Radio: 20 μA 8 kHz: 5 μA 33 kHz: 5 μA |
– |

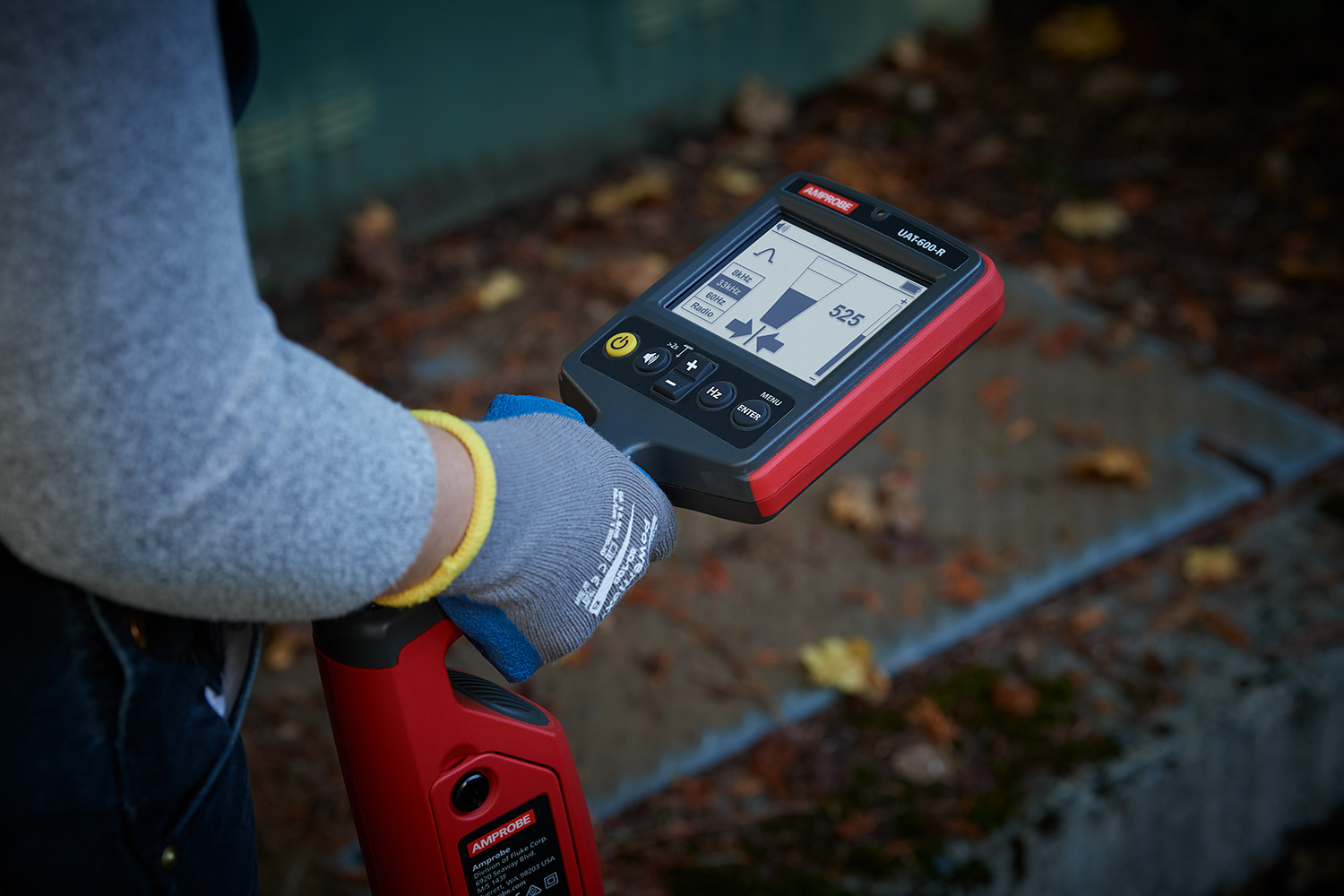

| Display | 4.3 in, 320 x 240 BW outdoor LCD display with auto backlight | N/A |
| Update rate | Instantaneous | – |
| Operating temperature and humidity | -4 °F to 122 °F (-20 °C to 50 °C), ≤90% RH | -4 °F to 122 °F (-20 °C to 50 °C), ≤80% RH |
| Storage temperature and humidity | -40 °F to 140 °F (-40 °C to 60 °C), ≤90% RH | -40 °F to 140 °F (-40 °C to 60 °C), ≤80% RH |
| Operating altitude | < 6561 ft (< 2000 m) | |
| Pollution degree | 2 | |
| Water and dust resistance | IP54 | |
| Power supply | (6) 1.5 V AA alkaline batteries | (4) 1.5 V D cell alkaline batteries |
| Auto power off | 15 minutes idle | – |
| Battery life | Approx. 35 hours at 70 °F (21 °C) (Typical) | Approx. 12 hours at 70 °F (21 °C) (Typical) |
| Agency approval |     |
|
| Safety compliance | IEC 61010-1, IEC 61010-2-033 CSA/UL 61010-1, CSA/UL 61010-2-033 |
IEC 61010-1, CSA/UL 61010-1 IEC 61010-031, CSA/UL 61010-031 (test leads) |
| Size (H x W x L) | Approx. 11.9 x 4.7 x 30.7 in (302 x 120 x 779 mm) | Approx. 18.1 x 3.5 x 2.6 in (460 x 90 x 65 mm) |
| Weight | Approx. 4.2 lb (1.9 kg) (batteries installed) | Approx. 3.9 lb (1.77 kg) (batteries installed) |
Optional Accessories:
