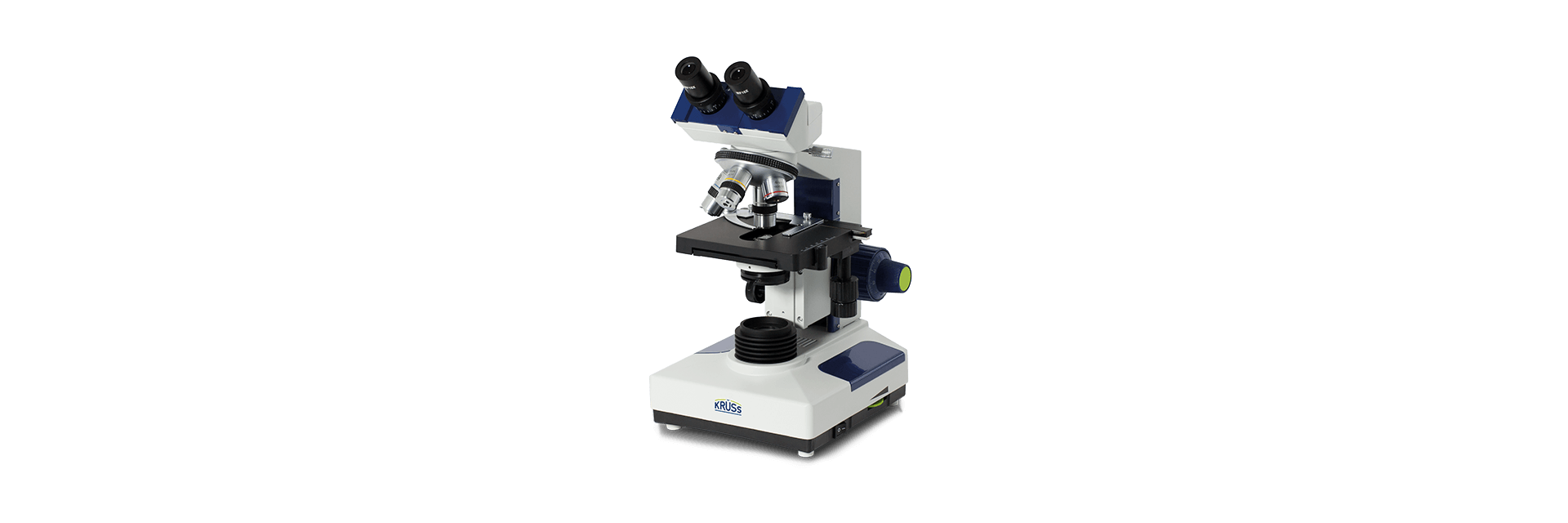

Robust and universal. This model is ideal for general microscopy in laboratories, schools and universities. The MBL2000 offers an extensive range of add-on options: For example,
with phase-contrast setting, a dark-field condenser, micrometre setup, planachromatic objectives and additional eyepieces. A binocular optical head offers inclined viewing and
interocular adjustment. A wide range of accessories is available for all models.
| MBL2000 | |
|---|---|
| BASIC EQUIPMENT | |
| OPTICAL HEAD | Inclined optical head, Symmetrical eye distance adjustment (55 – 75 mm), Dioptre compensation with scale |
| OBJECTIVE REVOLVER | Quadruple |
| OBJECTIVES | Achromatic 4x 0.10 NA 17.04 mm working distance 10x 0.25 NA 8.05 mm working distance 40x 0.65 NA 0.32 mm working distance 100x 1.25 NA 0.13 mm working distance |
| EYEPIECES | 10x, focal length 25 mm |
| CONDENSER | Double lens ABBE Condenser, NA 1.25, with centering, height adjustment and filter holder |
| ILLUMINATION | 6 V 20 W halogen bulb with brightness control. LED for models with the description LED |
| MICROSCOPE STAGE | With 0.1 mm increment memory scale, left-right range of movement 74 mm, forwards - backwards 30 mm. |
| STAND | Made of metal with coaxial coarse/fine knob with a range of 30 mm each. The right coarse adjustment knob comes with a mobility adjustment, the left coarse adjustment knob comes with a quick focusing adjustment |
| FURTHER EQUIPMENT | Iris diaphragme, pivoting filter holder, height adjustment, glass filters in blue, yellow and green |
| MODELS | |
| MBL2000-LED | Device with basic equipment and LED illumination |
| MBL2000-T-LED | With phototube and LED illumination |
| MBL2000-PL-LED | With planachromatic objectives and LED illumination |
| MBL2000-T-PL-LED | With phototube and planachromatic objectives and LED illumination |
| MBL2000-PL-PH_LED | With planachromatic objectives and phase contrast feature and dark-field and LED illumination |
| MBL2000-T-PL-PH-LED | With phototube, planachromatic objectives and phase contrast feature and LED illumination |
| MBL2000-T-B | With Phototube and setup for blood examination: 150 W adjustable cold light source and dark-field condenser |
| MBL2000-T-B-PL | With phototube, planachromatic objectives and setup for blood examination: 150 W adjustable cold light source and dark-field condenser |
| MODEL-SPECIFIC EQUIPMENT IN TYPE DESIGNATION | |
| T = Trinocular/phototube | |
| PL = Planachromatic objectives | |
| PH = Phase contrast feature with dark-field | |
| B = Blood test setup | |
| LED = LED Illumination | |
‘
‘
‘
