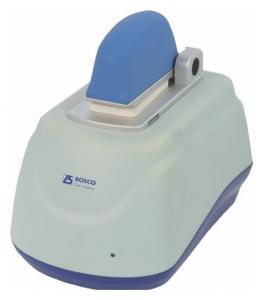

The Micro UV-Vis Spectrophotometer is a conventional laboratory equipment, not only widely used in molecular biological experiments, such as DNA, RNA, protein detection, but also used in absorbance detection for the general substance analysis. It includes three common detections to the nucleic acids, nucleic acid markers and proteins.
The variable path length of the Micro US-Vis Spectrophotometer realizes both the minimum sample volume detection as low as 0.5µL, suitable for precious samples, and the detection to the high concentration samples without dilution at all. Including the liquid drop, it builds in the standard cuvette detection module for more use.

Features:

High sensitivity
2028 linear CCD detection unit, new generation product of Hamamatsu, has higher sensitivity, accuracy as well as repeatability.

Stability for the long life
Long-life xenon flash lamp of Hamamastu ensures stability of detection and the long life of instrument.
The lifting detection base with sliding bearing structure has high precision, not easy to damage.

Variable pathlength
The mini. detection path length is 0.05mm; samples with high concentration can be detected directly without dilution. The max. ~15000ng/ mu LdSDNA, the smallest detection volume of precious samples is0.5µL. The user-defined settings are allowed if the path length is more than 1mm.The instrument has flexible and convenient detection function.

Ultra-wide wavelength range
With continuous wavelength range as 185-910nm, the instrument can detect various samples through selecting any band. It adapts to variety of detection requirements with wide range of near infrared wavelength.

Accurate path length
The stepper motor combined unique double track technology (DPTL), allows the precision of optical path length as 0.001mm, thus to achieve highly repeatability of absorbance detection.

Cuvette detection mode
The cuvette detection mode comes with magnetic stirring function.
User can set the heating function and stirring speed for dynamic analysis detection.
And the user can define different path length, such as 1mm, 2mm, 5mm,10mm.(for Model: N-1C – BOE 8637100 only)
Unique designed pipette holder for easy sample adding
Auxiliary holder for adding liquid can ensure the accuracy of adding liquid during micro measurement. It is also suitable for other mainstream brands of
micro UV-Vis Spectrophotometer in the market to achieve stable and simple process of adding liquid.

User-friendly software
The simple designed interface makes the software user friendly. It will save the detection datand name file automatically, and it is easy to review the
files. There is no need to worry about the loss of experimental data. Set U disk upgrade interface, and maintain the latest and most complete function
at any time.

Wireless connection
WiFi connected PAD to control the detection and results display and storage without need the cables. Dynamic detection realizes remote controlling and timing reading the results without manual intervention

Multi-functions:

Nucleic acid detection
Built-in common calculation formula of dsDNA, ssDNA, RNA, Oligo-DNA, Oligo-RNA, can get the concentration and purity of samples automatically.

UV visible custom scanning
In the full wavelength range, set the detected wavelength through increasing or decreasing wavelength with 1 nm as expected.

Nucleic acid fluorescence marker detection
Preinstall extinction factor of commonly used fluorescent dyes of dsDNA, ssDNA, RNA, Oligo-DNA, Oligo-RNA.

Protein detection
Can detect the concentration of protein solution, or detect protein concentration of dye marker. Built-in common detection methods of BCA, Bradford,
Lowry, Pierce 660nm.

Cell detection
Can detect absorbance value at 600nm automatically. Meanwhile, it can detect absorbance value at any band under set wavelength range.
