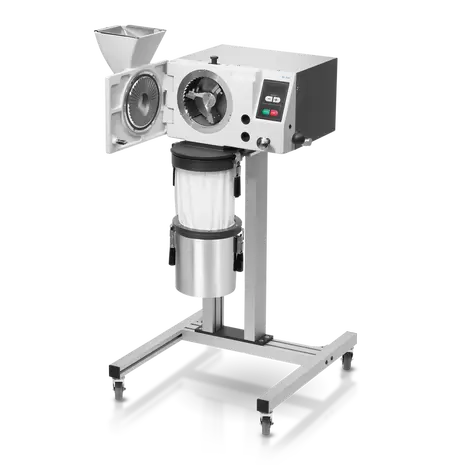

The Cross Beater Mill SK 300 is suitable for coarse and fine size reduction, either in batches or continuously. It can process medium-hard and brittle materials and is easy to operate.
For increased sample discharge and for processing heat-sensitive samples, an optionally available cyclone unit unit can be used instead of the gravity outlet.
cement clinker, chamotte, coal, coke, glass, granite, gravel, gypsum, minerals, ores, oxide ceramics, slag, soils, ...
To find the best solution for your sample preparation task, visit our application database.
| Applications | size reduction |
| Field of application | agriculture, chemistry / plastics, construction materials, environment / recycling, geology / metallurgy, glass / ceramics |
| Feed material | medium-hard, brittle |
| Size reduction principle | impact |
| Material feed size* | < 25 mm |
| Final fineness* | < 100 µm |
| Speed at 50 Hz (60 Hz) | 2000 - 4000 min-1 (in steps of 200 min-1) |
| Speed setting | yes |
| Rotor peripheral speed | 15.5 m/s .. 31 m/s |
| Types of rotors | stainless steel / cast iron |
| Material of grinding tools | hardened steel, stainless steel, cast iron, steel 1.1740 (for heavy-metal free grinding) |
| Sieve sizes | trapezoid holes 0.12 / 0.20 / 0.25 / 0.35 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm round holes 3.00 / 4.00 / 5.00 / 6.00 / 8.00 / 10.00 mm |
| Dust extraction unit | optional cyclone |
| Collector capacity | 5 l / optional: 30 l |
| Drive | 3-phase motor with frequency converter |
| Drive power | 1.1 kW |
| Electrical supply data | 200-240 V, 50/60 Hz |
| Power connection | 1-phase |
| Protection code | IP 41 |
| Power consumption | 1.5 kW |
| W x H x D closed | 600 x 1200 x 700 mm (with base frame) |
| Net weight | ~ 60 kg (with base frame) |
| Remark weight (without hopper etc.) | ~ 50 kg (without base frame) |
| Standards | CE |
*depending on feed material and instrument configuration/settings
Size reduction in the SK 300 takes place by impact effects. The feed material passes from the hopper directly into the center of the grinding chamber, where it is caught by the cross beater and ground between the baffle plates of the cross beater and the toothed grinding insert. As soon as the material is smaller than the aperture size of the bottom sieve used, it passes through the sieve and enters the collecting receptacle through the gravity outlet. The air drawn in through the hopper by the cross beater accelerates the discharge of the ground material. The airborne fine fraction is separated off by a downstream filter system. The optionally available cyclone separator enhances a cooling of the sample material and the cutting tools and improves the discharge of the sample from the grinding chamber.
