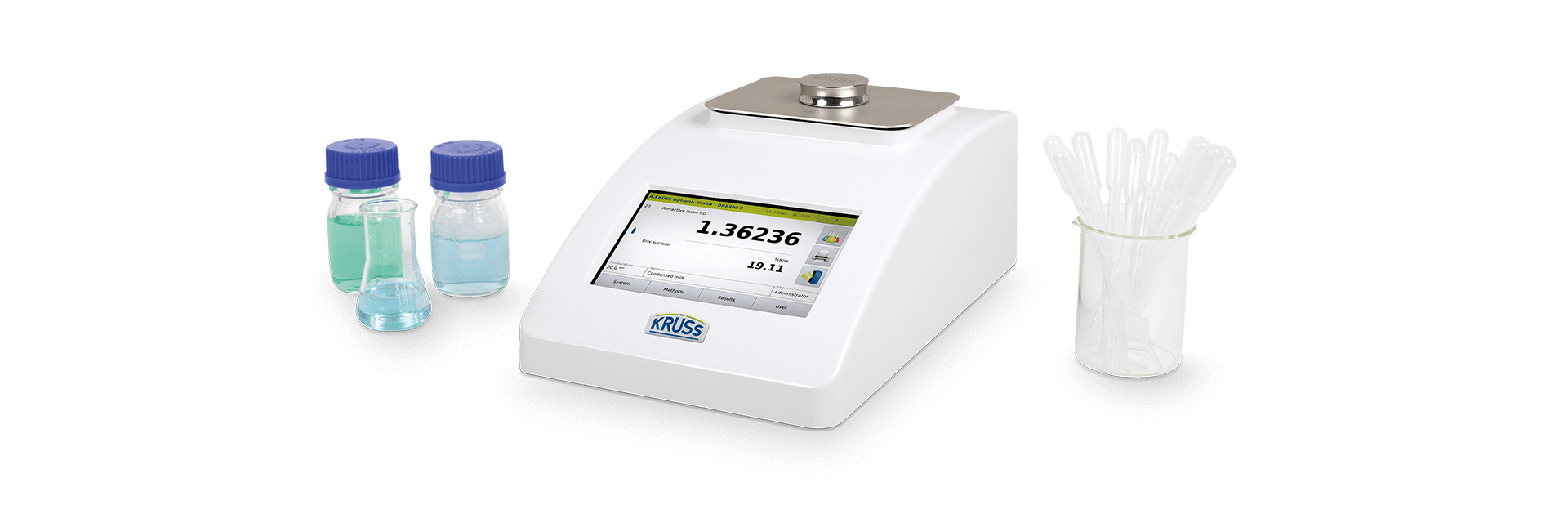

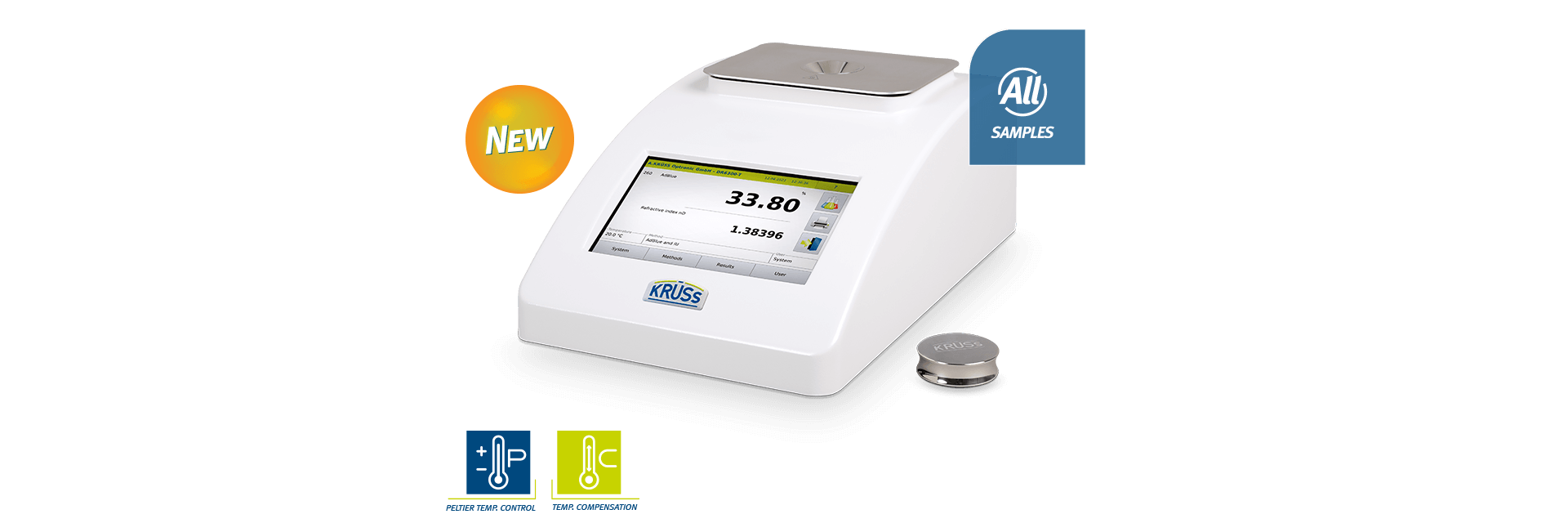

As a standard, the refractometer models DR6000-T and DR6000-TF are equipped with a Peltier element that controls the temperature of the sample up to 80 °C. There are four different models available for different requirements on accuracy, resolution and measurement range whereby you can access the same operation and functionality.
| DR6000-T | DR6100-T | DR6200-T | DR6300-T | |
|---|---|---|---|---|
| MEASUREMENT DATA | ||||
| SCALES | Refractive index (nD) Concentration of sucrose, glucose, fructose and invert sugar [%Brix], User-defined |
|||
| MEASUREMENT RANGE | nD 1.3200–1.5800 0–95 %Brix |
nD 1.3200–1.7000 0–95 %Brix |
nD 1.32000–1.58000 0–95 %Brix |
nD 1.32000–1.70000 0–95 %Brix |
| MEASUREMENT ACCURACY | nD ±0.0001 ±0.1 %Brix |
nD ±0.00002 ±0.02 %Brix |
||
| RESOLUTION | nD 0.0001 0.1 %Brix |
nD 0.00001 0.01 %Brix |
||
| MEASUREMENT PERIOD | approx. 4 s | |||
| MEASUREMENT PRISM | Sapphire | |||
| LIGHT SOURCE | LED | |||
| WAVELENGTH | 589 nm | |||
| TEMPERATURE DATA | ||||
| TEMPERATURE CONTROL | With integrated Peltier temperature control | |||
| TEMP. CONTROL RANGE | 10–80 °C | |||
| ACCURACY OF TEMP. CONTROL | ±0.1 °C | |||
| TEMPERATURE COMPENSATION | Can be activated (ICUMSA or freely definable) |
|||
| TEMPERATURE MEASUREMENT | With integrated temperature sensor Pt100 | |||
| TEMPERATURE MEASUREMENT RANGE | 10–80 °C | |||
| TEMP. MEASUREMENT ACCURACY | ±0.1 °C | |||
| TEMP. MEASUREMENT RESOLUTION | 0.1 °C | |||
‘
‘
‘
