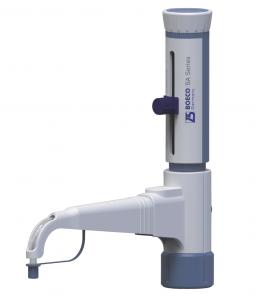

BOECO SA Series Bottle-top Dispenser
Innovative Design
- The unique piston mechanism enables cleaning of the piston and cylinder without affecting the calibration.
- The spring-less valve design ensures smooth operation and high chemical resistance.
Easy Handling
- The discharge tube rotates 360°, ensuring the bottle label remains visible at all times.
- The volume setting is easy to adjust with a locking mechanism.
- The telescopic filling tube is compatible with various reagent bottle sizes.
- Includes 4 additional adapters for common bottle sizes.
- Fast priming and easy dispensing for efficient operation.
Key Features
- Exceptional chemical resistance for a wide range of applications.
- The fluid path remains visible at all times for easy monitoring.
- Built for robustness and long-lasting performance.
- Simple maintenance and cleaning process.
- Can be easily calibrated and adjusted to meet ISO 8655-5 standards.
- Autoclavable for sterile applications at 121°C.
Safety Features
- Replaceable filling and discharge valve with a safety ball for added protection.
- The glass barrel is shielded by a transparent plastic sleeve to protect users from cuts and splashes in case of breakage.
- Drip-free discharge tube holder to limit tube movement and ensure safe operation.
Applications The BOECO SA Series dispenser is ideal for dispensing aggressive reagents directly from the supply bottle, including:
- Concentrated acids and bases like H3PO4, H2SO4 (with some exceptions such as HCl, HNO3, HF, etc.), saline solutions, and various organic solvents.
- It is particularly useful for trace analysis, dispensing high-purity and concentrated acids, salt solutions, alkalis, and many organic solvents, including hydrogen peroxide and bromine.
Materials in Contact with Media
- Borosilicate glass, Al2O3-ceramic, PFA, FEP, PTFE, ETFE, and PP (bottle screw cap).
Operating Limits and Exclusions
- Temperature range: +15°C to +40°C
- Maximum steam pressure: 500 mbar
- Maximum viscosity: 500 mm²/s
- Maximum density: 2.2 g/cm³
- Liquids that may damage the materials: ETFE, FEP, PFA, PTFE (e.g., dissolved sodium azide), borosilicate glass (e.g., hydrofluoric acid), hydrochloric acid > 20%, nitric acid > 30%, tetrahydrofuran, trifluoroacetic acid, explosive liquids (e.g., carbon disulfide), suspensions (e.g., charcoal), and liquids attacking PP (bottle screw cap).
Included Items
- BOECO SA Series Bottle-Top Dispenser, complete with 4 adapters (PP), telescopic filling tube, spanner, instruction manual, quality certificate, and calibration report. Reservoir bottle is not included.
Code |
Volume |
Dispenser |
Adapters |
Increment |
Inaccuracy |
Imprecision |
BOE 9680002 |
0.25 - 2.5 ml |
32 |
28/38/40/45 |
0.05 ml |
± 0.6 % |
± 0.2 % |
BOE 9680005 |
0.5 - 5.0 ml |
32 |
28/38/40/45 |
0.10 ml |
± 0.5 % |
± 0.1 % |
BOE 9680010 |
1.0 - 10.0 ml |
32 |
28/38/40/45 |
0.20 ml |
± 0.5 % |
± 0.1 % |
BOE 9680025 |
2.5 - 25.0 ml |
32 |
28/38/40/45 |
0.50 ml |
± 0.5 % |
± 0.1 % |
BOE 9680050 |
5.0 - 50.0 ml |
32 |
28/38/40/45 |
1.00 ml |
± 0.5 % |
± 0.1 % |
‘
‘
‘
