Deskripsi produk

Order no.: L001077

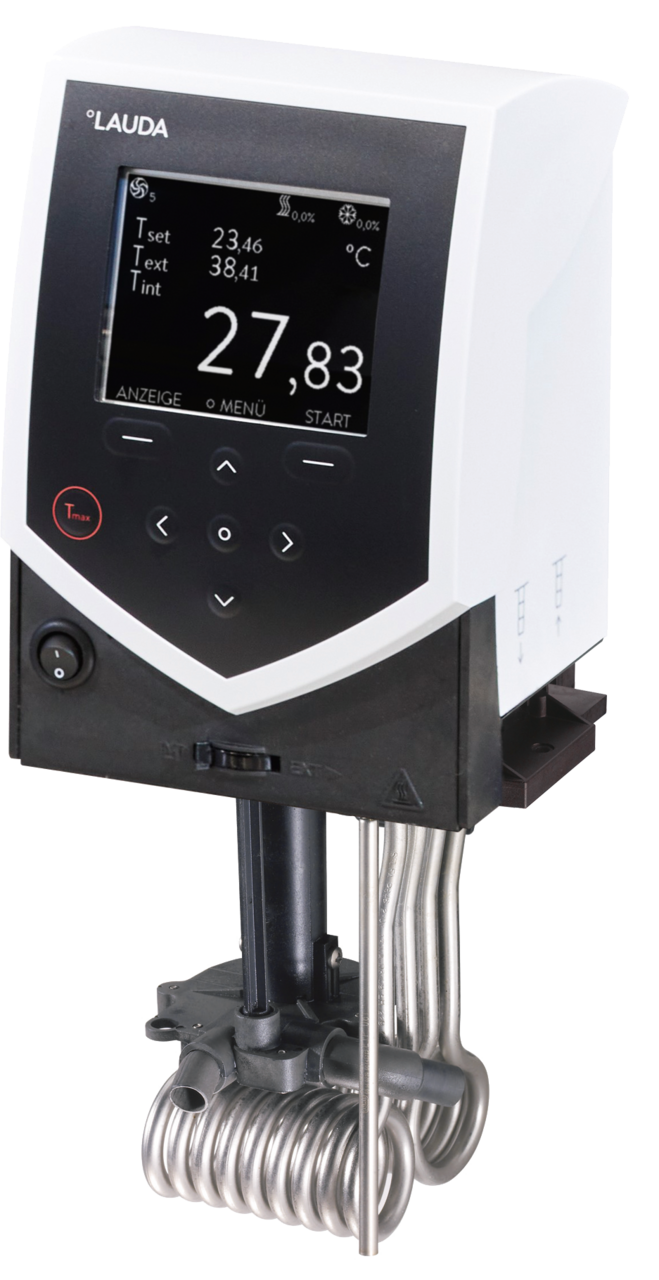

The Gold and Silver control heads of the LAUDA ECO immersion thermostats are easy to operate, and a mini-USB interface is included as standard with both control heads. Additional interfaces are available as modules.

Features

Immersion thermostat with latest microprocessor technology
Easy input via cursor and soft keys. Additional Tmax key for overtemperature protection
Vario pump with six adjustable performance levels
Upgradeable with an interface module (analogue module, contact module, RS 232/485 module, Profibus, Ethernet-USB module)
With screw clamp for bath vessels with a wall thickness of up to 25 mm and an immersion depth of min. 150 mm
Coloured TFT display for simultaneous indication of actual & set values and graphic illustration of the temperature profile
Fully electronic continuous controller with PID action
Easy control of the flow rate between internal and external circulation during operation without contact with the bath
Upgradeable with Pt 100/LiBus module for external control and remote control via Command console
User friendly menu navigation in plain language
Safety class III for operation with flammable and non-flammable liquids. Over-temperature cut-out adjustable via menu
USB interface as standard
Programmer with 150 temperature/time segments that can be separated into 5 programs

Working range

Min. working temperature

20 °C

Max. working temperature

200 °C

Temperature stability

0.01 ± K

Technical data (according to DIN 12876)

Working temperature range : 20 ... 200 °C
Ambient temperature range : 5 ... 40 °C
Temperature stability : 0.01 ± K
Heater power max. : 2.6 kW
Max. power consumption : 2.7 kW
Current consumption : 12 A
Max. discharge pressure : 0,6 bar
Max. pump flow pressure : 22 L/min
Dimensions (WxDxH) : 130 x 135 x 325 mm
Weight : 3 kg
Power supply : 230 V; 50/60 Hz
Power plug : Power cord with angled plug (CEE7/7)
'
'
'
