AQ-10 Air Quality Particulate Sensor

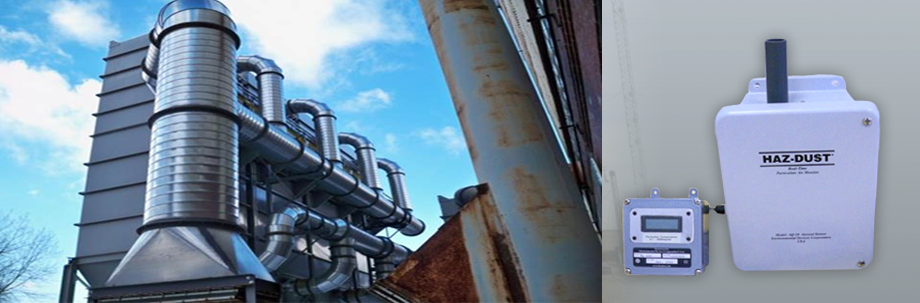

Haz-Dust™ Model AQ-10 Air Quality Particulate Sensor is a versatile transducer designed to continuously monitor for the presence of airborne particles. The AQ-10 is calibrated for OSHA and EPA regulations. Suitable for monitoring emissions from cyclone, precipitators, bag houses or any dust control device. The AQ-10 ideal for monitoring air quality in underground transportation systems, ventilation systems, indoor workplace or any other application where immediate data on smoke, dust, fumes or mists is needed.

Applications

• Multipoint monitoring of in-plant dust generating processes
• Activates air cleaners/ventilation systems
• Monitor in-line filter intergity
• Aerosol exposure studies
• Dry solids process control

Features

• Flex Design
• Analog Output
• Multipoint
• Alarm Output
• Alarm Output

Specifications

NEMA 4X Housing

Sensing range: .01-200, .001-20.0 , .01-200.0, mg/m³

PM size range: .1-50 µm

Power: 110 or 220VAC

Alarm output: 7 VDC

Signal output: 4-20mA 0-1 volt (optional)

Operating temp: -4°F to 150°F

Weight: 3 lbs

Dimensions: 7.5 x 4.5 x 4 in.
