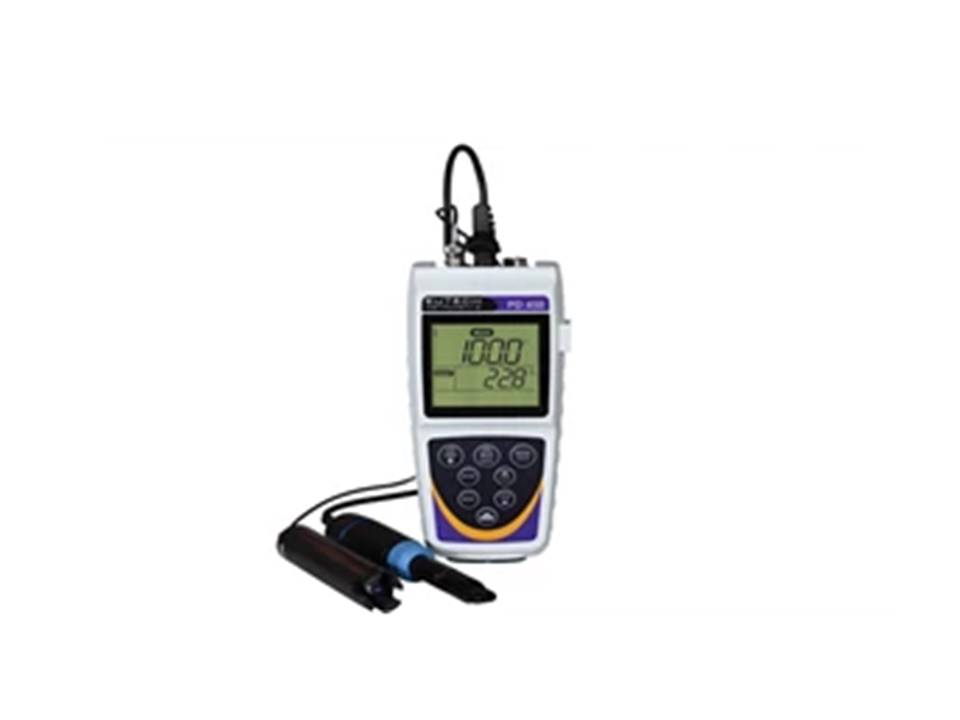

Spesifikasi Eutech PD450 pH/ mV/ Dissolved Oxygen/ Temperature (EC-PDWP45004K):
Specification
Model : PD450
pH
Range : -2.00 to 16.00 pH
Resolution : 0.01 pH
Accuracy : ±0.01 pH
Calibration : Up to 6 points: USA, NIST, DIN or custom
mV
Range : ±2000 mV
Resolution : 0.1 mV ±999.9 mV; 1 mV beyond
Accuracy : ±0.2 mV +2 LSD or +0.5 % of reading; whichever is greater
Calibration : ±200 mV
Dissolved Oxygen
Range : 0 to 200 %; 0 to 20 ppm/mg/L
Resolution : 0.10 %; 0.1 ppm/mg/L
Accuracy : ±2 %; ±0.1 ppm or mg/L up to 8; ±0.2 ppm or mg/L above 8
Calibration : Zero and saturation
Temperature
Range : -10.0 to 110.0 ºC (14.0 to 230.0 ºF)
Resolution : 0.1 ºC/ºF
Accuracy : ±0.5 ºC; ±0.9 ºF
Calibration : Offset in 0.1 increments, ±10 ºC or ±18 ºF
Others
Display : Custom LCD with backlight
Memory : Stores up to 500 data sets
Output : USB or RS232
Real-Time Clock : Time and date stamp on calibration and stored data
Temperature Compensation : Automatic or manual from -10 to 110 ºC
Pressure & Salinity Compensation : Manual
Power : Two AA batteries (included), >100 hours (without backlight); AC adapter (optional)
Dimensions (L x W x H)
Meter: 7 7/8" x 3 1/8" x 2 1/4" (20 x 8.3 x 5.7 cm)
Boxed: 9 1/8" x 9 1/8" x 2 3/4" (23 x 23 x 7 cm)
Weight : Meter: 1 lb (0.5 kg);Boxed: 1.4 lb (0.7 kg)
Complete with:
- PD 450 Meter Kit: Meter, pH electrode, RDO electrode with sensor cap, two AA batteries, hard carry case, USB cable, RDO stainless steel weight/guard, RDO calibration chamber, calibration solutions
Order Information
ECPDWP45000 : PD 450 Meter Only: Meter, two AA batteries
ECPDWP45004 : PD 450 Meter & Electrodes: Meter, pH/ATC electrode, RDO electrode with sensor cap, two AA batteries
ECPDWP45004K : PD 450 Meter Kit: Meter, pH electrode, RDO electrode with sensor cap, two AA batteries, hard carry case, USB cable, RDO stainless steel weight/guard, RDO calibration chamber, calibration solutions
Electrodes
ECDA9350603B : Replacement pH electrode, submersible, single-junction, ABS, 26 mm diameter, BNC, 3 m cable
RDO3M : RDO probe, 3 m (10 ft) cable
RDO6M : RDO probe, 6 m (20 ft) cable
RDO15M : RDO probe, 15 m (50 ft) cable
Accessories
RDOCAP : Replacement RDO sensor cap
RDOWEIGHT : RDO weight/guard, screw thread to attach to probe
RDOCALCHAMBER : Calibration chamber
60X426401 : Optional 100 / 240 VAC SMPS power adapter, 9 V, 6 W
MINIPHONEUSB : USB cable for 450 series, mini phone plug to USB
30X427301 : RS232 cable for 450 series, mini phone plug to RS232 9-pin (F)
ECDOZEROSOLN : Zero oxygen solution, 0 % DO, 480 mL
