True RMS Power Clamp (Wireless)

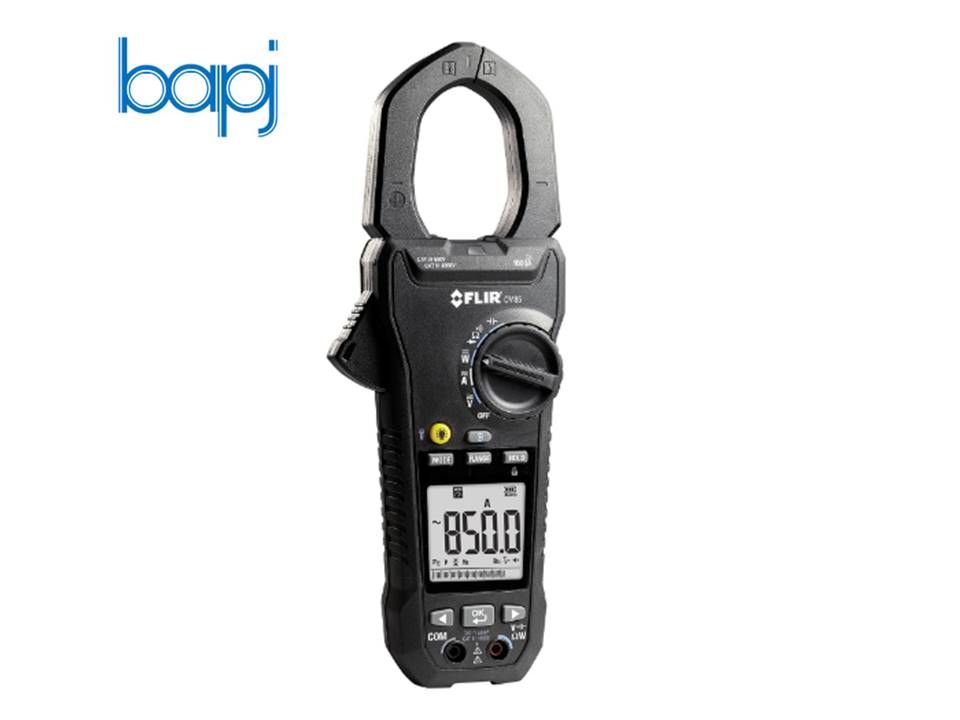

FLIR CM85
Spesifikasi FLIR CM85:
The FLIR CM85 is an industrial power clamp meter with advanced power analysis and variable frequency drive (VFD) filtering functions required by electrical troubleshooters for full-scale equipment. The CM85 helps users accurately analyze voltage in complex machinery by including harmonics, inrush, current, and phase rotation testing. The meter also features Bluetooth® for remote viewing and data sharing from compatible mobile devices, and METERLiNK technology to wirelessly embed readings into infrared images on compatible FLIR cameras.
- SUPERIOR ACCURACYThe True RMS clamp meters provide VFD Mode for superior accuracy while working on VFD-controlled equipment, and advanced power efficiency and harmonics measurements enable system-level performance analysis.
- RELIABLE PERFORMANCEFeatures Inrush mode to capture AC Current spikes during start-up, and phase-rotation testing to ensure motor and power source alignment.
- VIEW DATA REMOTELY, SHARE INSTANTLYView readings from your mobile device via Bluetooth; METERLiNK technology wirelessly embeds data into thermal images on compatible FLIR cameras.
SPECIFICATIONS
- Jaw Opening
- 45 mm (1.77")
- AC/DC Voltage
- Range 1000 V / Basic Accuracy +/- 1% / 0.7%
- AC VFD Voltage
- Range 1000 V / Basic Accuracy +/- 1%
- AC/DC Current
- Range 1000 A / Basic Accuracy +/- 2%
- AC/DC Voltage
- Range 1000 V / Basic Accuracy +/- 1% / 0.7%
- Active Power
- Range 10 kW to 1000 kW, (10 V, 5 A min) / Basic Accuracy +/- 3%
- Capacitance
- Range 3.999 mF Max / Basic Accuracy +/- 1.9%
- Category Rating
- CAT IV-600V, CAT III-1000V
- Continuity Threshold
- Range 30 Ω / Basic Accuracy +/- 1%
- Diode Test
- Range 0.4 to 0.8 V / Basic Accuracy +/- 0.1V
- Frequency
- Range 20.00 Hz to 9.999 kHz / Basic Accuracy +/- 0.5%
- Harmonics
- Range 1st-25th Order / Basic Accuracy +/- 5%
- Inrush Current
- Range 1000 ACA Max (Integration Time 100 ms) / Basic Accuracy +/- 3%
- Resistance
- Range 99.99 kΩ Max / Basic Accuracy +/- 1%
- Total Harmonic Distortion
- Range 0.0 to 99.9% / Basic Accuracy +/- 3%
- Bluetooth range max
- 10 m (32ft)
- Jaw Opening
- 45 mm (1.77")
- Warranty
- Limited Lifetime
