Thermal Camera with Wireless Connectivity for iOS® and Android™ Smart Devices

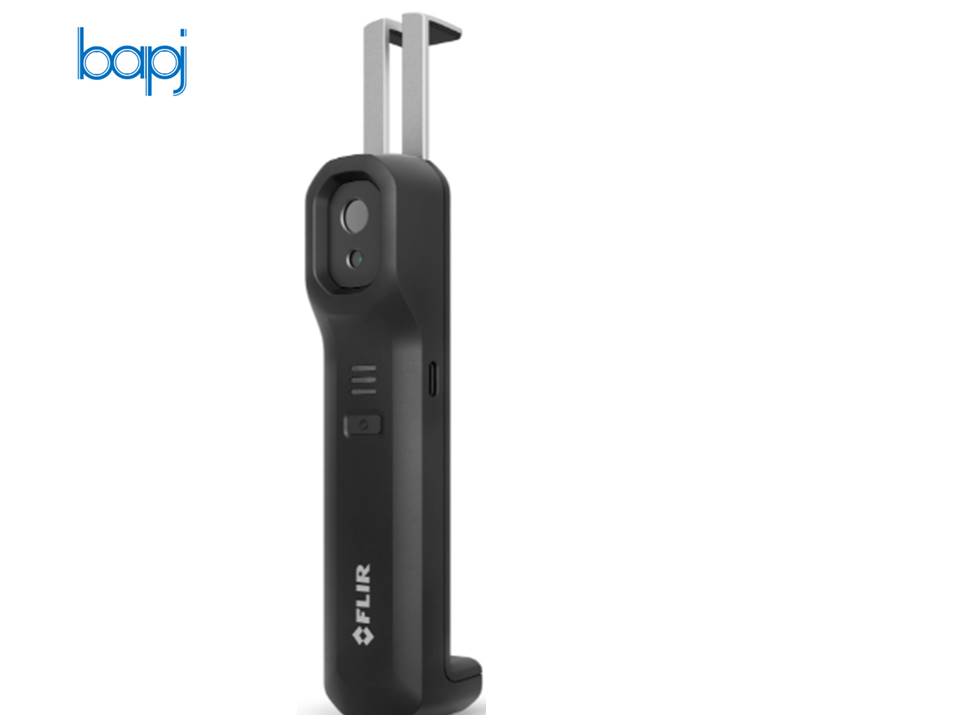

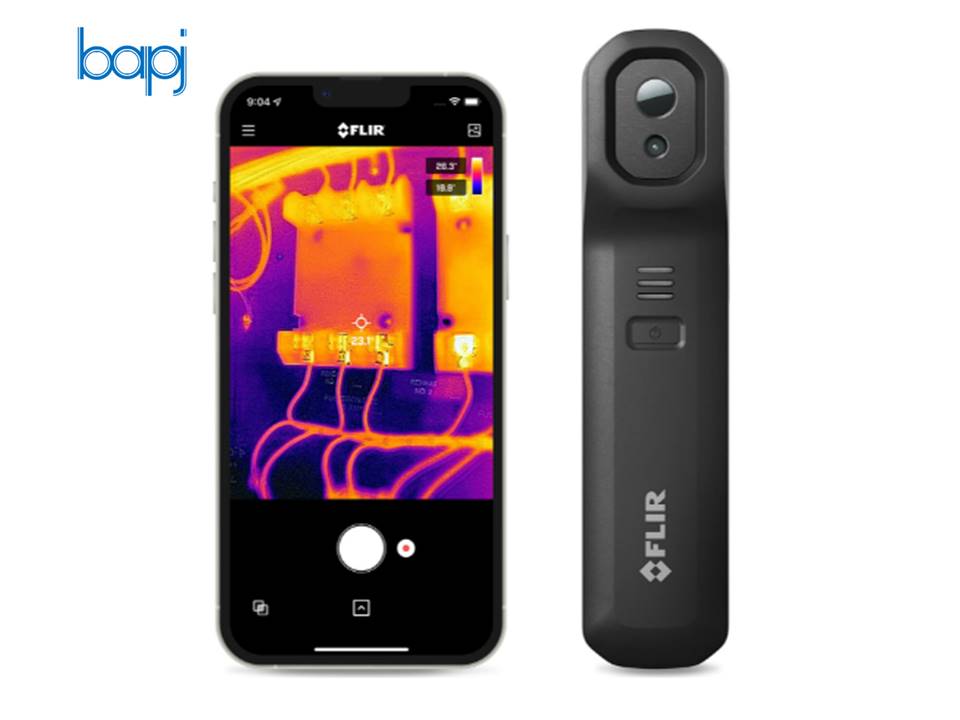

FLIR ONE® Edge Pro
Spesifikasi FLIR ONE® Edge Pro:
The innovative FLIR ONE® Edge Pro wirelessly connects to your smart device so you can easily inspect targets that are out of reach – or clip it onto your phone or tablet for one-handed operation. Combining VividIR™ and FLIR MSX® (Multi-Spectral Dynamic Imaging), you can take crisp thermal images from any position or angle with a natural grip. FLIR Ignite™ allows you to instantly upload images and videos from your FLIR ONE® Edge Pro to the cloud where you can edit, organize, store, and share data. Compatible with iOS and Android smartphones and tablets, the FLIR ONE® Edge Pro can be used without limitations, regardless of carrier, operating system, or future smart device upgrades.
- EASILY INSPECT ANYWHEREConveniently scan targets out-of-reach or out-of-view from any angle, or clip the FLIR ONE® Edge Pro to your smart device for one-handed operation
- HIGH-QUALITY IMAGES AND PERFORMANCETake high-quality thermal images, easily identify targets, and recognize where problems are located with FLIR MSX, VividIR, and 160 × 120 (19,200 pixels) thermal resolution
- ENHANCE YOUR WAY OF WORKINGFeaturing FLIR Ignite cloud service, compatibility with FLIR Thermal Studio, and step-by-step guidance for FLIR-specific apps, The FLIR ONE® Edge Pro can help you improve efficiency and scale your thermography inspection program
FLIR IGNITETM
Improve your team’s efficiency and capabilities with the FLIR Ignite cloud solution. Directly upload, organize, and share images from your Wi-Fi connected FLIR camera. Keep your data safe in one place and easily accessible from any device.
SPECIFICATIONS
- Thermal Resolution
- 160 × 120 (19,200 pixels)
- Battery Life
- Approximately 1 hour 30 minutes
- Object Temperature Range
- -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
- Accuracy
- ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
- Operating Temperature
- -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
- Spot Meter
- Hottest, Coldest and 3 spot measurement
- Adjustable MSX distance
- 30 cm — Infinity
- Focus
- Fixed 30 cm — Infinity
- Frame Rate
- 8.7 Hz
- HFOV/VFOV
- 54° ±1° / 42° ±1°
- Image Modes
- Infrared, visual, MSX
- Palette
- Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
- Shutter
- Automatic/Manual
- Thermal Resolution
- 160 × 120 (19,200 pixels)
- Thermal Sensitivity/NETD
- 70 mK
- Thermal Sensor
- Pixel size 12 µm, 8 — 14 µm spectral range
- Visual Resolution
- 640 × 480
- VividIR
- Yes
- Battery charge time
- 60–90 min for fully charged
15 min charging, from empty battery, gives 40 min operating time
- Battery Life
- Approximately 1 hour 30 minutes
- Charging Method
- Female USB-C (5V/1A)
- Accuracy
- ±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
- Measurement Corrections
- Emissivity; Reflected apparent temperature (22°C / 72°F)
- Object Temperature Range
- -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
- Spot Meter
- Hottest, Coldest and 3 spot measurement
- Battery charge monitor
- 0 — 100%
- Clip Span
- 130 mm (min) / 195 mm (max)
- Device Compatibility
- iOS (version 15 and later) or Android (version 11 and later) smartphones and tablets
- Dimensions (H x W x D)
- 37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in)
- Remote Operation
- Up to 5 m (16.4 ft) from smart device via Wi-Fi
- Weight
- 153 g (5.4 oz)
- Certifications
- RoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU, IP54
- Drop test
- Drop from 2 m (6.56 ft)
- Emissivity Settings
- Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
- Non-Operating Temperature
- -40°C to 70°C (-40°F to 158°F)
- Operating Temperature
- -10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
- Bluetooth
- Yes
- Capture modes
- Video, Still image
- Charging
- Female USB-C (5V/1A)
- File Formats
- Radiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))
- WiFi
- IEEE 802.11 a/b/g/n
