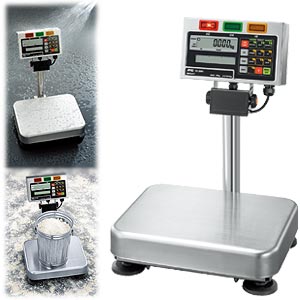

FS-i Series/FS-D IP65 Dust and Waterproof Checkweighing Scales

Update Terakhir

Negara Asal

Jepang

Pembelian minimum

1

Harga

Nego

Kategori

AND

Minta Penawaran

Sharing:

Deskripsi produk

Features

Ultra high-speed weighing with 0.5-second stabilization

Distinct tricolor LEDs for fast and error-free comparator judgment

Take-away checkweighing using the auto-tare function

Washable and hygienic stainless steel (SUS304) display unit and weighing pan

Waterproof and corrosion-resistant load cell*

Fast data acquisition with a refresh rate of 20 times/second

Large memory of 100 comparator settings

60-segment analog sweep (horizontal bar) display for intuitive filling control

Simple operation mode to prevent accidental changes to the settings

Sealed Lead Acid (SLA) rechargeable battery for approx. 80 hours operation (optional)

The display unit available separately as an indicator for check weighing scales (FS-D)

Universal Flexi Coms (UFC) function to edit serial data output/printout format (Relevant Software: WinCT-UFC)

Specifications

Model	Capacity	Readability (Selectable by user)	Pan Size (mm) W x D
FS-6Ki	6 kg	0.002 kg 0.001 kg 0.0005 kg	250 x 250
FS-15Ki	15 kg	0.005 kg 0.002 kg 0.001 kg	250 x 250
FS-30Ki	30 kg	0.01 kg 0.005 kg 0.002 kg	380 x 300

**** g, oz, lb and lb-oz also available

Specifications (FS-D)

Input sensitivity	0.2 µV / d (d: the smallest readability of kg)
Input signal range	0 mV to 13 mV
Load cell excitation voltage	DC 5V ± 5% (no remote sensing)
Load cell drive capacity	Up to four 350 Ω load cells
Temperature coefficient	Zero: ±(0.2 µV ± 0.001% of zero adjustment voltage) / °C (typ.) Span: ±0.001% / °C of reading (typ.)
Linearity	±0.01% of full scale

‘
‘
‘
