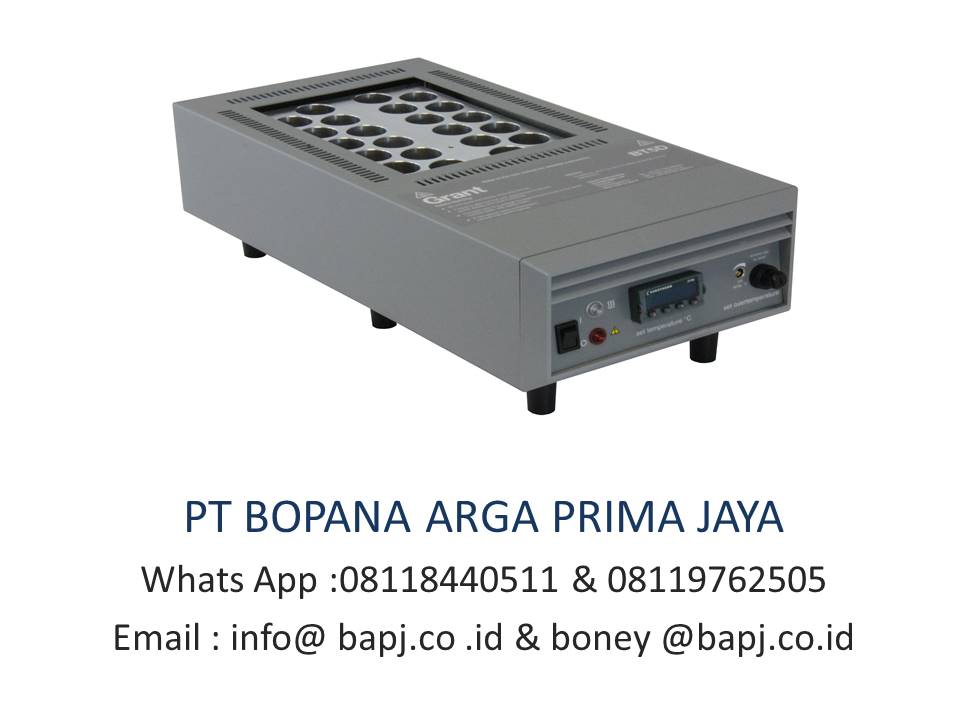

G GRANT BT5D High Temperature Dry Block Heaters
The Grant BT5D is a convenient digitally controlled dry block heating system for high temperature applications where the use of a bath is not desirable.
It provides temperature control without the need for fluids and reduces the risk of contamination.
| BT5D-16 | BT5D-26 | |
| Dimensions (h x d x w) | 145 x 420 x 205mm | 145 x 420 x 205mm |
| Capacity | 38 x ø16 x 60mm (depth) tube | 22 x ø26 x 60mm (depth) tube |
| Temperature range | Ambient +10 to 400ºC | Ambient +10 to 400ºC |
| Stability (DIN 58966) | 0.5±ºC (up to 300ºC) | 0.5±ºC (up to 300ºC) |
| Uniformity | ±1% | ±1% |
| Display | LED | LED |
| Display resolution | 1ºC | 1ºC |
| Alarms | High and low | High and low |
| Heat up time (ambient +10 to 400ºC) | 1 hour 40 minutes | 1 hour 40 minutes |
| Timer | 1 to 9999 minutes | 1 to 9999 minutes |
| Safety | Adjustable cut-out | Adjustable cut-out |
| Electrical power - 230V | 750W | 750W |
| Electrical power - 120V | 750W | 750W |
| Supply voltage | 120 or 230V (50/60Hz) | 120 or 230V (50/60Hz) |
| Weight | 7.5kg | 7.5kg |
Standard probe for in-sample or in-block temperature control; encased in stainless steel sheath, ø3mm x 30mm long, with 350mm of cable.
'
'
'
