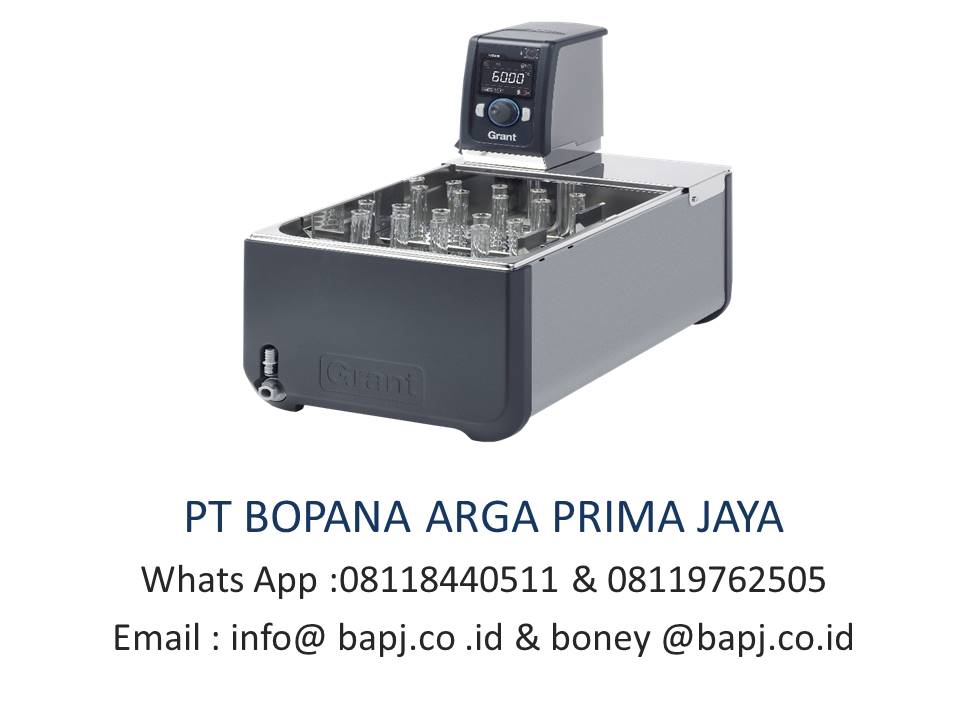

G GRANT Optima TXF200 Heated Circulating Bath
The Grant TXF200 series of digital heating circulating baths for sophisticated applications requiring complex programming and/or ultra-precise temperature control in the range of -15°C to 200°C.
Applications
- Industrial labs - thermostat calibration, haze analysis (brewing), temperature probe calibration and material testing
- University research - temperature control of external equipment such as spectrophotometers and refractometers
- Circulation of temperature control fluid to jacketed vessels
About
The TXF200 heating circulator can be used in combination with any Grant stainless steel or with a T-CLAMP for independent use of virtually any vertical sided tank.
- Cooling/heating range -15°C to 200°C
- Cooling achievable with optional immersion cooler (see accessory options)
- Stability ±0.01ºC / Uniformity ±0.05ºC
- Tank options 5L to 38L
- Powerful integral pump for external fluid circulation
- Large, bright full colour display with a choice of 5 languages
- 5 point user calibration
- Low-liquid detection (float switch)
- Memory capacity for 10 programs with 100 segments
Products in the range
- TXF200-ST5 - 5 L
- TXF200-ST12 - 12 L
- TXF200-ST18 - 18 L
- TXF200-ST26 - 26 L
- TXF200-ST38 - 38 L
Specifications
| Dimensions (h x d x w) |
342 x 172 x 141mm |
| Stability (DIN 12876) @70ºC |
0.01±ºC |
| Uniformity (DIN 12876) @70ºC |
0.05±ºC |
| Setting resolution |
0.1ºC (0.01 with Labwise®) |
| Display |
Full colour QVGA TFT |
| Timer function |
1 minutes to 99 hours 59 minutes |
| No. of temperature presets |
3 |
| Re-calibration points |
5 |
| Socket for external probe (PEP, SEP) |
• |
| Communications interface |
USB, RS232 |
| Programmable |
Direct via user interface or remote via PC/ laptop 10 programs/ 100 segments |
| Relays |
1 |
| Safety - over temperature |
Adjustable cut-out |
| Fluid level - float |
• |
| Language options |
EN, FR, DE, IT, ES |
| Alarms (can be configured to switch a relay)High and low |
High and low |
| Heater power - 230V |
1840W |
| Heater power - 120V |
1445W |
| Electrical power - 230V |
2000 (50-60Hz) |
| Electrical power - 120V |
1500 (50-60Hz) |
| Height above tank rim |
200mm |
| Depth below tank rim |
145mm |
| Maximum pressure (water) |
530mbar |
| Maximum flow (water) |
22L/min (adjustable flow rate) |
| Pump connector 6mm bore |
Fits 9mm inner diameter tubing |
| Pump connector 11mm bore |
Fits 15mm inner diameter tubing |
| Weight |
2.6kg |
'
'
'
