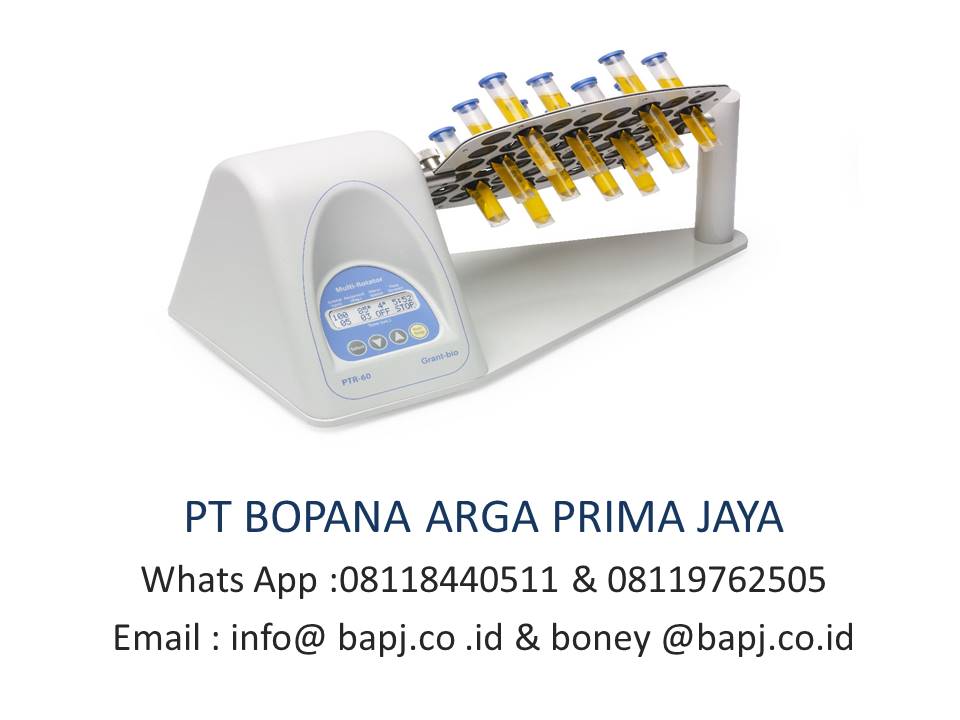

G GRANT PTR-35 and PTR-60 360° Vertical Multi-function
The PTR Series are compact variable-speed, variable-angle vertical rotators providing vertical rotation, reciprocation and vibration.
Applications
- Suitable for 360° vertical mixing applications including immuno precipitations and other affinity matrix applications, prevention of blood coagulation, latex diagnostics. Used in a variety of applications, from hybridisation reactions, cell growth, soft extraction and homogenisation of biological components in solution as well as reactions for binding and washing magnetic particles.
About
Features include:
- 360° vertical rotation - creates long wave motion for mixing large particles
- Reciprocation - creates long and medium wave motion for medium and large particles
- Vibration - creates short wave motion for mixing for small particles
- Pause
All actions may be set for continuous or timed operation, and individual phases may be linked together for absolute flexibility.
Products in the range
Specifications
|
PTR-35 |
PTR-60 |
| Dimensions (h x d x w) |
155 x 195 x 365mm |
230 x 230 x 430mm |
| Temperature range |
4 to 40ºC |
4 to 40ºC |
| Maximum load |
0.5kg |
0.8kg |
| Speed |
1 to 100 oscil/min (increment 1rpm) |
1 to 100 oscil/min (increment 1rpm) |
| Tilt angle (reciprocation mode) |
1 to 90º |
1 to 90º |
| Turning angle (reciprocation mode) |
1 to 5º |
1 to 5º |
| Display |
2 x 16 character LCD |
2 x 16 character LCD |
| Timer, with automatic switch-off |
1 minute to 24 hours |
1 minute to 24 hours |
| Timer setting range |
1 to 250 sec |
1 to 250 sec |
| Timer (vibration mode) |
1 to 5 sec |
1 to 5 sec |
| Pause |
1 to 5 sec |
1 to 5 sec |
| External power supply |
Input AC 120-230V, 50/60Hz Output DC 12V |
Input AC 120-230V, 50/60Hz Output DC 12V |
| Power consumption |
8W (0.66A) |
18W (0.75A) |
| Input voltage |
12V dc |
24V dc |
| Weight |
1.8kg |
3.8kg |
'
'
'
