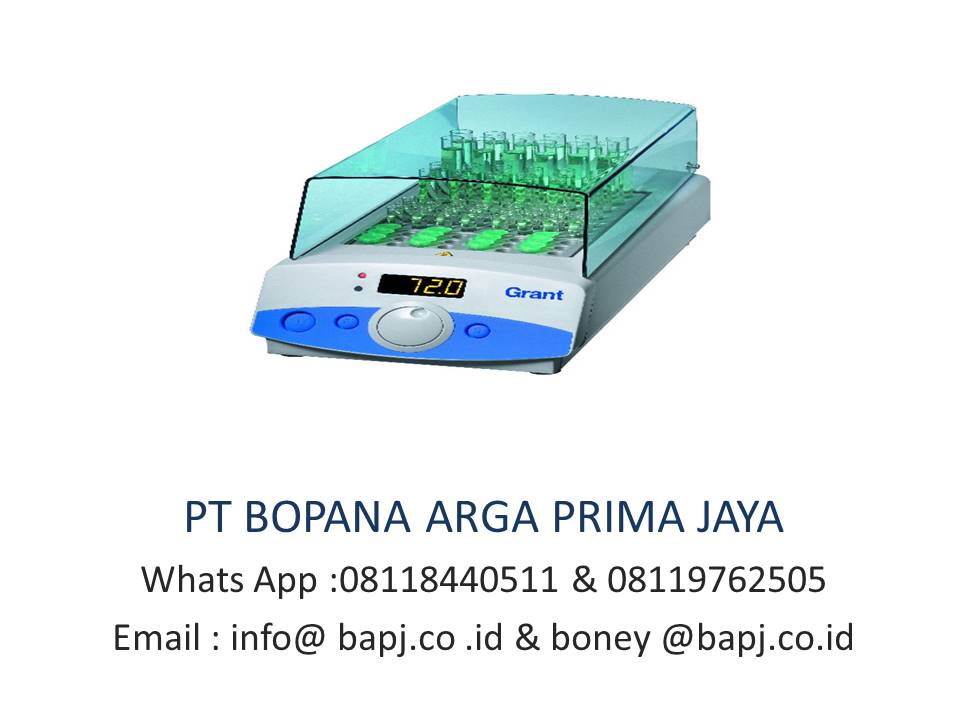

G GRANT QB Series Dry Block Heating Systems

The dry block heating systems combines digital temperature control for precision, and uniformity.

Applications

A source of precision temperature control for general, routing applications and sensitive analytical procedures including enzyme digestions, enzyme activity studies and nucleid acid hybridisations.

About

Designed for flexibility and efficiency the block heaters come with a choice of standard and custom blocks. The versatile dry block heater series are ideal for general sample heating, research or chemistry applications.

A versatile general purpose system with removable/interchangeable blocks and a comprehensive specification to suit most dry block heating applications in the laboratory.

Temperature range ambient +5ºC to 130ºC, with rapid heat-up time
Stability: ±0.1ºC
Uniformity: ±0.1ºC
Digital temperature control for optimal precision
Range of convenient features including alarms, single and dual point calibration, programmed start/stop, 'offset' for known sample temperature variation and choice of external or internal probes
External probe available for accurate in-sample or in-block temperature control
Includes block removal tool for easy and safe removal of blocks.

Products in the range

QBD1
QBD2
QBD4
QBH2

Specifications

High power heater for fast heat-up: 25ºC to 100ºC in only 15 minutes
Clear digital display - easy to read from a distance for instant reassurance
Convenient timer facility, with audible buzzer, for reaction timing and function timing, e.g. delayed heater switch-on/turn-off
Wide range of interchangeable blocks enables you to mix and match sample tubes as desired - extraction tool supplied as standard for easy and safe removal of blocks.
Optional safety cover - protects samples from contamination and users from accidental contact with hot blocks
Overtemperature cut-out protects your samples and your workplace
High quality, robust construction in streamlined coolwall aluminium and chemical-resistant plastic - durable in demanding environments
Compact footprint to optimise use of benchspace
Options include blocks for 0.2 ml tubes, strips and 96-well microtitre plates used in molecular biology and biotechnology applications (QBD2 & QBH2 only)
Three programmable temperature/time segments plus end-of program segments (QBH2 only)

QBD1	QBD2	QBD4	QBH2
Dimensions (h x d x w)	120 x 240 x 200mm	120 x 285 x 200mm	120 x 390 x 200mm	120 x 295 x 200mm
Temperature range @37°C	Ambient +5 to 130°C	Ambient +5 to 130°C	Ambient +5 to 130°C	Ambient +5 to 200°C
Stability @37°C	0.1±ºC	0.1±ºC	0.1±ºC	0.1±ºC
Uniformity within the block @37°C	0.1±ºC	0.1±ºC	0.1±ºC	0.1±ºC
Uniformity across similar blocks @37°C	0.2±ºC	0.2±ºC	0.2±ºC	0.2±ºC
Temperature display	•	•	•	•
Display resolution	0.1°C	0.1°C	0.1°C	0.1°C
Heat up time 25ºC to 100ºC	20 minutes	20 minutes	20 minutes	15 minutes
Three programmable temperature/ time segments plus end-of-program segments	-	-	-	•
Reaction timer, with audible buzzer	1 to 999 minutes	1 to 999 minutes	1 to 999 minutes	1 to 999 minutes
Function timer for delay of heater start-up/switch-off	Up to 72 hours	Up to 72 hours	Up to 72 hours	Up to 72 hours
Off-set adjustment	•	•	•	•
Two-point calibration of internal and external probes	•	•	•	•
High/low temperature alarms, settable to within 0.5ºC of set temperature	•	•	•	•
Fault indication display	•	•	•	•
Extraction tool for easy and safe block removal	•	•	•	•
Safety	Thermal fuse	Thermal fuse	Thermal fuse	Thermal fuse
Heater power - 230V	150W	300W	600W	300W
Heater power - 120V	100W	200W	400W	200W
Supply voltage	120 or 230V	120 or 230V	120 or 230V	120 or 230V
Weight	2.2kg	2.7kg	3.6kg	3kg
