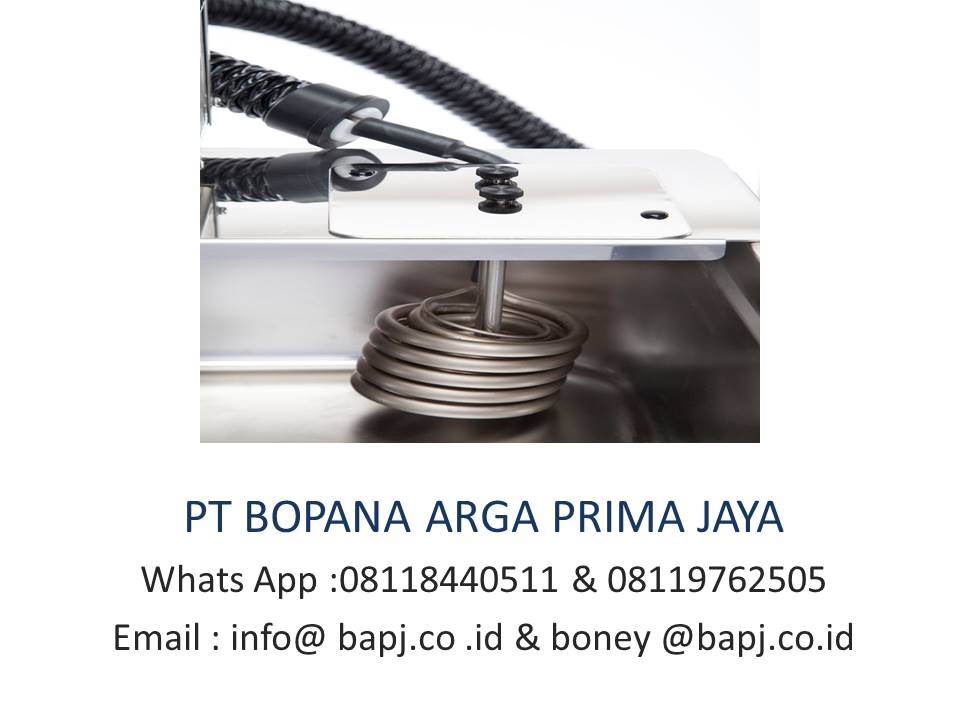

G GRANT The refrigerated immersion coolers consist of a cooling coil connected to a refrigeration unit by a flexible pipe.
Both units (C1GR, C2GR) offer a continuous heat extraction, with the bath control unit controlling the temperature. Compatible with all four Optima thermostatic controllers: T100 TC120, TX150 TXF200.
The cooling coil can continuously immersed in liquids up to 100°C with the cooler switched off and may be used to cool down from 100°C but it is not designed for continuous operation above 40°C.
- (C1GR) -10°C to 40°C
- (C2GR) -15° to 40°C
Products in the range
Specifications
|
C1GR |
C2GR |
| Temperature range |
-10°C to 40°C |
-15° to 40°C |
| Cooling power @ 20°C |
350W |
450W |
| Cooling power @ 00°C |
150W |
350W |
| Cooling power @ -10°C |
60W |
200W |
| Refrigerant |
R290 |
R290 |
| Overall consumption |
300VA |
500VA |
| Dimensions (d x w x h) |
460mm x 305mm x 225mm |
460mm x 305mm x 225mm |
| Weight |
17kg |
21kg |
| Flexible pipe |
925mm |
925mm |
| Coil Ø/l |
77/55mm |
77/55mm |
| Electrical supply |
120 (60 Hz) or 230 (50Hz) |
120 (60 Hz) or 230 (50Hz) |
'
'
'
