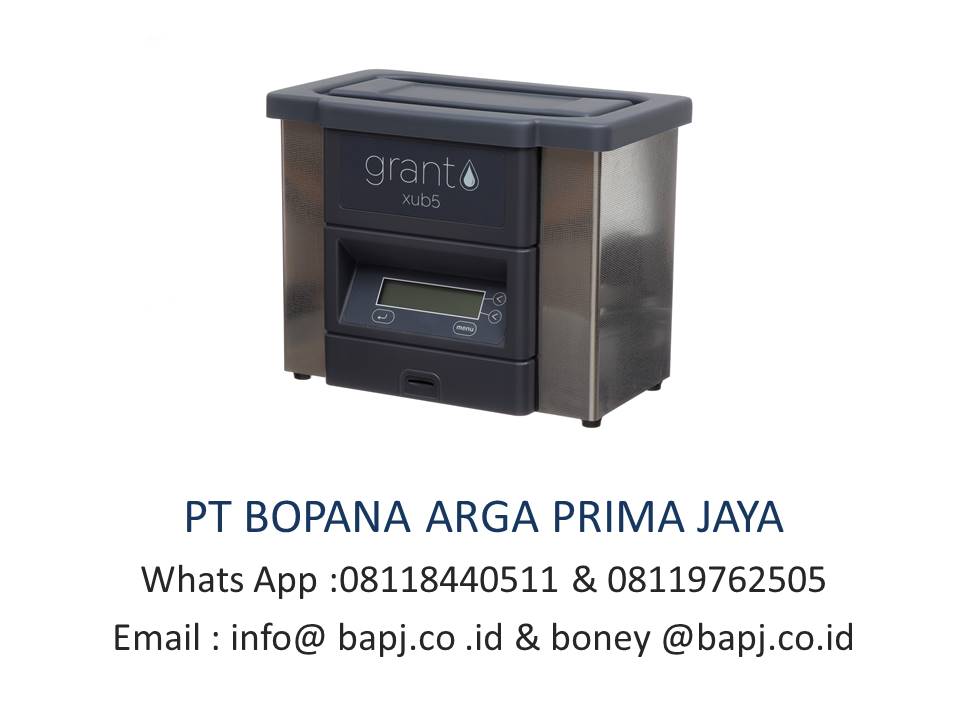

G GRANT XUB Digital Ultrasonic Bath Range
The XUB range of digitally controlled benchtop ultrasonic baths offer consistent and reliable performance in a variety of environments.
Applications
- Healthcare/clinical - the first stage of the decontamination process for reusable surgical instruments in dental, podiatry and general practice settings
- General use - glass, equipment, component cleaning, sonication of cytometer nozzles, dispersion and solubulisation
- Laboratories - cleaning of components, degassing fluids, mixing fluids and compounds, cell disruption, fluid dissolution
- Industrial - light manufacturing
- HPLC - degassing of solvents pre analyses
- Biopharm - dissolution of samples
Incorporating Frequency LEAP technology to ensure uniform levels of ultrasonic activity throughout the fluid, these baths offer high performance giving an accurate and precise ultrasonic process.
- Temperature range ambient +5ºC to 70ºC
- Frequency LEAP technology provides more homogeneous ultrasonic activity throughout the tank, reducing dead spots and standing waves
- Accurate process control of time, temperature, ultrasonic activity, degas and power
- Modern, sleek design with stainless steel basket, ABS plastic lid, M2 ultrasonic cleaning solution, SD card and drain tap included as standard
- Degassing function to remove small bubbles from liquid, reducing the overall time needed for ultrasonic operation
- A choice of 4 sizes
- Adjustable power that can be reduced from 100 to 50% in 5% increments
Products in the range
- XUB5 - 5L
- XUB12 - 12L
- XUB18 - 18L
- XUB25 - 25L
Specifications
|
XUB5 |
XUB12 |
XUB18 |
XUB25 |
| Dimensions (h x d x w) |
266 x 235 x 345mm |
365 x 330 x 342mm |
365 x 385 x 375mm |
365 x 385 x 546mm |
| Working capacity |
4.5L |
12.5L |
17.5L |
25L |
| Max capacity |
5L |
14L |
18.5L |
28L |
| Temperature range |
Ambient +5 to 70°C |
Ambient +5 to 70°C |
Ambient +5 to 70°C |
Ambient +5 to 70°C |
| Ultrasonic power |
100W |
200W |
300W |
400W |
| Ultrasonic power (per litre) |
22.2W |
16W |
17W |
16W |
| Operating frequency |
32-38KHz |
32-38KHz |
32-38KHz |
32-38KHz |
| Frequency LEAP |
• |
• |
• |
• |
| Heated |
• |
• |
• |
• |
| Digital LCD controls |
• |
• |
• |
• |
| SD port with SD card |
• |
• |
• |
• |
| Timer |
0-99 minutes |
0-99 minutes |
0-99 minutes |
0-99 minutes |
| Drain outlet BSP valve |
3/8'' |
3/8'' |
3/8'' |
3/8'' |
| Heater power - 230V |
150W |
300W |
450W |
650W |
| Heater power - 120V |
125W |
365W |
480W |
600W |
| Supply voltage |
120 or 230V |
120 or 230V |
120 or 230V |
120 or 230V |
| Weight |
6.4kg |
10.5kg |
12.6kg |
15.1kg |
'
'
'
