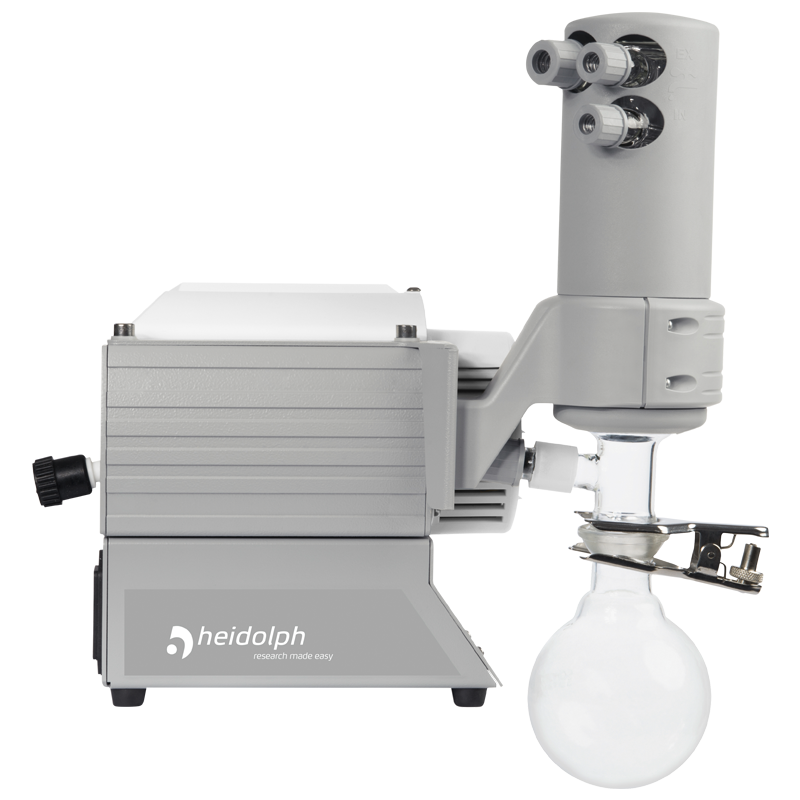

For Hei-VAP Expert Control / Hei-VAP Ultimate Control
Even if the gas ballast valve is open an excellent ultimate vacuum is reached when working with easily condensable vapors. This makes distilling high boiling point solvents such as DMF or DMSO possible at low bath temperatures. Condenser is not in scope of delivery.
Technical Data
Dimensions (W × H × D) : 236 x 167 x 196 mm
Protection class (EN 60529) ; IP 20
Connection : Coolant: hose nozzle DN 6-8 mm
Operating temperature : +10 - +40°C
Motor protection : temperature sensor on the pcb (current limitation)
Storage temperature range : -10 - +60°C
Power : Electrical: 0.16 kW
Maximum pumping speed : 1.7 m3/h
Ultimate vacuum (absolute) : without gas ballast: 2 mbar | with gas ballast: 4 mbar
Maximum permissible pressure : 1.1 bar
Permissible relative atmospheric moisture dur- ing operation (no condensation) : 30% - 85%
Maximum no-load speed : 2400 min-1
Inlet: hose nozzle DN 8 mm
Outlet : hose nozzle DN 8 mm
Maximum permissible range of supply voltage ( ±10% ) : 100-120 V~ 50/60 Hz | 200-240 V~ 50/60 Hz
‘
‘
‘
